12KV AWB CUT OUT FUSE DROP OUT FUSES

Product Overview

Description

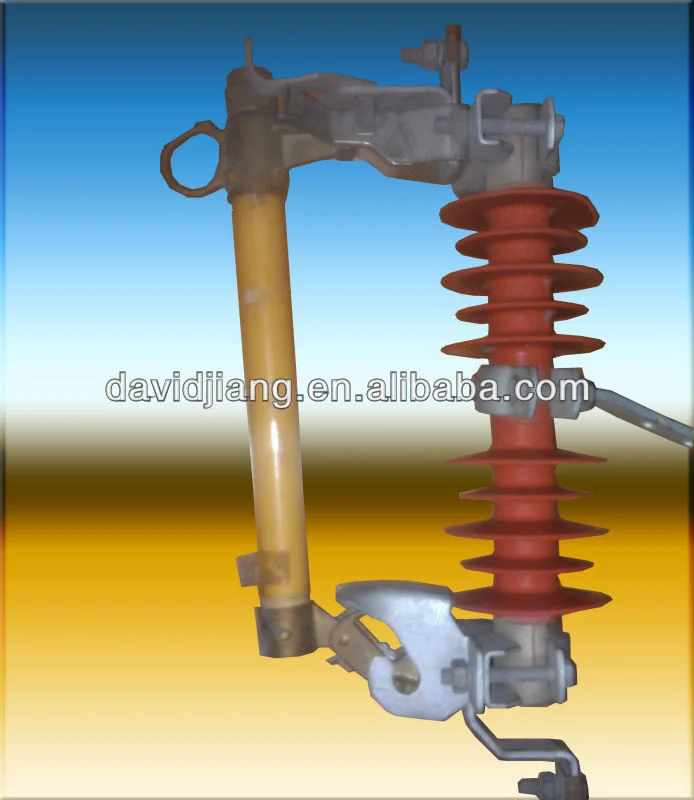

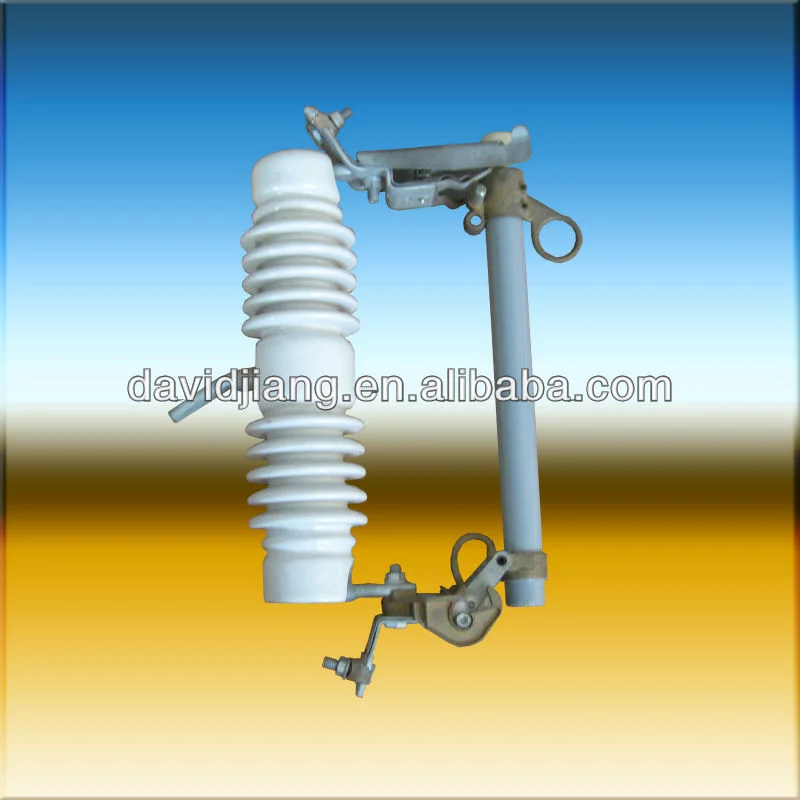

12KV CUT OUT FUSE





The Outdoor Dropout Fuse is implied to power system with voltage being 12kv or lower and frequency being 50Hz, used as overload and short protector of wire and power transformer as well as separating or closing rated load current.

Technical specification:
Rated voltage: 12kV

Rated current: 100A/200A
Breaking current: 8kA/12.5kA
Impulse voltage(BIL): 125kV
Power frequency withstand voltage: 42kV-49kV
Leakage distance: 372MM



Standards:

GB 15166.3

DL/T 640
