MX507 High Speed Router Woodworking Machine Made in Chine Wood Router With Tilting Spindle

Product Overview

Description

MX507 High Speed Router Woodworking Machine Made in Chine Wood Router With Tilting Spindle



MODEL	MX507
Max. Cutting Thickness	60mm
Working Table Size	800*600mm
Spindle Rotating Speed	8000/16000r/min
Max. Table Pecas	45°
Installed Power	2.3/3kw
Overall Size (L*W*H)	1420*800*1700mm
Net Weight	445kg

MX507  High Speed Router

MX507 High speed router is use lower model board to planner and reverse angle and drilling and mending edge and shaper (machining round hole and elliptical hole and abnormity hole and embossment for easy shaper). Be suit to the middle and heavy cutting machining.

Characters: The hand wheel control the worktable lifting, and through the pole lifting to reach a fixed height, but the pedal switch control the cutting thickness and set the limited position. When change the kind of product and the cutter, must again adjust the worktable height and limited position for the cylinder.

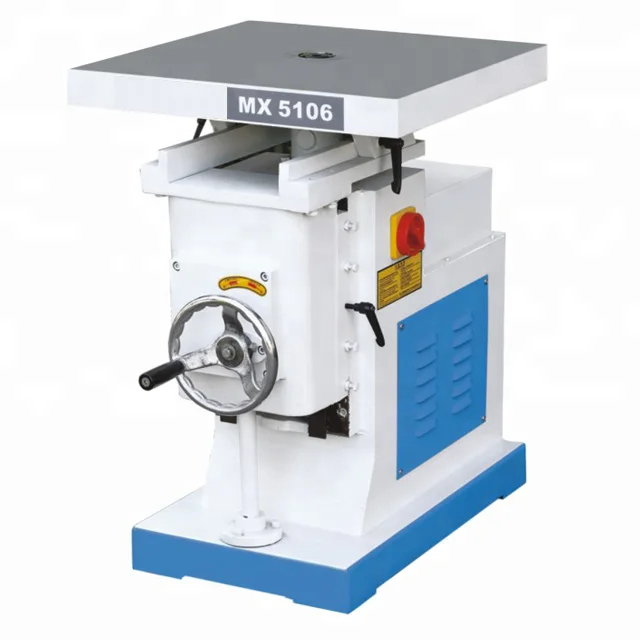

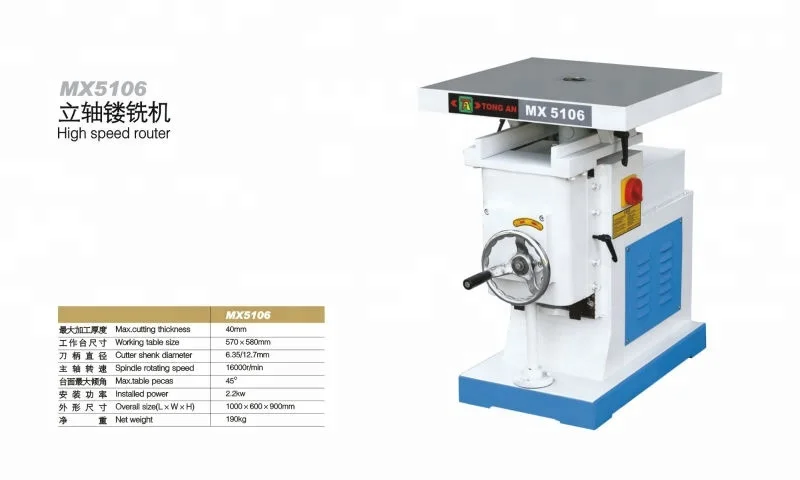

MX5106 High Speed Router

MODEL	MX5106
Max. Cutting Thickness	40mm
Working Table Size	570*580mm
Cutter Shenk Diameter	6.35/12.7mm
Spindle Rotating Speed	16000r/min
Max. Table Pecas	45°
Installed Power	2.2kw
Overall Size (L*W*H)	1000*600*900mm
Net Weight	190kg





Our Customers:





Our Big Family:











Warranty?

Mechanical parts one year,Electrical parts three months





Any aftersale support available?

Yes we have, Engineers available to service machinery overseas



Payment:

TT 30% advanced payment,70% balance remitted before shipment.







Shrink film,plywood case packing will have extra cost.











Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please let me know.
