DIN 6334 or ANSI standard steel Hex Coupling Nut
- Category: >>>
- Supplier: Ningbo Transhow Screw Factory
Share on (513789035):
Product Overview
Description

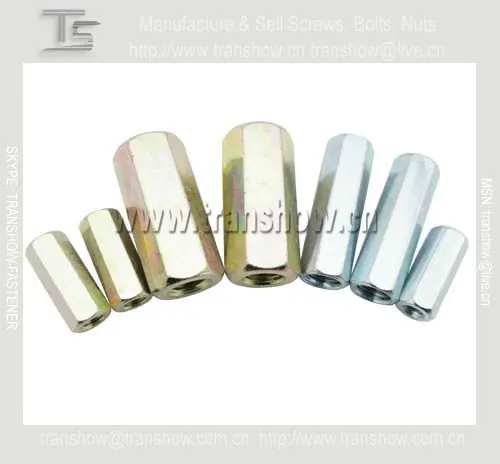

Zinc Plated Steel hex coupling nut
Full Metric Sizes and Inch Sizes Available!
Size from M6 to M36, 1/2 to 1-1/2 inch
Surface Treatment Options:
Zinc Plated (white zinc or blue zinc)
Yellow Zinc Plated
Hot dipper galvanized
Brass Coated
Zinc plate quality to 140 hours
Salt Spray Test
Dacro Plated

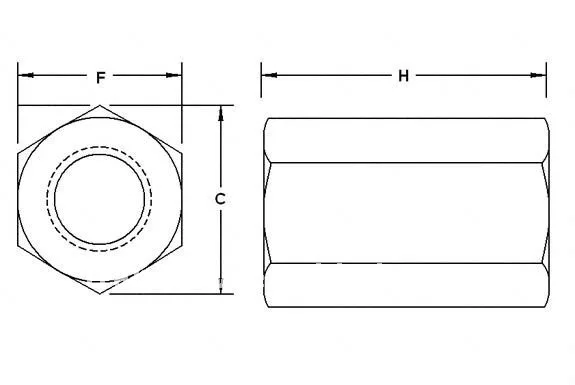

| d | s | e | m |
| M6 | 10 | 11.05 | 18 |
| M8 | 13 | 14.38 | 24 |
| M10 | 17 | 18.9 | 30 |
| M12 | 19 | 21.1 | 36 |
| M14 | 22 | 24.49 | 42 |
| M16 | 24 | 26.75 | 48 |
| M18 | 27 | 29.56 | 54 |
| M20 | 30 | 33.53 | 60 |
| M22 | 32 | 35.03 | 66 |
| M24 | 36 | 41.6 | 72 |
| M27 | 41 | 45.2 | 81 |
| M30 | 46 | 50.85 | 90 |
| M36 | 55 | 60.79 | 108 |

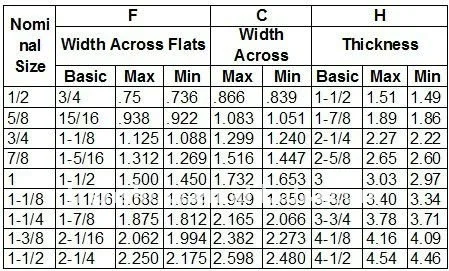

Inch Sandard Dimensions
Material Options:
Low Carbon Steel
Mid Carton Steel
Stainless Steel SS304, SS316
Brass (CuZn39Pb3)
Steel and Stainless Steel 304 Regular Supply
Size M8, M10, M12, M16, M20, M24
Goods in Stock for immediately shipment!
Bulk pack, poly pack,
small box, color box,
blister card options
