2 Ton hydraulic jack

Product Overview

Description

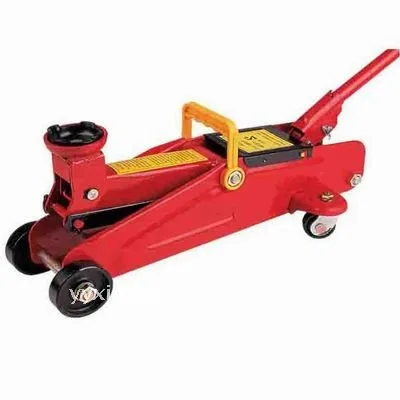

2-ton hydraulic jack



These hydraulic jacks are engineered for high quality performance and are bulit tough for power, strength, ease of handing and durability. The specially designed hydraulic systems protect jacks from damage via a by-pass valve for prevention of over-pumping and overload.



P.O.	PRODUCT DESCRIPTION
	N.W    (KG)	G.W    (KG)	LIFTING WEIGHT	LIFTING RANGE(mm)	MIN.H (mm)	MAX.H (mm)	DIMENSION  (mm)
YXT2Q-6.0	5.8-5.9	6.3	2T	155	140	295	385*195*140
	5.8-5.9	6.8	2T	155	140	295
YXT2Q-6.5	6.3-6.4	6.8	2T	175/185	125/135	300/320	416*190*121
	6.3-6.4	7.4	2T	175/185	125/135	300/320
YXT2Q-7.0	6.7-6.8	7.5	2T	175/185	125/135	300/320	416*190*121
	6.7-6.8	7.8	2T	175/185	125/135	300/320
YXT2Q-7.5	7.2-7.3	7.9	2T	205	135	340	440*192*135
	7.2-7.3	8.3	2T	205	135	340
YXT2Q-8.0	7.7-7.8	8.5	2T	205	135	340	440*192*135
	7.7-7.8	8.9	2T	205	135	340
YXT2Q-8.5	8.3-8.4	8.9	2T	203	127	330	450*196*140
	8.3-8.4	9.4	2T	203	127	330
YXT2Q-9.0	8.7-8.8	9.5	2T	230	140	370	480*195*140
	8.7-8.8	9.9	2T	230	140	370
YXT2Q-9.5	9.2-9.3	9.9	2T	230	140	370	480*195*140
	9.2-9.3	10.4	2T	230	140	370
YXT2Q-10.0	9.7-9.8	10.5	2T	228	127	355	480*195*140
	9.7-9.8	11	2T	228	127	355
YXT2Q-10.5	10.2-10.3	10.9	2T	228	127	355	490*210*140
	10.2-10.3	11.3	2T	228	127	355
LYXT2Q-11.0	10.7-10.8	12	2T	261	133	394	490*210*140
	10.7-10.8	12.5	2T	261	133	394
