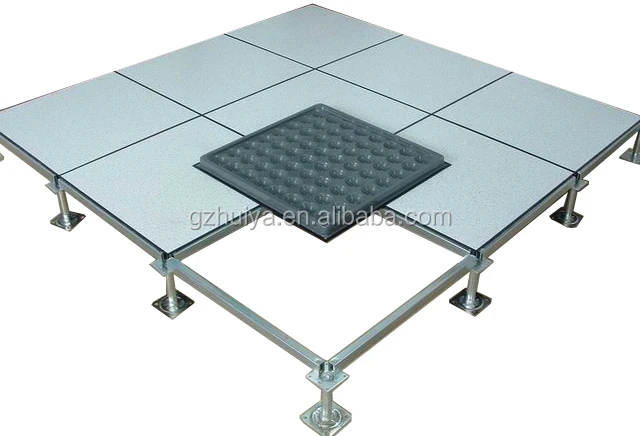

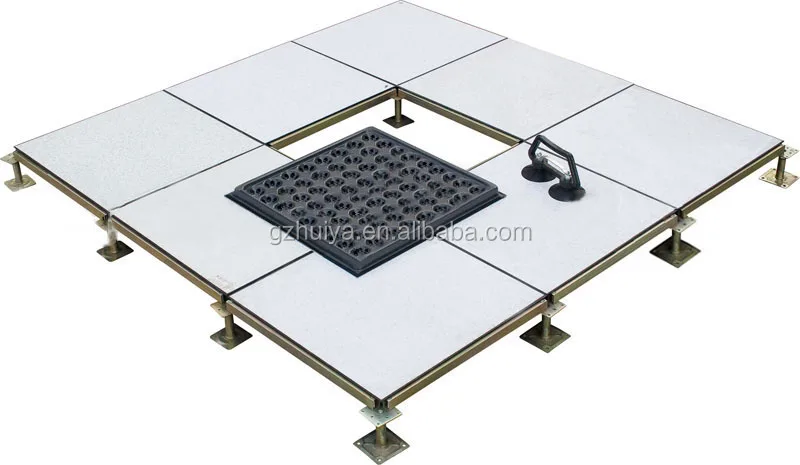

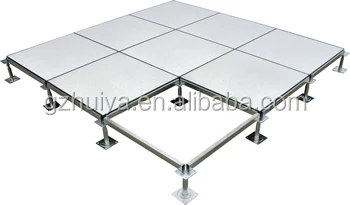

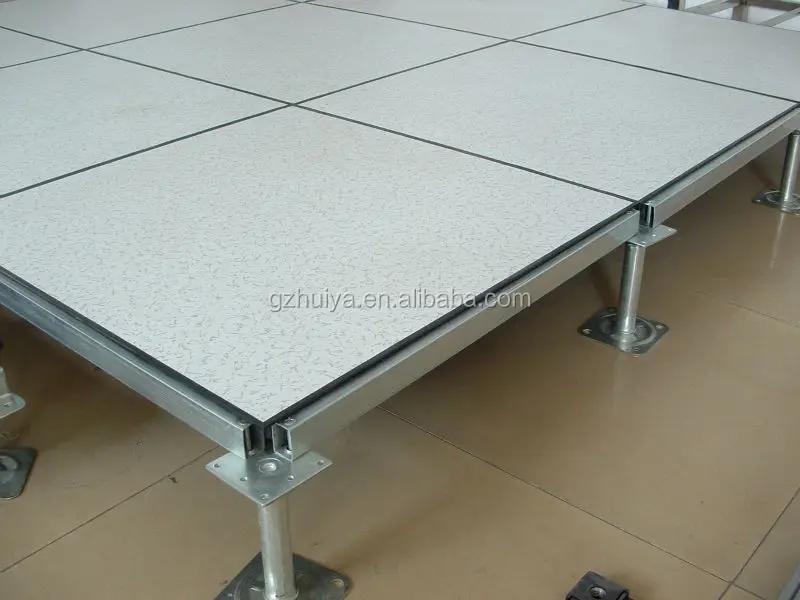

Anti static Steel Raised Access Flooring

Product Overview

Description

Steel cementitious raised floor panel is made of quality steel plate, which is stretched forming, point welded and plastic sprayed with bubble cement filler filled in its inner cavity. The fire-resistant decoration plates that can endure high temperature adhere to its surface with conductive chips embedded around it. The pedestals and cross beams are wholly plated with zinc and the height of pedestals is adjustable and can be self-locked.



Panel size: 600×600×30/35/40(mm)/ 610×610×30/35/40(mm)



Characteristics



Designed specially for computer room&clean room
Excellent rolling load & ultimate load performance
Light weight cementitious fill makes panels solid and quiet
Completely non-combustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
Wide range of finishes available

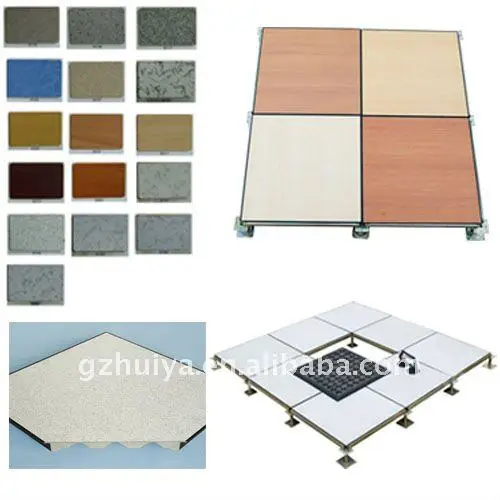

Floor Finish



High Pressure Laminate(HPL)



Vinyl tiles(conductive PVC)



Ceramic tiles/ porcelin tiles







Applications



Computer rooms, programmed control equipment rooms, electrical-controlled classrooms, places that have requirements of dust-proof and anti-static, and fields with aerial requirements.



HUIYA COMPANY is the fastest growing raised access flooring company in China,we have 2 factories to produce raised access flooring systems,one located in Guangzhou city and another located in Changzhou city,allowing HUIYA to service both large & small projects.



We have supplied and installed access flooring for a variety uses such as computer rooms, meeting rooms, data processing centres and offices.
HUIYA Access Floors is ISO 9001 & ISO14001 accredited for both its manufacturing and installation operations. All designed and manufactured to the latest industry standards and backed up by our industry-leading in-house product testing and technical support facilities.







We could produce: antistatic steel cementitious raised flooring(HPL raised flooring,PVC/Vinyl Raised flooring,Ceramic raised flooring),woodcore access floor,OA bare panel,perforated panel/air flow floor,calcium sulphate core raised flooring,Aluminum Solid Panel,pedestal,stringer











Why an Access Floor?







*          Construction programmes are reduced by at least two weeks per floor due to elimination of a sand cement screed.



*          As warm air rises, considerable cost savings are achieved by an underfloor air plenum delivering conditioned air exactly where it is needed - compared with the traditional uneconomic alternative of forcing conditioned air from the ceiling.



*          Maximum flexibility for the installation and reconfiguring of services to equipment and workstations a matter of hours.



*          In new construction the use of an access floor for total service distribution reduces the overall building height by about 13%. Or, for the same height, you can increase the number of floors.















Our products including:HPL raised access floor,PVC raised access floor,OA raised access floor,woodcore access floor,ceramic access floor,air-flow access floor,aluminum access floor and carpets.











What is High Pressure Laminate?







Designed Specifically for Raised Access Floors in Conjunction with Laminate Technologies.







High pressure plastic laminate is used in 90% of all computer room applications, and is the largest product used on factory laminated floor finishes.  Laminate is a one piece tile (24" x 24" / 600mm x600mm / 610mm x610mm) and unlike vinyl, will provide a uniform finish with no joints.  HPL has the advantage of not requiring wax or maintenance that could produce static problems in the data center.







Characteristics



20% Better wear surface results than competition.

Revolutionary trim that is printed into the  laminate under the high wear finish.

No routing or removal of high wear surface.





No exposed paper core to absorb dirt and moisture.

No recess to step down. Reduces chipping and caster noise. Eliminates dirt trap.

No surface applied paint or inks - cannot wear off.



Where HPL is recommended



Computer Room



Data Centers







HUIYA Laminate Performance Specifications



HPL Color Selection
