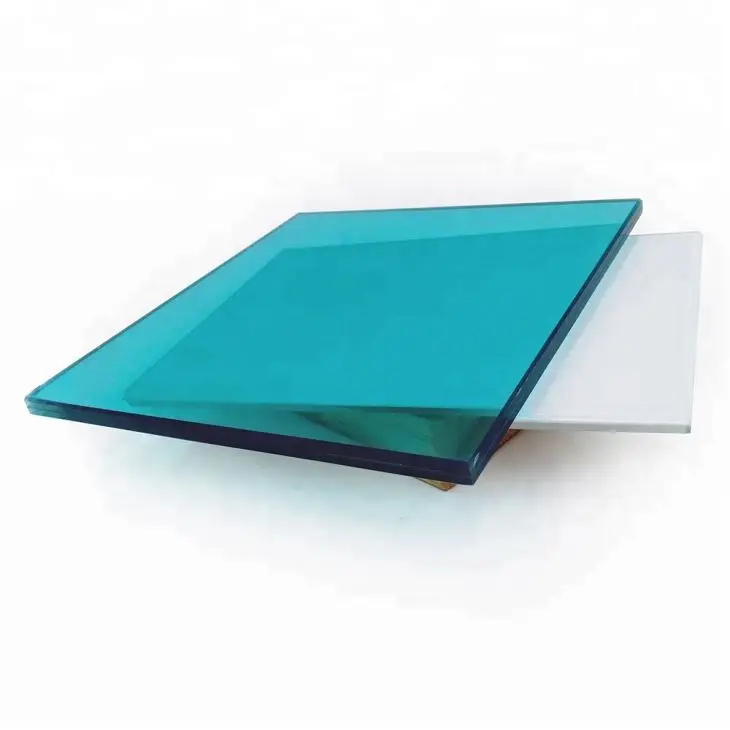

ocean blue laminated glass

Product Overview

Description



NOVAL LAMINATED SAFETY GLASS DESCRIPTION
Noval safety laminated glass are made up of two or more sheets of glass bonded together with a plastic interlayer.  After the plastic has been placed between the glass sheets, the whole assembly is subjected to heat and pressure. This results in the complete adhesion of the vinyl and the glass. In the event of breakage, the glass fragments remain bonded to the plastic interlayer. In a fully framed conventional installation the glass fragments are held together and the glass retains a residual strength while awaiting replacement.



NOVAL LAMINATED SAFETY GLASS FEATURES

Laminated glass is produced in an autoclave by compressing and heating two or more sheets of float glass and one or more sheets of polyvinyl butyral (PVB made by Dupont or Solutia).
1. Safety: If impacted by outside forces it shatters but never splinters protecting objects inside.
2. Good sound insulation.
3. UV-proof, laminated glass insulates most UV while allowing visible light to enter, thereby protecting furniture, carpeting and indoor decorations from aging and fading.
4. Bullet proof: High intensity glass can be made by adding more PVBS and glass of different thickness.
5. Except for transparent PVB, we offer milk white and other various colors to meet different tastes and needs.

NOVAL LAMINATED SAFETY GLASS APPLICATIONS
1. Places where safety glasses are required legally..
2. Bus station, Airport and others where sound-insulation is specially demanded.
3. Banks and show room



NOVAL COLORED/TINTED LAMINATED SAFETY GLASS





NOVAL LAMINATED SAFETY GLASS SPECIFICATION

Thickness:	2+0.38+2mm,3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm,6+0.38+6 mm, 8+0.38+8mm 8+0.76+8mm, 10+0.38+10, 12+0.38+12mm etc..
Color:	Clear, Milk white, Green, Blue, Bronze, Grey etc…
Size:	2440*1830mm, 3300*2134/2250/2440mm, 3660*2134/2250/2440mm, can be customized as per requests
Quality standard:	CE, ISO9001, BS EN12600

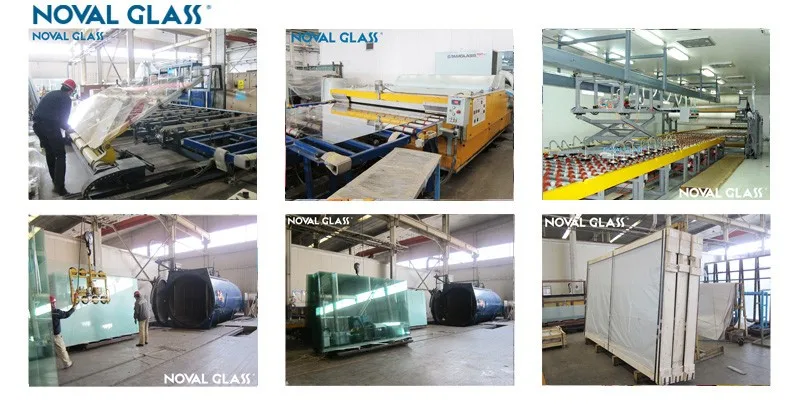

NOVAL LAMINATED SAFETY GLASS PRODUCTION LINE













NOVAL LAMINATED SAFETY GLASS WOODEN CASE PACKING





NOVAL LAMINATED SAFETY GLASS LOADING

Here below the loading for two tipical sizes 2440*1830mm &3300*2140mm













NOVAL GLASS ADVANTAGES

1). 16 years' experience specialized in glass manufacturing and exporting, since 1996.

2). Top quality glass with CE Certificate and PPG Technology, exporting to 75 countries and areas worldwide.

3). Full range of flat glass supply, offering one-stop purchase with most competitive prices.

4). Rich experience in value-added glass, such as tempering, cutting, bevel edge as per clients' requests.

5). Strong and fastened sea-worthy wooden cases, managing to reduce the breakage rate as low as possible.

6). Warehouses available at TOP 3 container seaports in China, ensuring fast delivery.

7). Professional and experienced sales team, offering personalized and excellent services.
