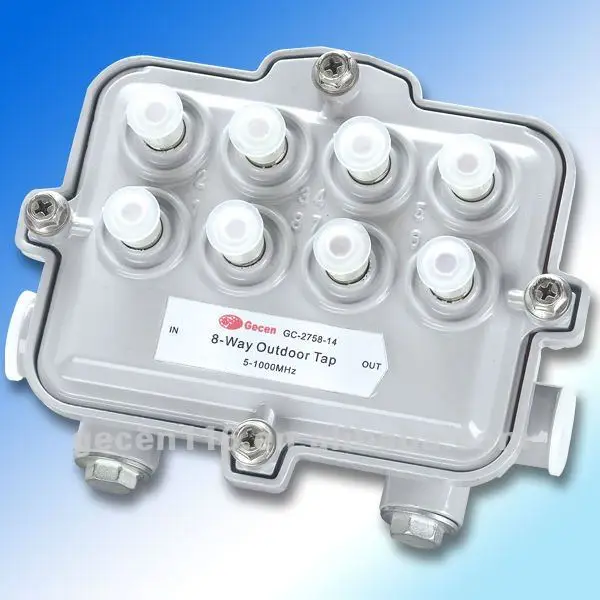

catv outdoor 8 Way Tap GC 2758 XX

Product Overview

Description

Features:   Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft   Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed   With isolation wire netting mounting to avoid RFI and good screening factor   Super-compact size, light weight and easy to attach   75Ohm,5/8-24UNEF Available to configure a KS-F rotary joint   Available to supply 5-1000MHz   IN-OUT current passing :6A AC/DC

GC-2758-XX    Specifications : Item Frequency Range GC-2758 -14 GC-2758 -17 GC-2758 -20 GC-2758 -23 GC-2758 -26 GC-2758-29 Insertion Loss (dB) 5-40(MHz) ≤3.5 ≤1.8 ≤1.5 ≤0.8 ≤0.8 ≤0.8 40-470(MHz) ≤4.2 ≤3.0 ≤2.2 ≤1.5 ≤1.5 ≤1.5 470-860(MHz) ≤4.5 ≤3.2 ≤2.8 ≤1.5 ≤1.5 ≤1.5 860-1000(MHz) ≤5.0 ≤4.5 ≤3.0 ≤2.0 ≤1.8 ≤1.8 Tap Loss Tolerance (dB) 5-40(MHz) ±1.0 40-470(MHz) ±1.2 470-860(MHz) ±1.5 860-1000(MHz) ±1.5 Mutual Isolation (dB) 5-40(MHz) ≥30 ≥30 ≥30 ≥30 ≥30 ≥30 40-470(MHz) ≥30 ≥30 ≥30 ≥30 ≥30 ≥30 470-860(MHz) ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 860-1000(MHz) ≥25 ≥25 ≥25 ≥25 ≥25 ≥25
