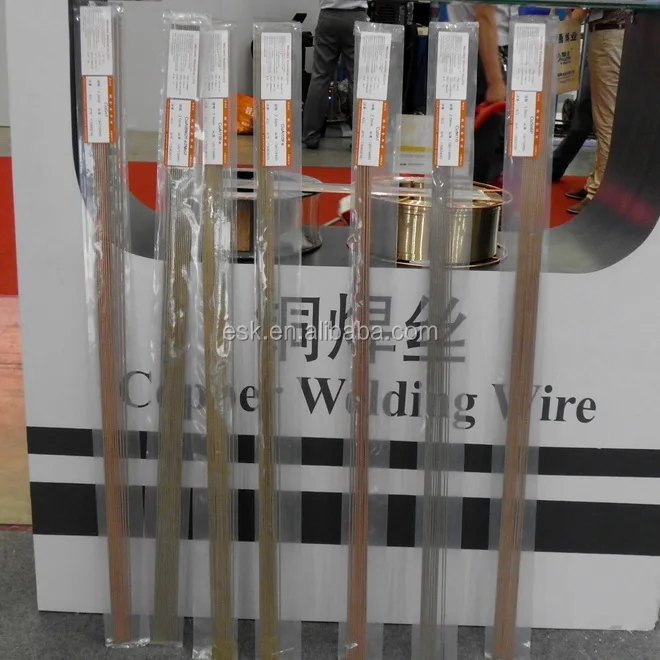

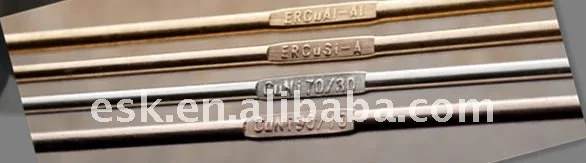

AWS A5.7 silicon bronze brazing welding wire TIG 3.2mm ErCuSi A
- Category: >>>
- Supplier: Taian E.S.K. International Co. Ltd.
Share on (515073256):
Product Overview
Description
Product Description
Name :Silicon Bronze | |||||||||||||||||
Physical & Mechanical Properties | |||||||||||||||||
Solids-Temperature 910°C Density 8.5kg/dm³ Elongation 40%/ Liquids-Temperature 1025°C Tensile Strength 345N/mm² Brinell Hardness 80HB | |||||||||||||||||
Packaging | |||||||||||||||||
TIG | Diameter | 3.2mm(1/8“) | Length | 914mm (36”) | Packaging | 5kg/box 25kg/ctn | |||||||||||
Intruduction | |||||||||||||||||
Best for joining and overlay welding of Cu-Zn alloy | |||||||||||||||||
| |||||||||||||||||
Standard | Class | Alloy | Cu | Al | Fe | Mn | Ni | P | Pb | Si | Sn | Zn | Other | ||||
GB/T9460 | SCu6560 | CuSi3Mn | bal. | max 0.01 | max 0.5 | max 1.5 | - | - | max 0.02 | 2.8-4.0 | max 1 | max 1 | max 0.5 | ||||
AWS A5.7 | C65600 | ERCuSi-A | bal. | 0.01 | 0.5 | 1.5 | - | - | 0.02 | 2.8-4.0 | 1 | 1 | 0.5 | ||||
DIN 1733 |
| SG-CuSi3 | bal. | max 0.01 | max 0.3 | 0.5-1.5 | - | max 0.02 | max 0.02 | 2.8-4.0 | max 0.2 | max 0.2 | max 0.4 | ||||
Applications :Joining and overlay welding of copper zinc alloys ,low copper materials,also for an excellent wear resisting overlay welding on low and unalloyed steel
Welding position :PA,PB,PC,PE,PF
Shielding gas : I1,I2,I3 (Argon,Helium or Argon/Helium mixtures)
Polarity :MIG = +,WIG ~
Available size: 1.6mm /2.0mm/2.4mm/3.2mm/4.0mm/4.8mm/6.4mm/
length available: 457mm/914mm
packing: 5kg/box, 25kg/carton
