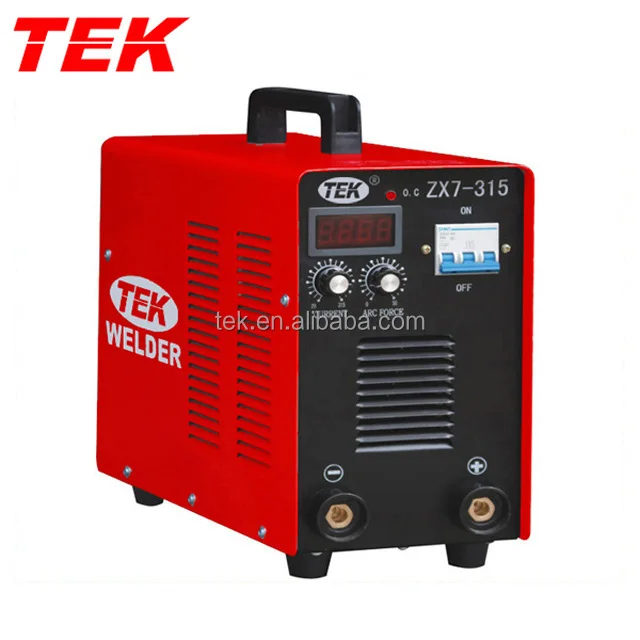

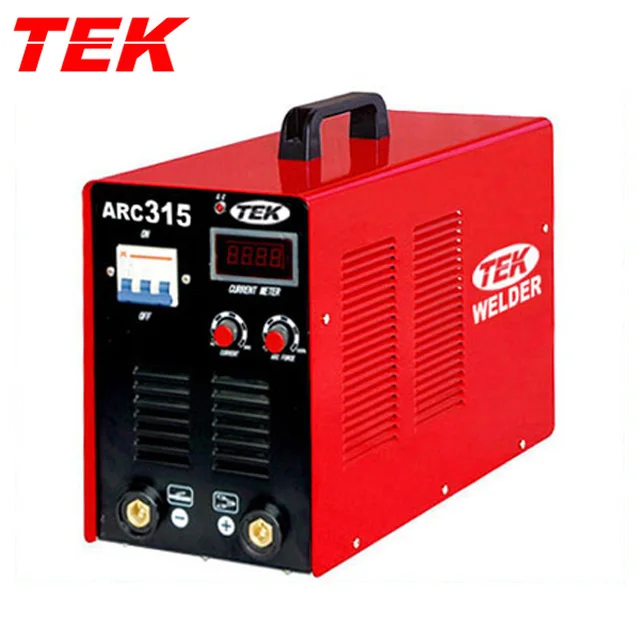

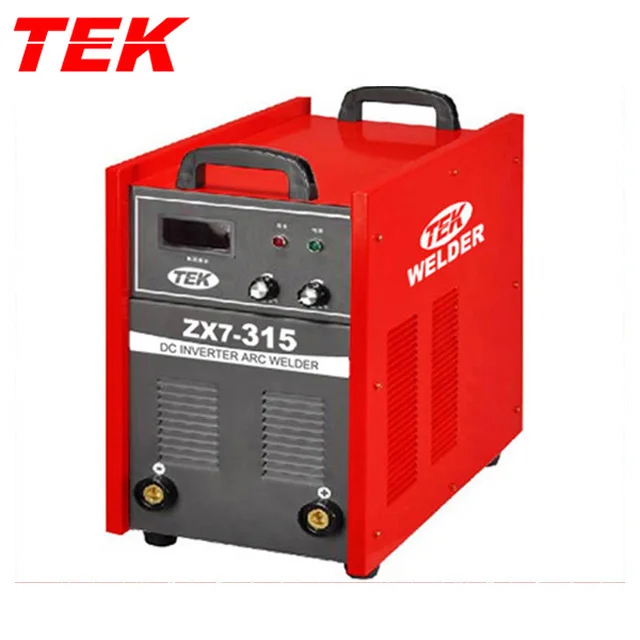

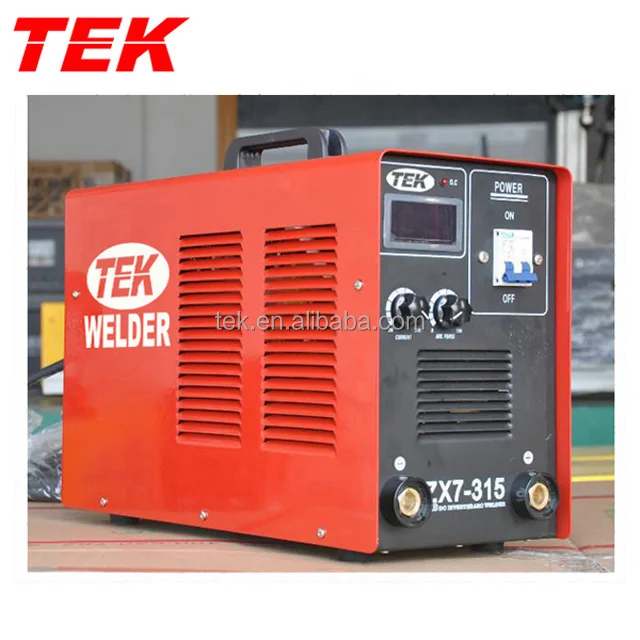

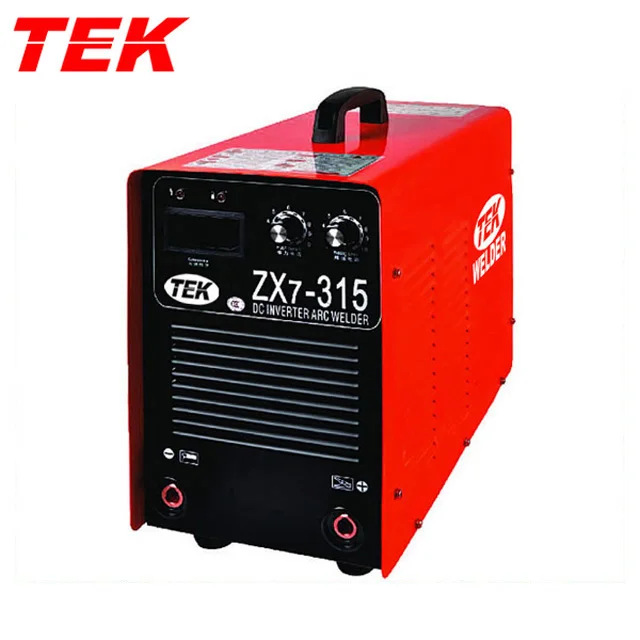

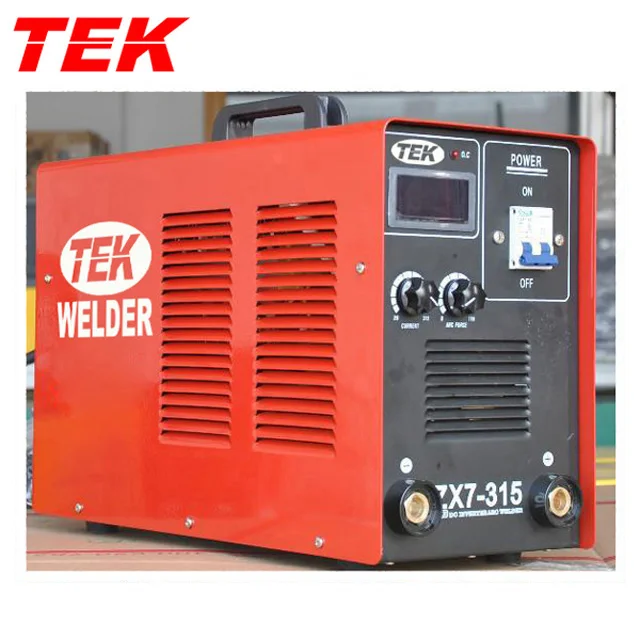

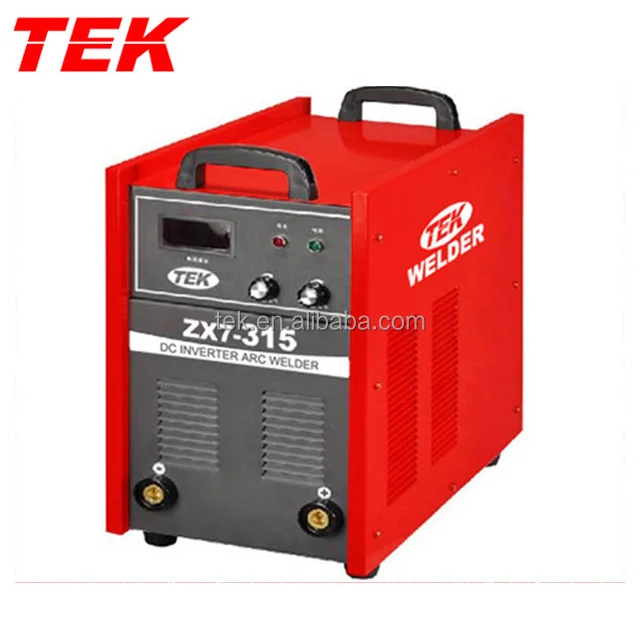

ZX7 315 MOS ARC Stick Rod Clamp Holder Welding Machine

Product Overview

Description

ZX7 315 MOS ARC Stick Rod Clamp Holder Welding Machine



1.Beautiful appearance and safety.
2. Compact in volume, light in weight and power saved
3. easy to arc initiation, resistance to interference , good force adjustment
4. Stable welding current, low welding spatter
5. Good welding result, deep welding pool, high intension
6. Protection for over voltage, over current
7. Automatic voltage pulsation compensation capability.
8. Applicable for various acid and basic welding electrodes
9. Down hand cellulose electrodes



TECHNICAL SPECIFICATIONS
MODEL	ZX7 315 MOS
AC Input Voltage	AC.Three phase 380V~415V
Rated input power capacity	13KVA
Input frequency	50/60
No-load voltage	72
Output current range	20-315
Rated output coltage	28
Duty cycle	60
No-load power	60
Efficiency	85
Power factor	0.93
Insulation class	F
Weight	20kg
Overall dimension	500*263*430mm
Protection class of case	IP21
Drive adjustment range	--
Welding thickness	2.0-12.0
