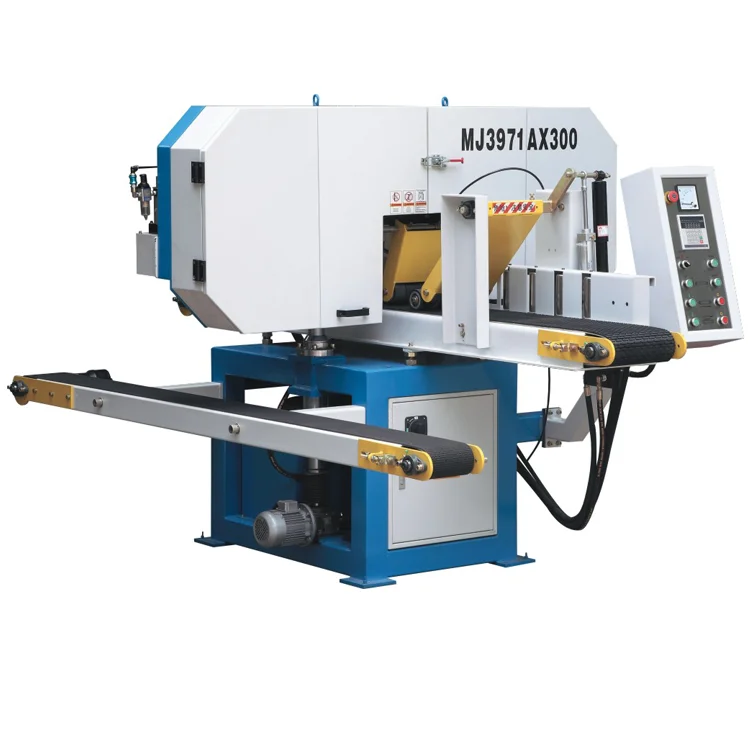

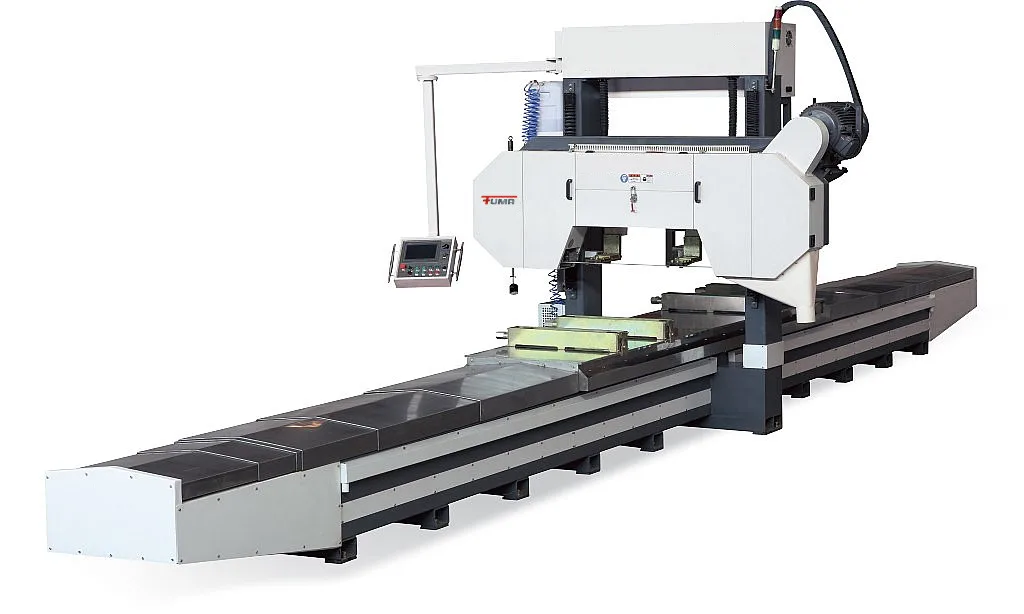

MJ3971A 650 Wood Blade Saw Machine Digital Display Timber Horizontal Band Saw Machine

Product Overview

Description

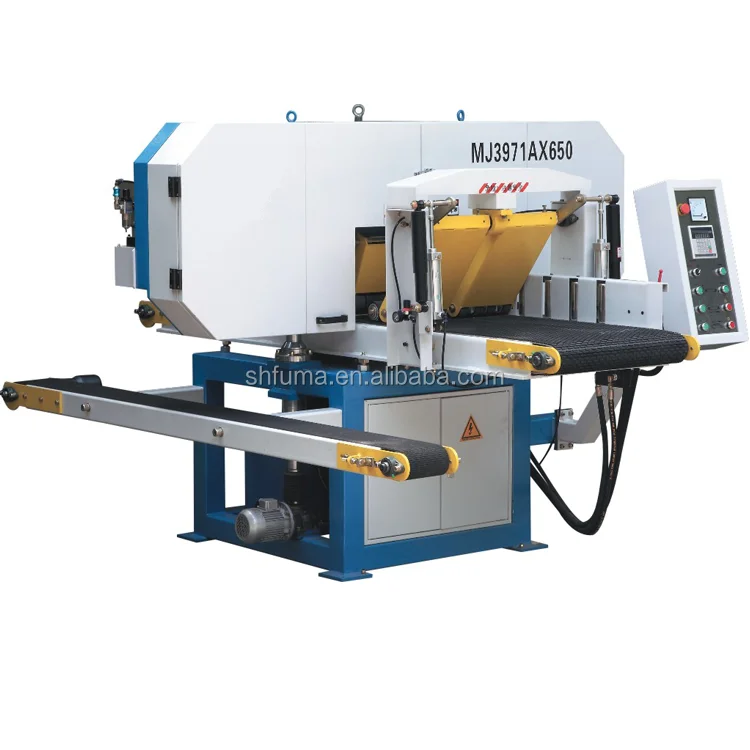

MJ3971A-650  Wood Blade Saw Machine Digital Display Timber Horizontal Band Saw Machine

MFeature

1,Equipped with personalized micro-computer interface , and digitalize thickness display for quick and accurate saw blade position , ensure a simple and convenient operation.

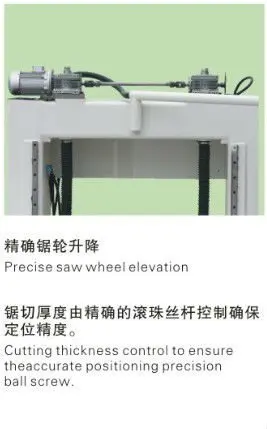

2,High-precision rotary encoders with precision ball screw , which achieves low noise , small torque fluctuations and long-time maintenance , also ensure the greater accuracy of sawing thickness.

3,Assisted material revert system , which can ensure a higher efficiency and more energy saved.

4,The PLC integrated control system , assures a simple and steady operation.

5,Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.

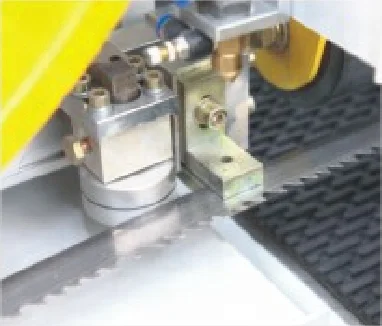

6,Specially designed with multi units of pinch roller setting , which ensure the work piece can be firmly pressed when cutting , it is also a guarantee of operation safety.

7,The thickness tolerance is only 1.1 - 1.6mm.

Model	MJ3971A-650	MJ3971A-400	MJ3971A-300
Max.processing size	650*300mm	400*300mm	300*300mm
Distance from saw blade to worktable	3-200mm	3-200mm	3-200mm
Width of conveyer belt	650mm	400mm	300mm
Saw wheel diameter	711mm	711mm	711mm
Feeding speed	0-18mm	0-18m/min	0-18m/min
Saw wheel lifting motor	0.18kw	0.18kw	0.18kw

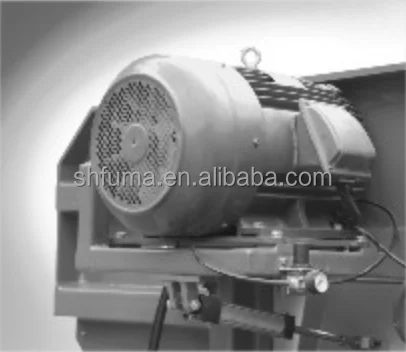

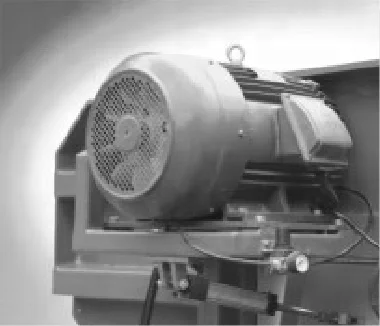

Saw wheel motor	18.5kw	18.5kw	15kw
Hydraulic pressure	55kg/cm²	55kg/cm²	55kg/cm²
Dust outlet diameter	2 *102mm	2 *102mm	2* 102mm
Saw blade size	4572*27*0.9mm	4572*27*0.9mm	4572*27* 0.9mm
Total motor power	18.68kw	18.68kw	15.18kw
Dimension of machine	3000*2480*2050mm	3000*2230*2050mm	3000*2230*2050mm
Weight	2100kg	1950kg	1800kg





Features:

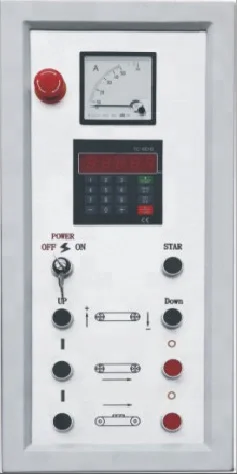

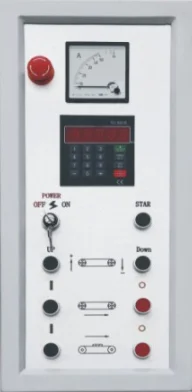

1.Interactive operator interfaces

2.Digitalize thickness display for quick and accurate saw blade position

3.Hydraulic blade straining auto compensation system ensures the blade always staying in the best tension states and extends the useful life of blade.

4.Assited revert system provides the best convenience for cutting

5.Automatic cutting system ensures the accurate cutting thickness

6.Saw wheel is made by medium carbon steel ,convex saw wheel avoids saw blade sliding off.

7.Water-cooling system provides high efficiency cooling and cleans wood dust on saw teeth

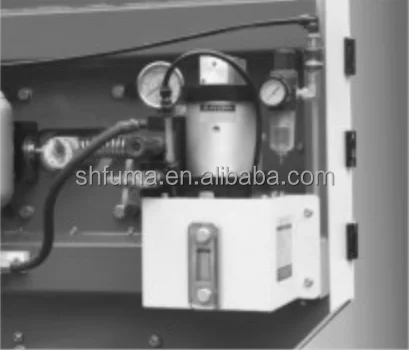

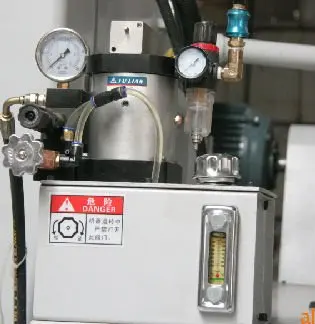

Automatic Blade straining System(Pneumatic&hydraulic combination)
