The drop depositor machine is controlled by PLC; and it adopts the step motors, cylinders, and the going-tracing device;

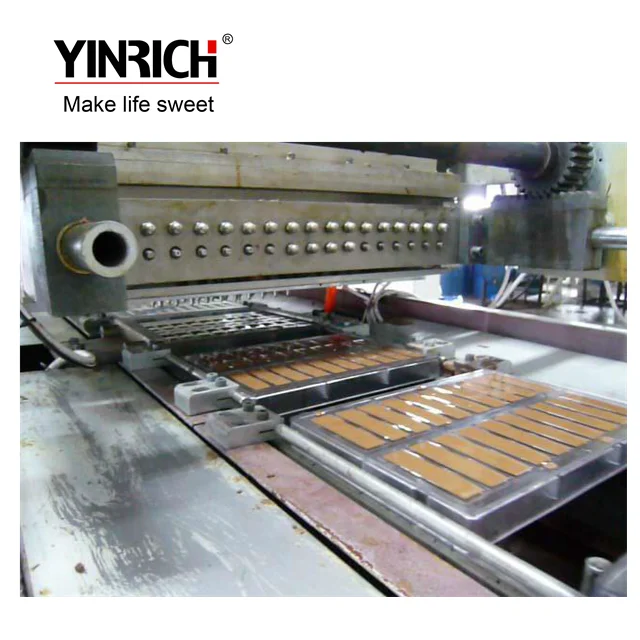

There are total 80 nozzles and pistons equipped in the depositing head;
The minimum & maximum size of the chocolate chip for each nozzles is 0.2g~2g(±0.05g)
The cooling system is adopted the recycled cooling air generated by the refrigerator system
Cooling tunnel:
Length of the cooling tunnel is 25m , equipped with 4 sets of chillers, Nontoxic food plastic conveyor ,thickness 2mm, the width of the cooling is 1000mm
Automatic correcting-position system. The whole cooling tunnel are made of stainless steel SUS304. Technical specifications:

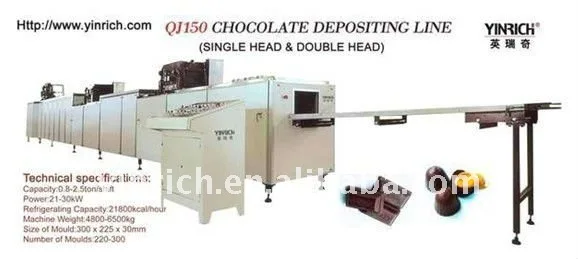

Model
QT150
Production capacity ( kg/h)
150~200kgs/h
Min and Max.weight of the product (g)
0.2~2g
Speed of stroke ( n/min)
10~20
Electric power needed
21kw/380V
Refrigerator
4sets of 5HP
Length of the cooling tunnel
25m
Width of the conveyor
1000mm
Motor fan power
2.2kwx2
transporting motor power
2kw
Main power
3kw
Compressed air consumption
Compressed air pressure
5m3/min
0.2-0.4Mpa
Conditions needed for the cooling system:
1.Room temperature(°C)
2.Humidity (%)
20~25
55
Dimension(LxWxH mm)
2800 x1100 x1850
Gross weight (Kgs)
Approx.6000
