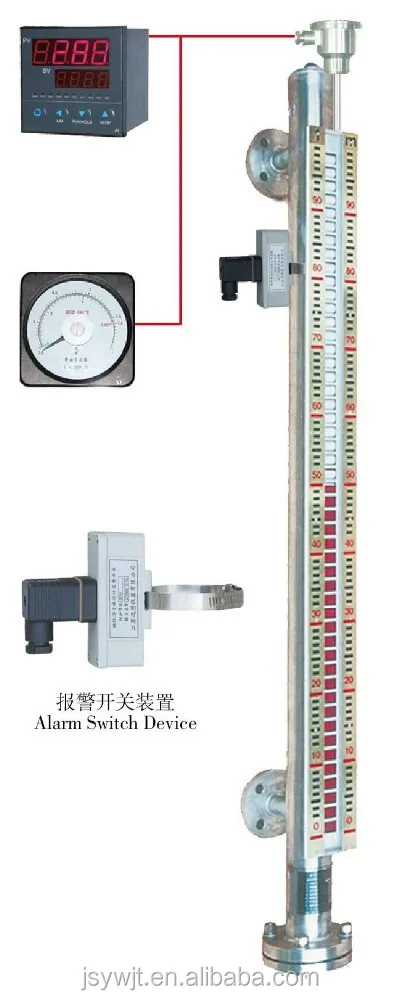

UHZ 511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter
UHZ-511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter
UHZ-511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter
UHZ-511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter
UHZ-511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter

UHZ 511Z Magnetic float type level gauge with optional alarm switch/display/level transmitter

Share on (51576111):


Price:$140.00 - $170.00

Quantity:


Product Overview

Description



Product Description

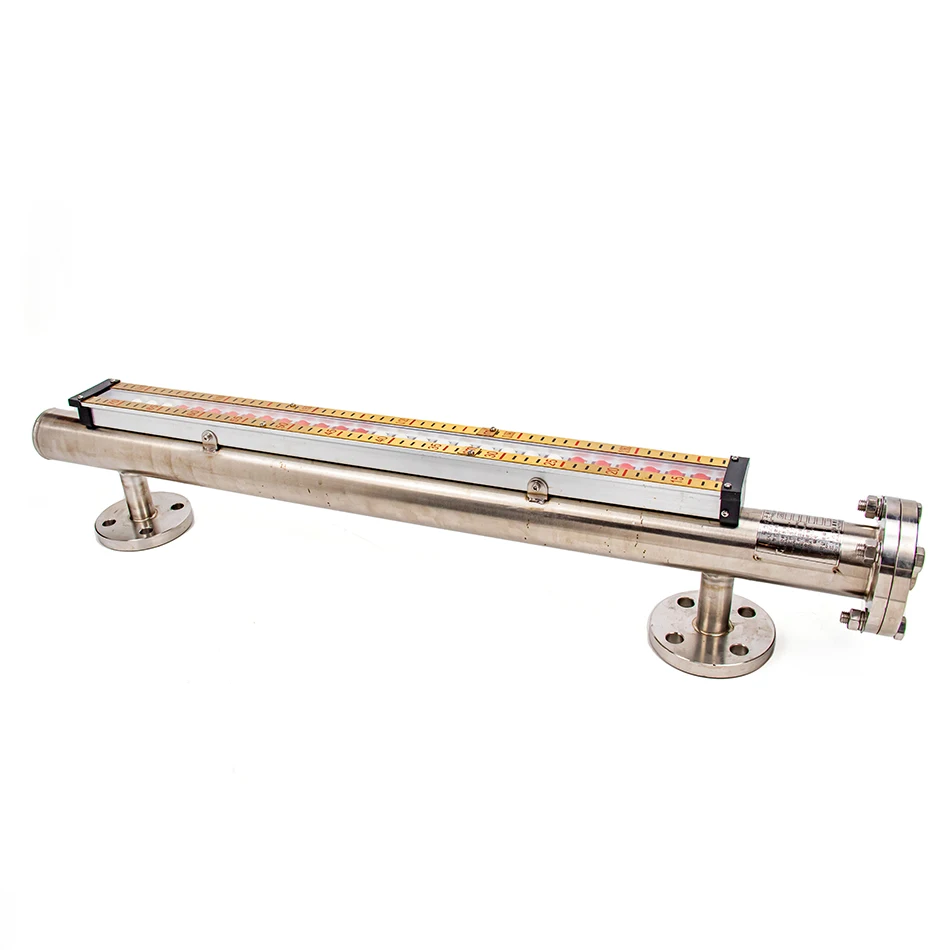

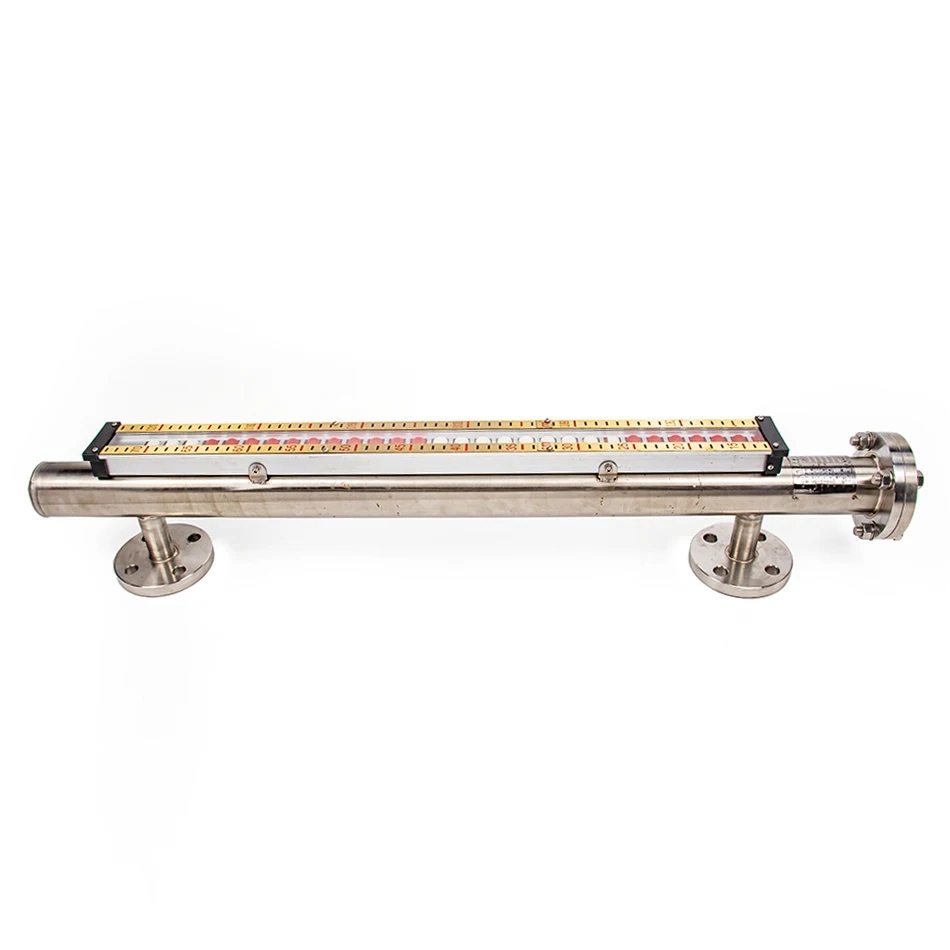

UHZ-511Z Magnetic float type level gauge can be used to measure and control level of the tank in ships and other industrial equipments.





Main Technical Specification






























































Model



UHZ-511Z



Installation



side mounting at normal temperature



Indication accuracy



±20mm



Nominal length



500~6000mm



Medium gravity



≥ 0.5



Working pressure



1.0 (1.6, 2.5)MPa



Medium temperature



≤120℃



Connection flange



GB2506-2005 DN20 PN16



Alarm switch (option)



AC220V 1.0A (hold type)



Output signal (option)



DC24V 4~20mA



Matched valve (option)



shutoff valve, self-closing valve,  ball valve



Adding -J



with alarm switch (SPDT hold type)



Adding -X



with output signal



Adding -XB



with output signal and ex-proof (Ex ia II CT6)






Sketches






Matched Valves






Packaging & Shipping


Packing: carton or wooden case


Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS





Certifications


Class certificate (Type approval): ABS, BV, CCS, DNV, GL, KR, LR, NK, RINA


YUANWANG CERTIFICATIONS
