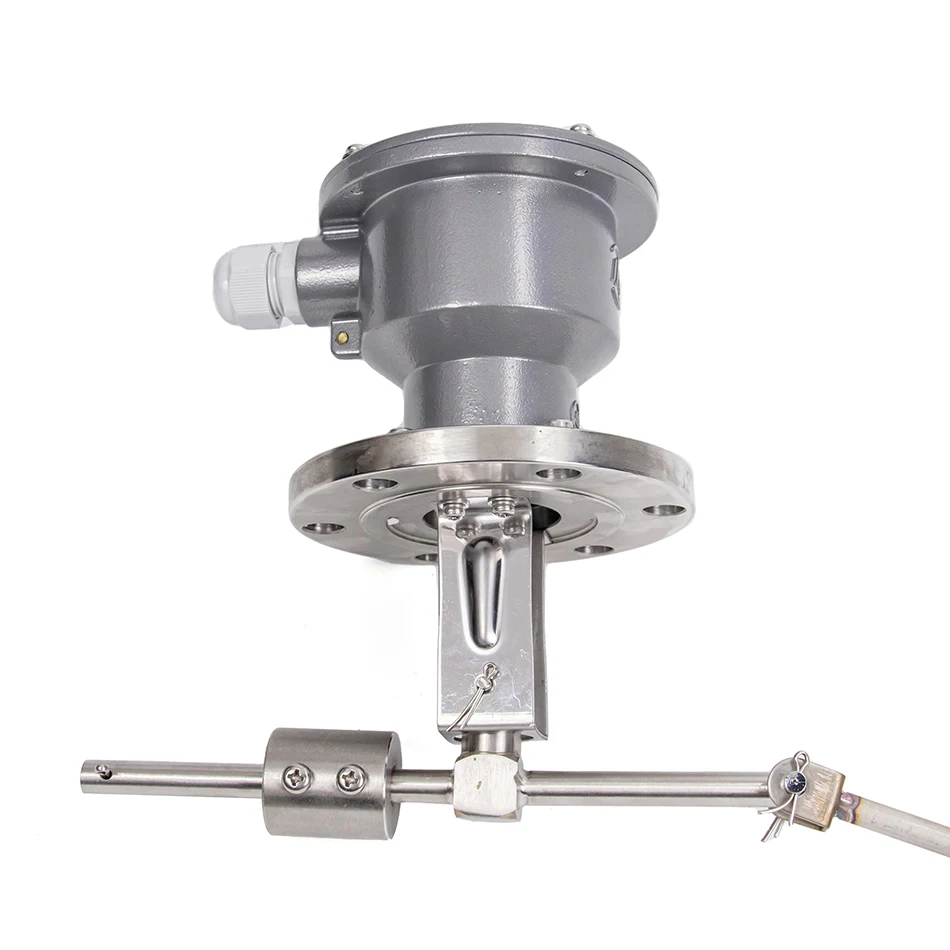

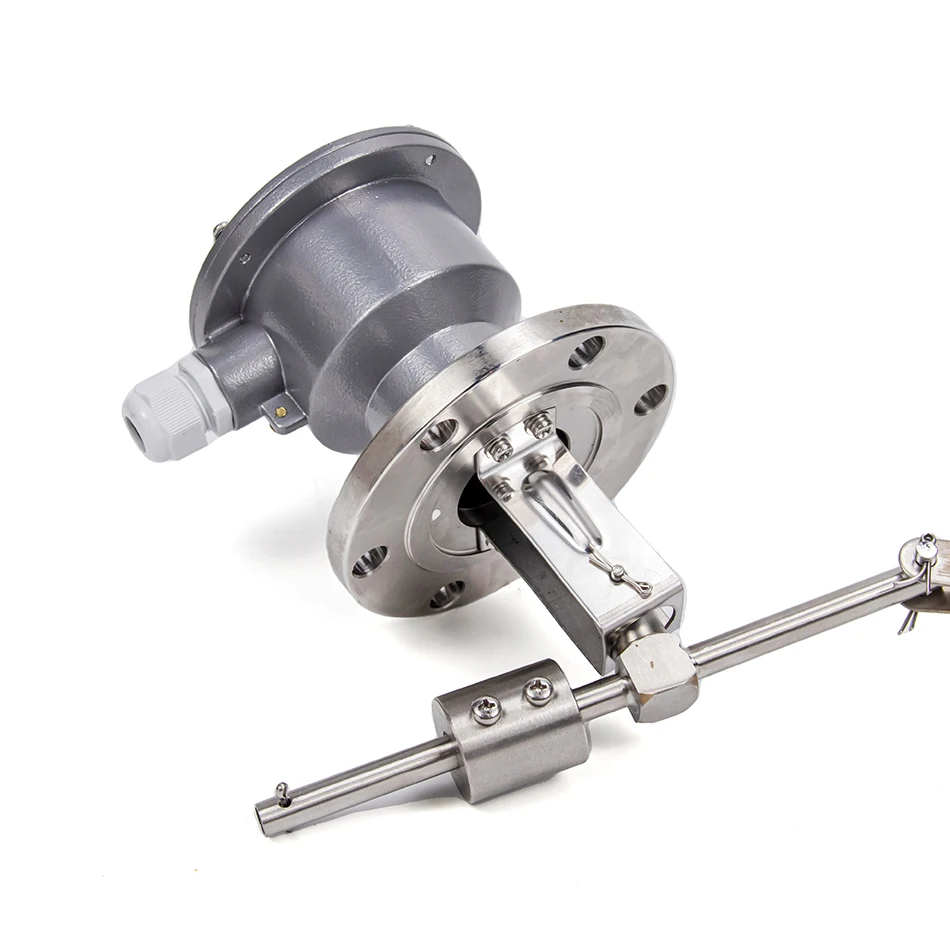

Float level switch with side or top mounting type for oil or water tank
- Category: >>>
- Supplier: Jiangsu Yuanwang Instrument Group Co. Ltd.
Share on (51576112):
Product Overview
Description
Product Description
UQK-01/02/03 type float level switch can be widely used on ships, chemical industry and other industrial equipments to control and alarm the level in tank by two-position type.
Main Technical Specification
Model | Control range | Installation type | PN | Medium temperature | Contact capacity | Float diameter | Protection class |

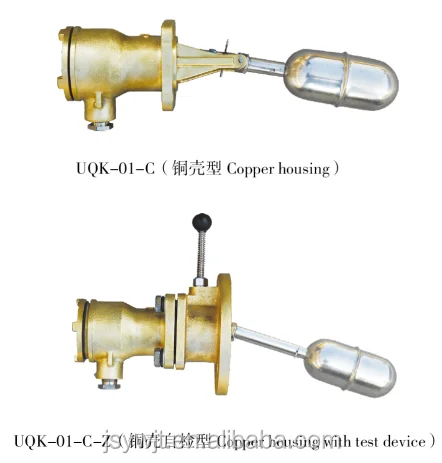

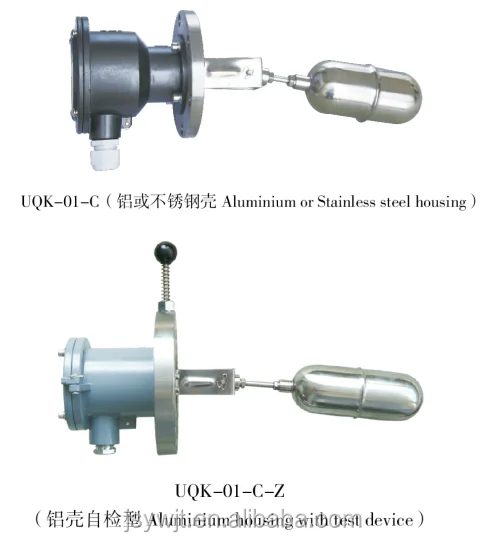

UQK-01-C | 10~30mm | Side, top | ≤1MPa | ≤120℃ | SPDT AC230V 1.5A AC250V 10A DC125V 0.6A 2XSPDT | 50mm 60mm 76mm | IP66 or IP68 |

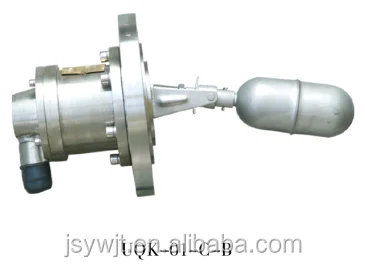

UQK-01-C-B (ex-proof type) | Side | ||||||
UQK-02-C | 25~550mm | Side | 50mm 60mm 76mm | ||||
UQK-02-C-B (ex-proof type) | Side | ||||||
UQK-03-C | 8~1000mm | Top | 76mm | ||||
UQK-03-C-B (ex-proof type) | Top |
Note: Please advise flange size, installation type (side or top mounting type), common or ex-proof type when place order.
Sketches
Flange size and Wiring diagram
Packaging & Shipping
Packing: carton or wooden case
Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS
