4 Horse Trailers 4Horse Floats
- Category: >>>
- Supplier: G & W World Trading Co. Ltd.G Ltd.
Share on (515795789):
Product Overview
Description

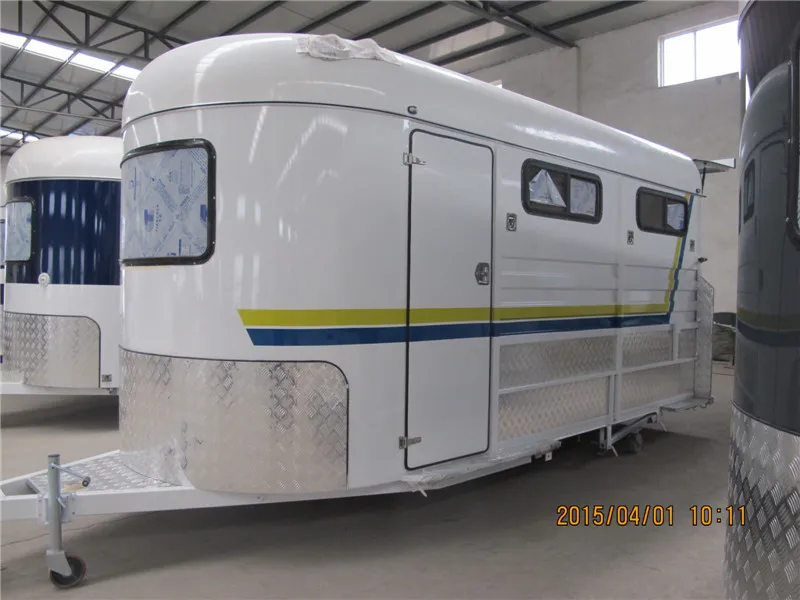

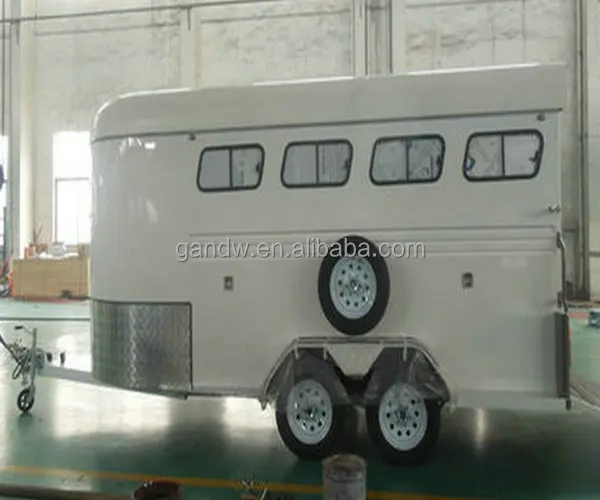

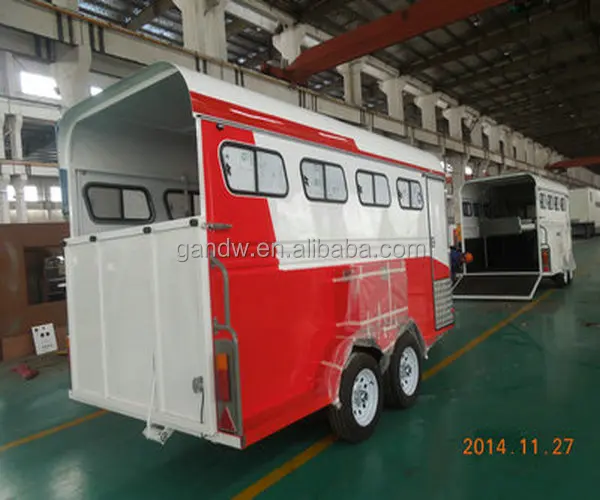

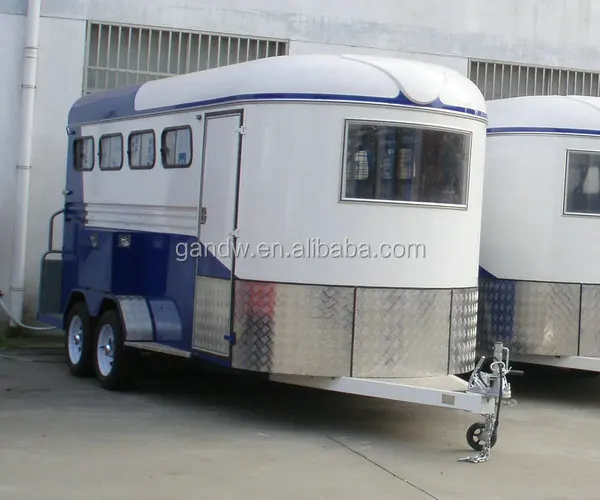

4 Horse Trailers 4Horse Floats
| Over Dimension | (LxWxH:mm):6300x2290x2662 |
| External Dimension | (LxWxH:mm) :4900x1830x2190 |
| Inner Dimension | (LxWxH:mm) :4850x1780x2120 |
| Horse bay | (LxW:mm):2060x660 |
| Trailer Weight | 1610KGS |
| Max Payload | 1920KGS |
| Body frame | Hot dipped galvanised chassis, galvanised frame and sheet panels |
| Roof | 3-4mm thickness fiberglass |
| Side wall | 6mm thickness rubber matting |
| Floor | 18mm thickness hard heavy duty plywood +9mm rubber matting |
| Chain | Safety chain D-ring, welded chain |
| Coupler | D 50mm load 3500kgs |
| Brake | Electric drum brake in one axle with hand brake system |
| Break away switch with 12V battery, handle winch with soft pads | |
| Suspension | 8 leaf spring |
| Light | LED light (rear lights 2pcs, internal roof light 1pc |
| outer view width lights 2pcs, licence board light 1pc | |
| Plug | 7 pin round or flat plug |
| Wheels & Tires | Five 195/70R 15C , 14x5J, including a spare tire |
| Bracket | Spare wheel bracket rear light bracket |
| Alu decoration | 1.5mm Alu decoration on front and on wheel |
| Button bar | Galvanised and powder coated button bar with soft PVC pads, its tube 80x40x2mm |
| Tie ring | Galvanised hook for tighting the horse (inside 4pcs, outside 4pcs) |
| Vent | Roof vent with five opening ways |
| Front window | Mould alu alloy front window (950x500mm) |
| Side window | Mould alu alloy side window 4pcs (300x600mm) |

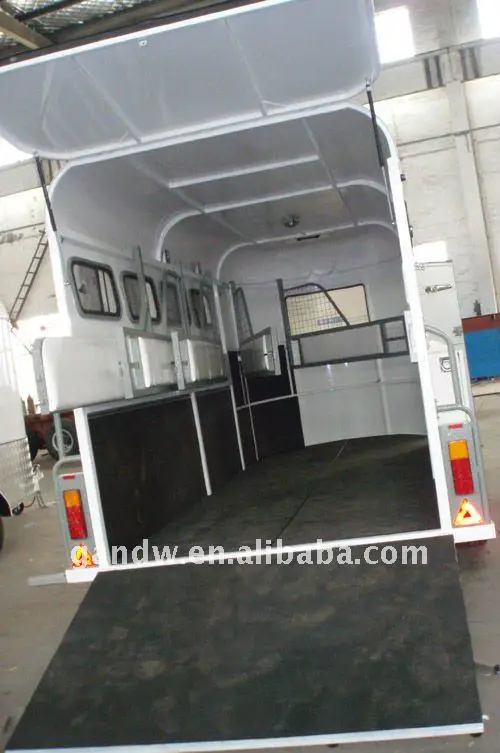

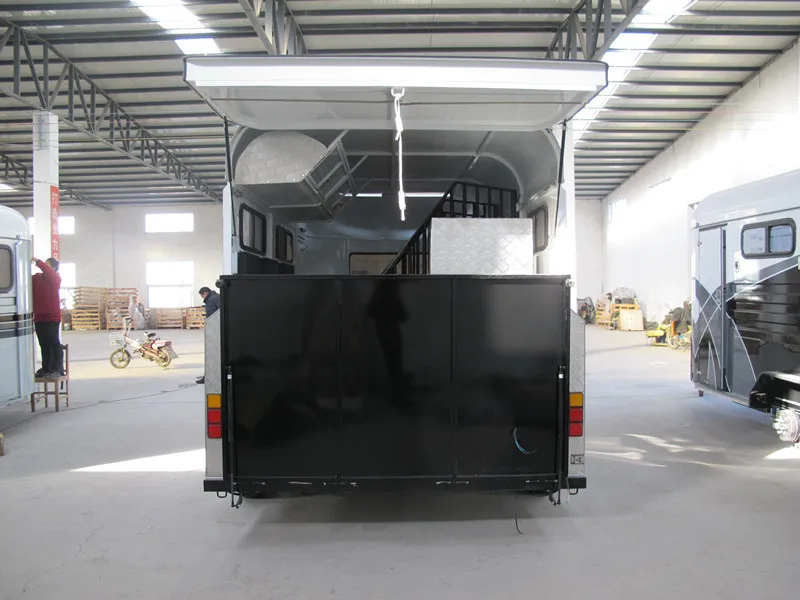

| Rear ramp door | Rear ramp door with spring support : 1600x1220mm |
| Side door | 1650x600mm |
| Option | Pop up door |
| Barn door with hinge | |
| Horse yard | |
| Luggage shelf | |
| Front tack box | |
| Swing out tool box | |
| Alloy wheel | |
| Folded Awning | |
| Gas strut for rear door | |
| Extension size available |
