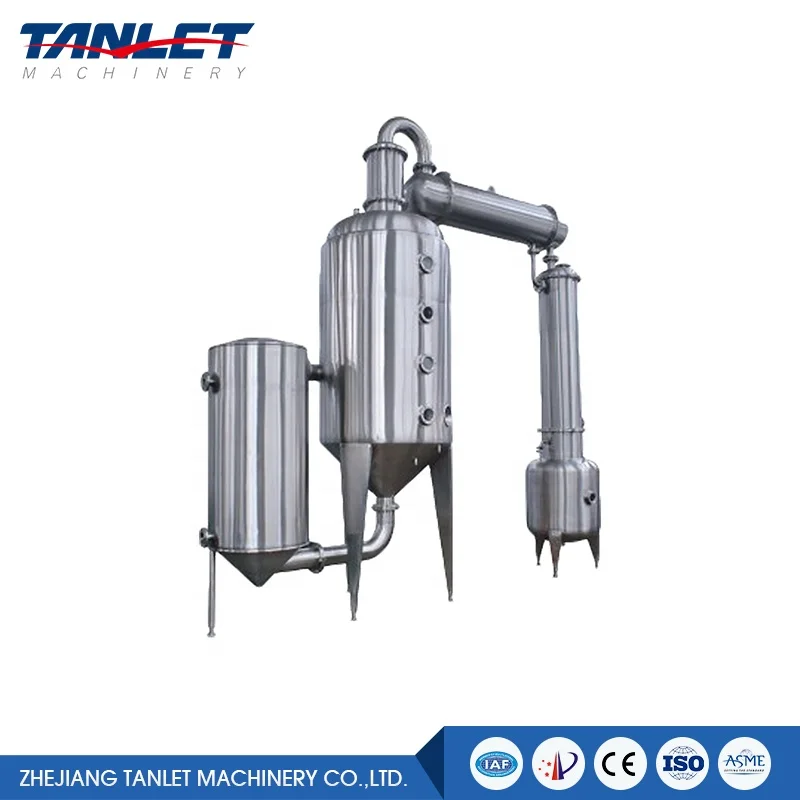

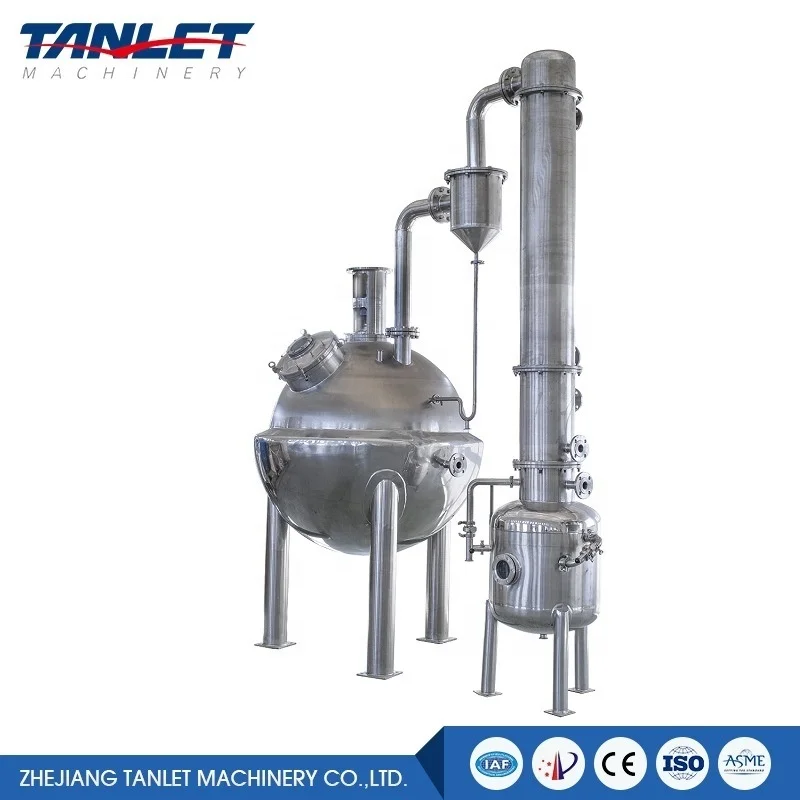

TL09 316 stainless steel chemical food herbs pharmaceutical machinery vacuum single effect evaporation concentrator
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (51584343):
Product Overview
Description
Product Description
stainless steel chemical food herbs pharmaceutical medicin industrial machinery plant
external cycling vacuum single effect evaporation concentrator
Usage:
The Vacuum Decompressing Concentrator is applicable in the vacuum concentrating of Chinese medicine, food and health products, the distilling alcohol recycling and some simple refluenceextracting.
Structure:Vacuum Decompressing Concentrator contains five parts of the concentrating tank, condenser, gas-liquid separator, cooler and liquid receiving barrel. The concentrator adopts the jacket structure, the condenser adopts row-tube type, and the cooler adopts coiled-tubetype.
Features:The contact part of the concentrator and the material is made of the stainless steel, having good corrosion stability. And it is equipped with automatic cleaningsystem, can feed automatically, so as to save the time and the energy, with high efficiency and good quality, according with the standard of GMP.
Main Parameters
| Model | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
| Evaporation Capacity (kg/h) | 500 | 1000 | 1500 | 2000 |
| Recycled Alcohol Density (%) | 80~85 | |||
| Steam Pressure (Mpa) | 0.03~0.09 | |||
| Vacuum Degree (Mpa) | -0.05~-0.08 | |||
| Evaporating Chamber Volume (m3) | 1.0 | 1.5 | 2 | 2.5 |
| Liquid receiver Volume (m3) | 0.3 | 0.5 | 0.8 | 1.0 |
| Steam Cost (kg/h) | 520 | 1050 | 1550 | 2100 |
| Water Cost (T/h) | 7 | 10 | 15 | 20 |
| Heating Steam Inlet (mm) | 40 | 50 | 80 | 100 |
| Cooling Water Inlet & Outlet (mm) | 40 | 50 | 65 | 80 |
Brief About Us
Here is a brief on us:
- Since 1998, with 20+ years of experience
- 3 factories totally covered 40,000+sq.m.
- Annually sales $31.5million, still keeps growing.
- 30+ R&D, 200+ employees professional service.
- Leader of this industry in nationwide.
Click here to see more products Click here to contact us
Click here to learn more about us Click here to see more Project Case
=======↓ ↓ ↓ keep moving down, more surprises await! ↓ ↓ ↓ =======
Company Information
FAQ
| Q: Are you manufacturer or trading company? |
| A: TANLET is a professional manufacturer. |
| Q: Where is your factory located? |
| A: All of our three factories are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hours to Guangzhou, 2.5 hours to Beijing. |
| Q: What is your business scope? |
| A: Chinese Herbal, Western Medicine, Food, Beverage, Dairy and B |
| Q: How could we confirm the details of the products? |
| A: TANLET will provide all the drawings for you to confirm. |
| Q: Will you charge us for drafting if we have special requests? |
| A: No, we will not. Free of charge to make a draft or offer. ODM |
| Q: How long the warranty will be? |
| A: 1 Year warranty. |
| Q: How about the installation? And what if the machine goes down |
| A: Yes, we will do that. There are two options: |
| a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. |
| b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side. |
| Q: Do you take L/C? |
| A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
| Q: Can we become your distributor in our country? |
| A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
