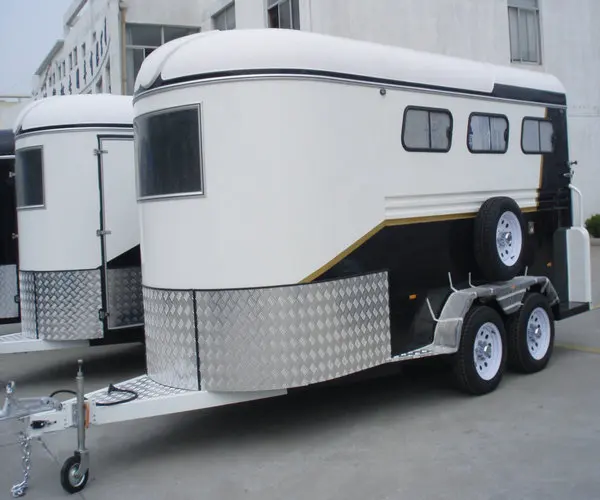

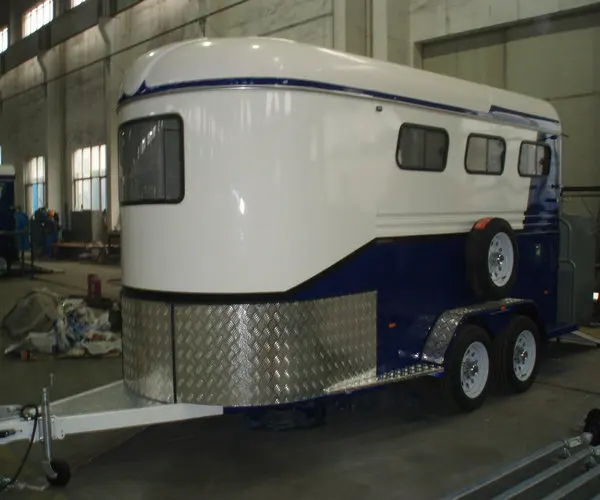

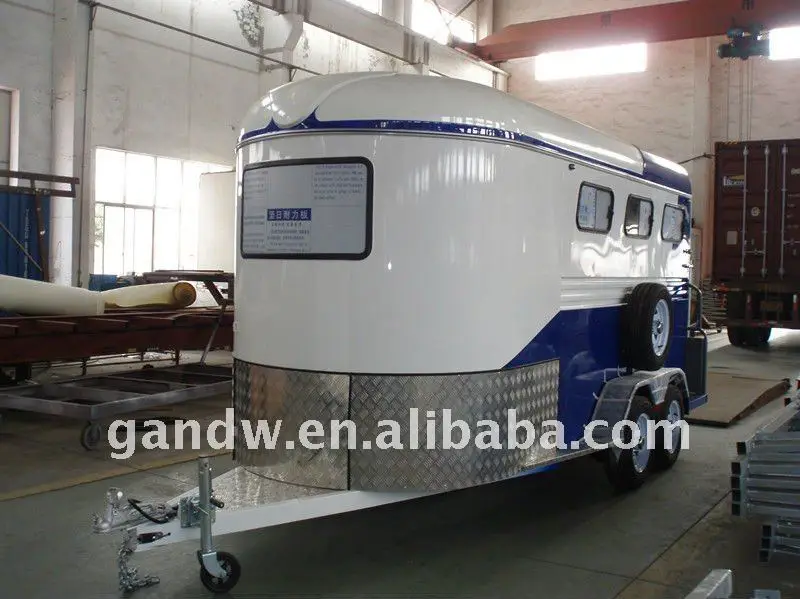

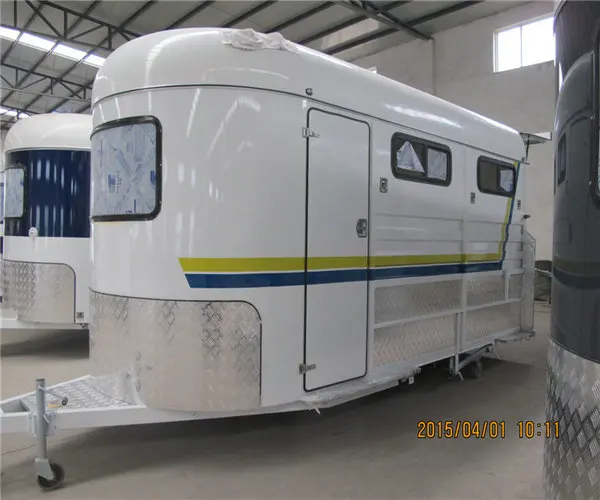

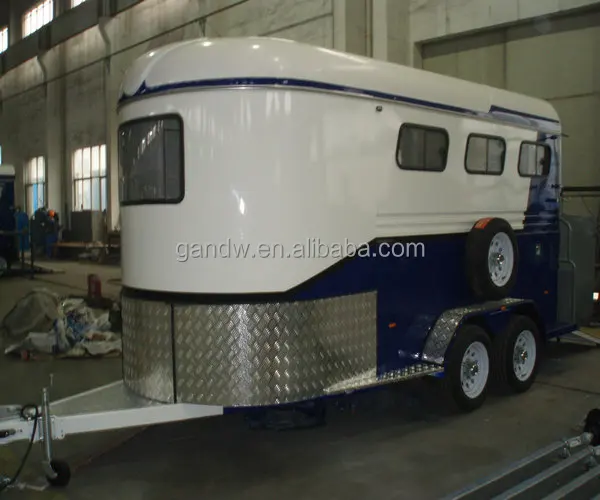

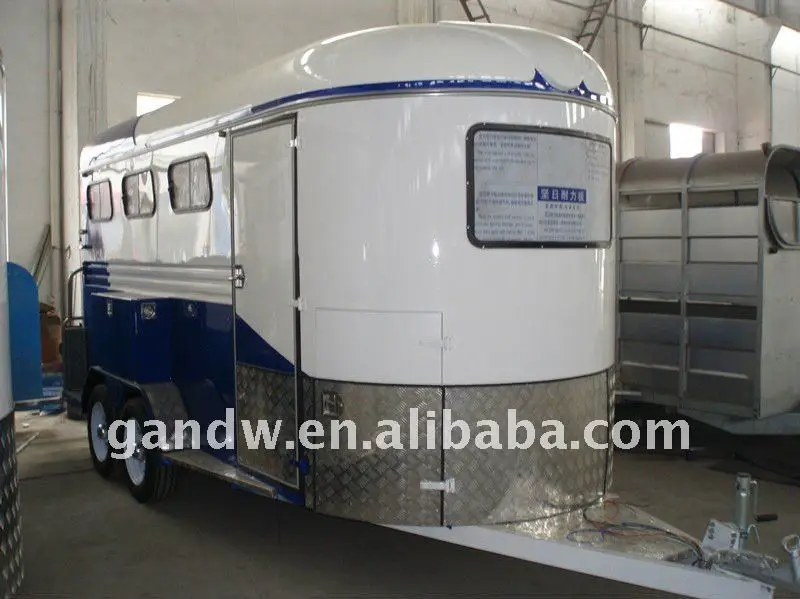

Australian 3 Horse Floats 4Horse Carriage Equestrian Equipment Saddle Cart
| Over Dimension | (LxWxH:mm):5825x2290x2662 |
| External Dimension | (LxWxH:mm):4430x1830x2190 |
| Inner Dimension | (LxWxH:mm):4380x1780x2120 |
| Horse bay | (LxW:mm):2050x700 |
| Trailer Weight | 1430KGS |
| Max Payload | 1440KGS |
| Body frame | Hot dipped galvanised chassis, galvanised sheet panels and body frames |
| Roof | 3-4mm thickness fiberglass |
| Side wall | 6mm thickness rubber matting |
| Floor | 18mm thickness heavy duty hard plywood plus 9mm rubber matting |
| Chain | Safety chain D-ring, welded chain or adjustable chain hooks |
| Coupler | Φ= 50mm load 3500kg |
| Brake | Electric drum cable brake in two axle with hand brake system |
| Break away switch with 12v battery | |
| Suspension | 7 leaf spring |
| Axle | 2pcs |
| Axle distance | 840mm |
| Light | LED light, rear lights 2pcs, internal roof light 1pc |
| Outer view width lights 2pcs, licence board light 1pc | |
| Plug | 7 pin plug round or flat |
| Wheels & Tires | 5pcs 195/70R15C, 15x6J, including a spare tire |
| Spare wheel Bracket | 1pc |
| Alu decoration | 1.5mm checker plate Alu decoration on front and on wheel |
| Button bar | Galvanised and powder coated button bar with soft PVC pads, its tube 40x40x2mm |
| Tie ring | Galvanised hook for tighting the horse(inside 3pcs, outside 3pcs) |
| Vent | Roof vent with five opening ways |
| Front window | Mould alu alloy front window (950x500mm) |
| Side window | Mould alu alloy side window 6pcs (300x600mm) |

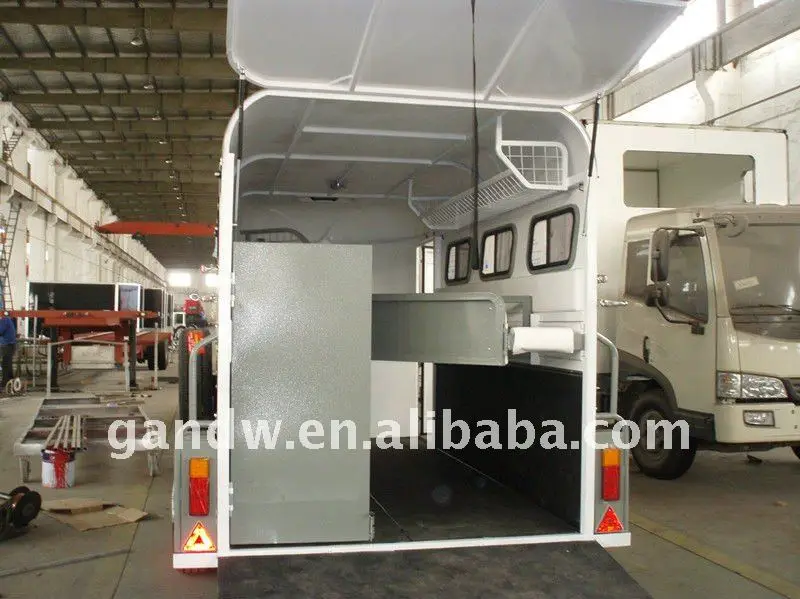

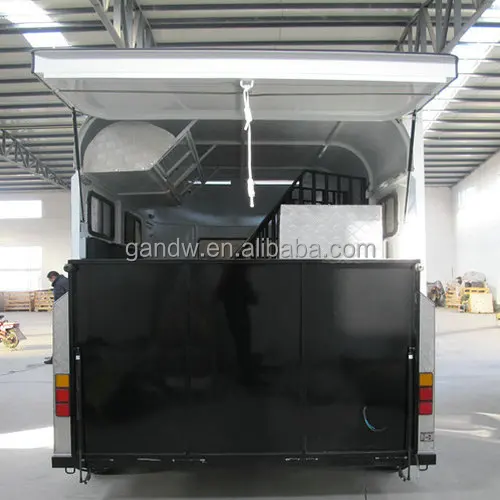

| Rear ramp door | Rear ramp door with spring support: 1600x1220mm |
| Side door | 1650x600mm |
| Option | Pop up door |
| Barn door with hinge | |
| Break away switch with 12V battery | |

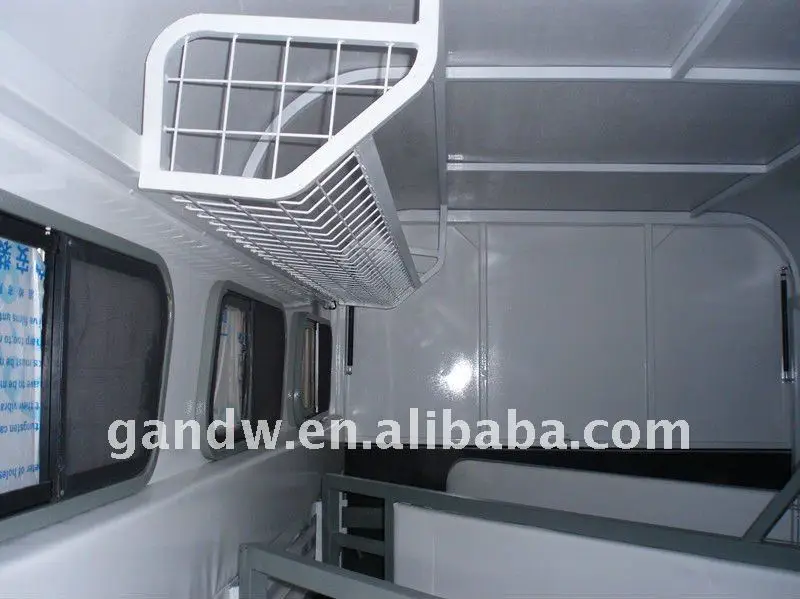

| Luggage shelf(overhead rug racK) | |
| Front tack box | |
| Swing out tool box | |
| Alloy wheel | |
| Folded Alu Awning | |
| Gas strut for rear door | |
| Extension size available |
