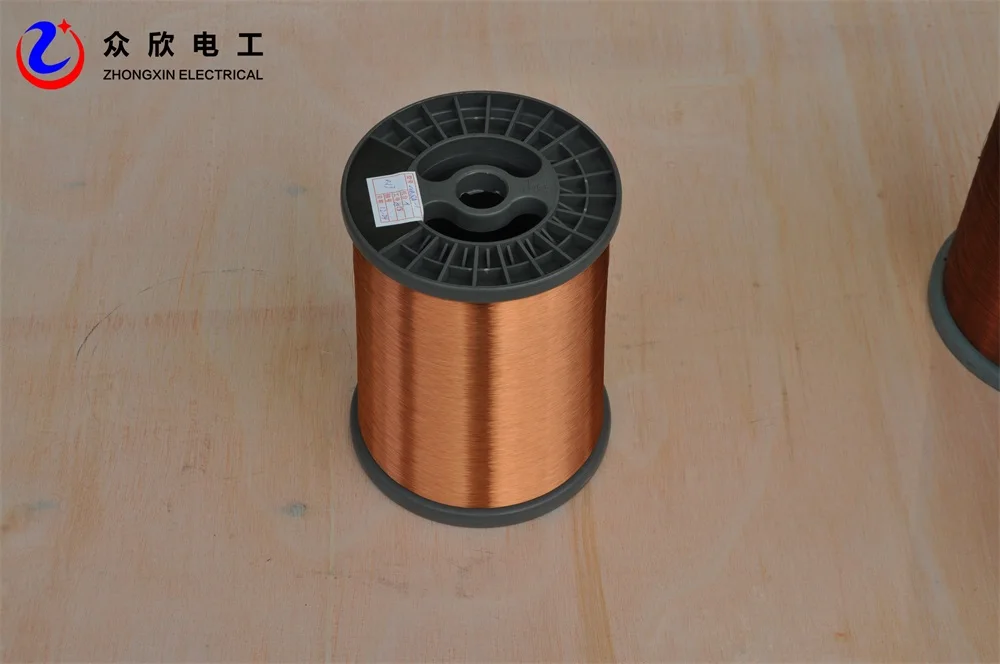

Round Insulated CCA Winding Wire

Product Overview

Description

Detailed   Product   Description

Round  Insulated Copper Clad Aluminium Enamelled Winding Wire



1. Temperature Class: 130/155/180/200/220 centigrade

2. Performance features: It is easier to make coil from copper clad aluminum enameled wire than other enameled wires. Because there is hard oxide film on the its surface, the temperature of heat-resistance is 20 higher than that of copper and insulation effect is excellent, and have a long life range. The biggest advantage is that its weight is 3 times lighter than that of copper so that the production cost can be decreased greatly. It can be soldered directly.

3. Main applications:

This kind of copper clad aluminum enameled wire can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance, especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric motor.

4. Specification:

Diameter 0.13~ 6.0mm (can be made into thin coat, thick coat and coat requested by clients)

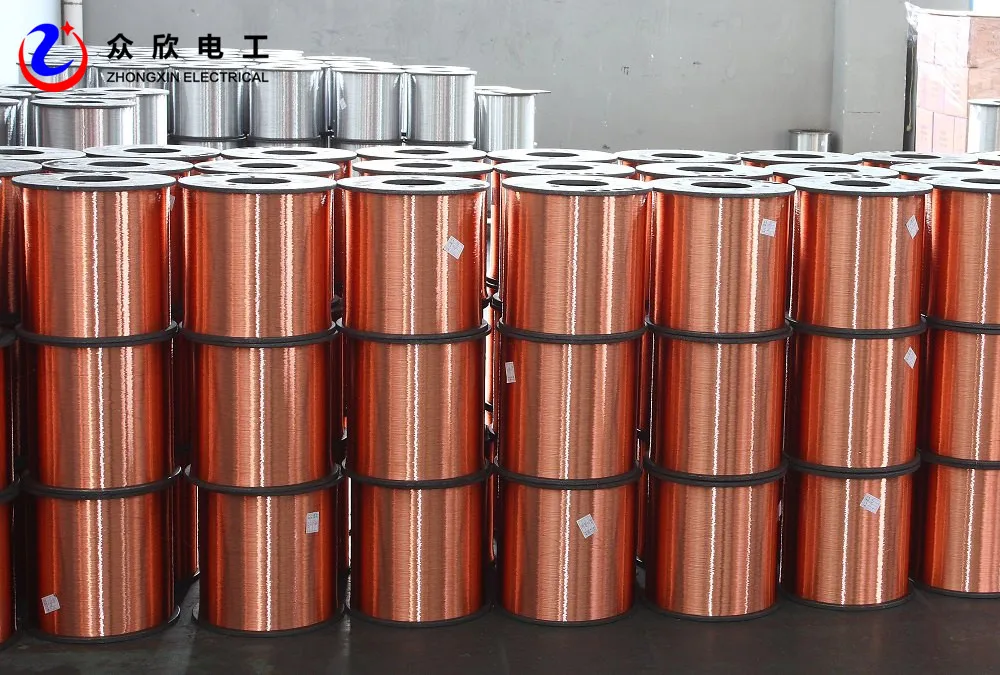

5. Packing: carton, reel, and also can pack the goods according to the requirement of each client



            The physical and mechanical performance of copper clad aluminum wire,

                                           copper wire , aluminum wire





conductor Performance	Copper Clad Aluminum Wire	Copper Wire	Aluminum Wire
Volume ratio of copper (%)	15	109	0
Specific gravity (g/cm3)	3.63	8.89	2.70
Length ratio in same wire diameter and unit weight	2.5: 1	1: 1	3.29: 1
Conductivity (IACS)	70	100	62
Electric resistivity(Ωmm2)	0.02462	0.01724	0.02740
Tensile strength (M pa )	95-135	215-266	68-107
Elongation (%)	≥10	≥20	≥8
Winding performance	good	very good	good
Weight	good	bad	very good
Soldering performance	very good	very good	bad
Direct current resistance	good	very good	good
