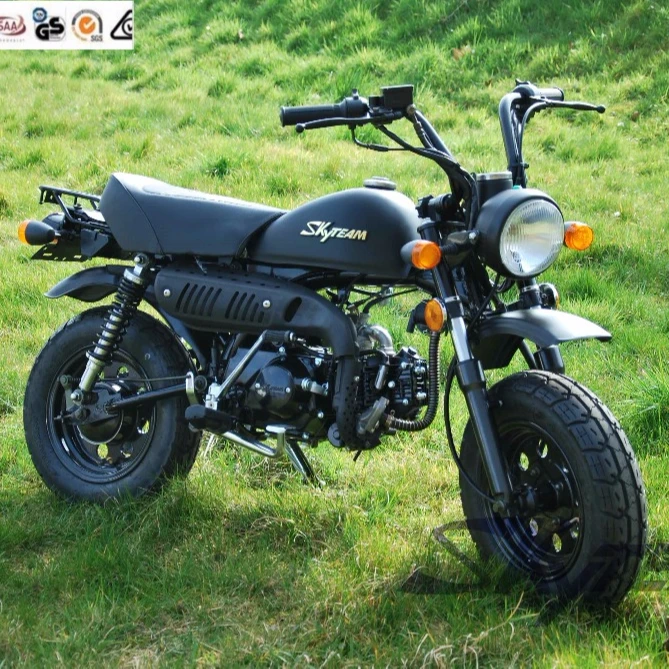

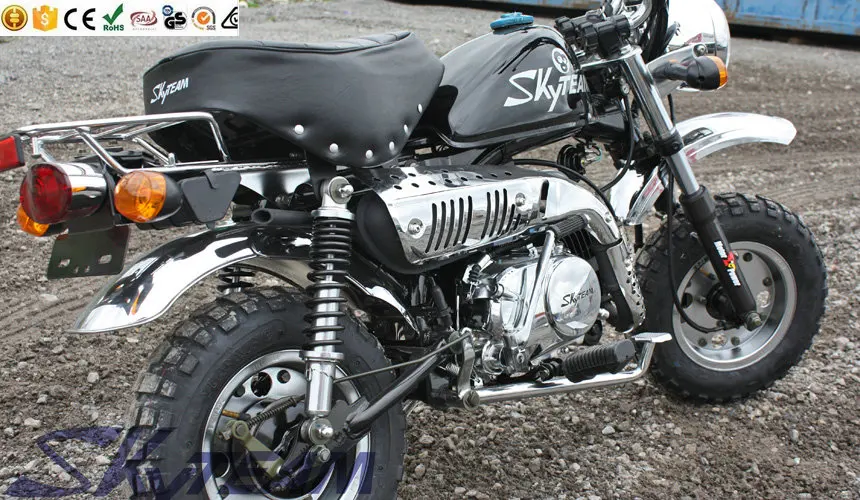

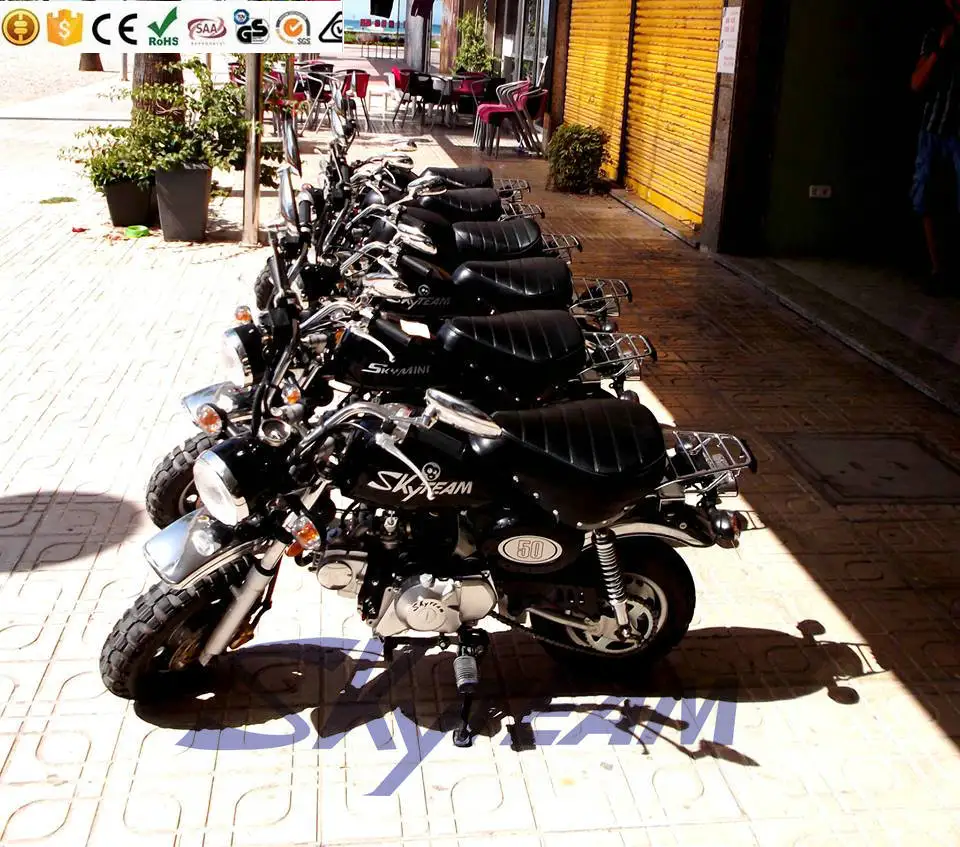

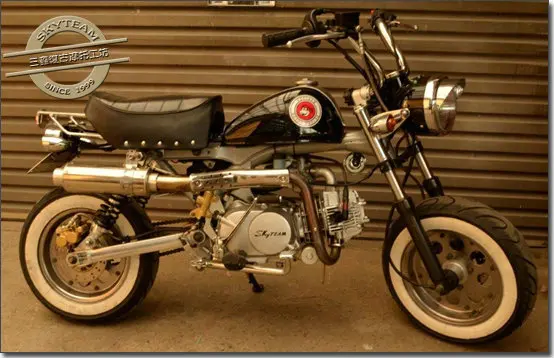

SKYTEAM E5 125cc monkey motorcycle monkey bike dax motorcycle (EEC EURO5 ) road legal
- Category: >>>
- Supplier: Jiangsu Sacin Motorcycle Co. Ltd.
Share on (51605619):
Product Overview
Description
SKYTEAM E4 125cc 4 stroke monkey motorcycle monkey bike (EEC EURO4 )
SKYTEAM 125cc 4 stroke monkey motorcycle monkey bike (EEC EURO4 )
125cc monkey motorcycle street legal monkey bike dax motorrad
monkey mini motorcycle monkey bike dax moto
monkey bike
| ST125-8 | |
| ENGINE | |
| ENGINE TYPE | Air-Cooled, 4 stroke, single cylinder, 2 valve, SOHC |
| DISPLACEMENT | 124CC |
| BORE*STROKE | 52.4 x 57mm |
| COMPRESSION RATIO | 9.1 TO 1 |
| MAXIMUM POWER | 5.6kW/7500rpm |
| MAXIMUM TORQUE | 8.6Nm/5500rpm |
| MAXIMUM SPEED | 88km/h |
| MAXIMUM SPEED ON COC | 88km/h |
| LUBRICATION SYSTEM | Pressure and splash lubrication |
| CARBURETOR/FUEL SUPPLY | MIKUNI 22 83419 |
| CLUTCH TYPE | Wet, multiple disc |
| IGNITION SYSTEM | CDI |
| STARTER SYSTEM | Electric & Kick |
| TRANSMISSION SYSTEM | 4-gear, Pedal |
| FINAL TRANSMISSION | Chain |
| FUAL TANK CAPACITY | 4.5L |
| OIL TANK CAPACITY | 800ml |
| CHASSIS | |
| CHASSIS | Steel, Single-tube |
| FRONT SUSPENSION SYSTEM | Telescopic Forks |
| FRONT TRAVEL | 60mm |
| REAR SUSPENSION SYSTEM | Spring & Oil / Double Shock |
| REAR TRAVEL | 50mm |
| FRONT BRAKE | Disc155mm |
| REAR BRAKE | Drum |
| FRONT TYRE | 3.50-8-4PR |
| REAR TYRE | 3.50-8-4PR |
| DIMENSIONS | |
| LENGTH | 1375mm |
| WIDTH | 600mm |
| HEIGHT | 860mm |
| SEAT HEIGHT | 700mm |
| WHEEL BASE | 900mm |
| MINIMUM GROUND CLEARANCE | 170mm |
| DRY WEIGHT | 66Kg |
| CONTAINER LOAD | 84/174/174 |
| PACKING DIMENSION | 1150 x 410 x 752mm |
