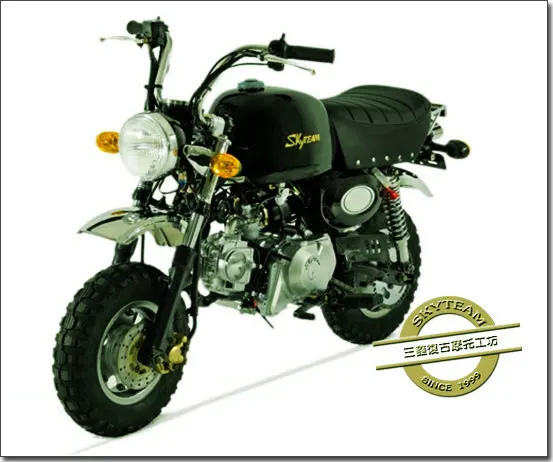

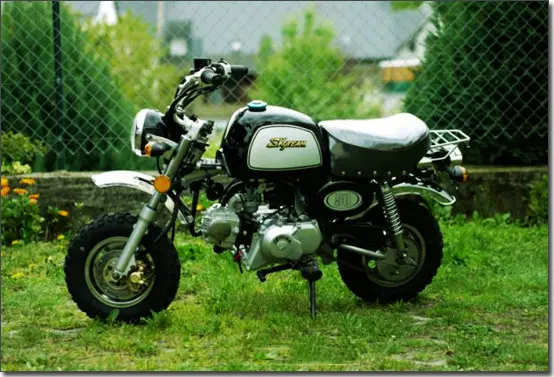

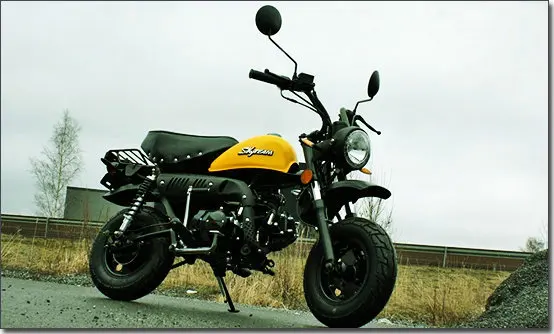

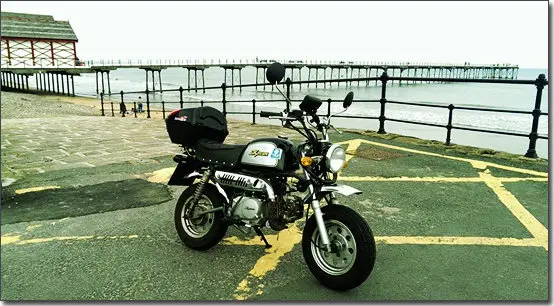

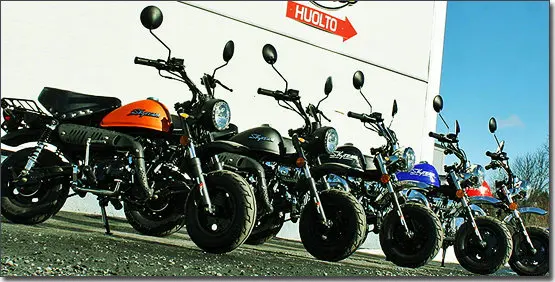

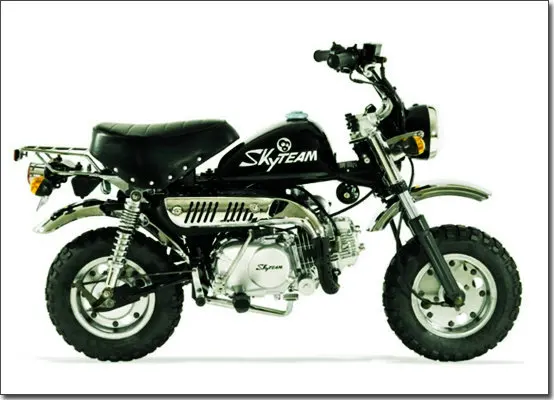

SKYTEAM E5 125cc 4 stroke Skymini monkey motorcycle monkey bike (EEC EUROV EURO5 APPROVED)

Product Overview

Description

SKYTEAM 125cc 4 stroke Skymini monkey motorcycle monkey bike (EEC EUROIV EURO4 APPROVED)

monkey motorcycle monkey bike

monkey bike



SKYTEAM MODEL TECHNICAL INFORMATION
	ST50-8 (SKYMINI50 E4)	ST50-8A (SKYBONGO50 E4)
ENGINE
ENGINE TYPE	Air-Cooled, 4 stroke, 1 cylinder, 2 valve	Air-Cooled, 4 stroke, 1 cylinder, 2 valve
DISPLACEMENT	49cc	49cc
BORE*STROKE	39.0mm×41.4mm	39.0mm×41.4mm
COMPRESSION RATIO	8.8 TO 1	8.8 TO 1
MAXIMUM POWER	0.95 Kw/5600rpm	0.95 Kw/5600rpm
MAXIMUM TORQUE	1.9 N.m/3800rpm	1.9 N.m/3800rpm
MAXIMUM SPEED	45km/h	45km/h
LUBRICATION SYSTEM	Pressure and splash lubrication	Pressure and splash lubrication
CLUTCH TYPE	Wet, multiple disc	Wet, multiple disc
IGNITION SYSTEM	CDI	CDI
STARTER SYSTEM	Electric & Kick	Electric & Kick
TRANSMISSION SYSTEM	4-gear, foot Pedal	4-gear, foot Pedal
FINAL TRANSMISSION	Chain	Chain
LUBRICATION OILTANK CAPACITY	800ml	800ml
FUAL TANK CAPACITY	4.5L	8.5L
CHASSIS
CHASSIS	Steel, tube	Steel, tube
FRONT SUSPENSION SYSTEM/TRAVEL	Spring & Oil	Spring & Oil
REAR SUSPENSION SYSTEM/TRAVEL	Spring & Oil	Spring & Oil
FRONT BRAKE	Disc	Disc
REAR BRAKE	Drum	Drum
FRONT TYRE	3.5-8 or 3.5-10	3.5-8 or 3.5-10
REAR TYRE	3.5-8 or 3.5-10	3.5-8 or 3.5-10
DIMENSIONS
LENGTH	1380 mm	1380 mm
WIDTH	660mm	660mm
HEIGHT	885mm	885mm
SEAT HEIGHT	740mm	740mm
WHEEL BASE	935mm	935mm

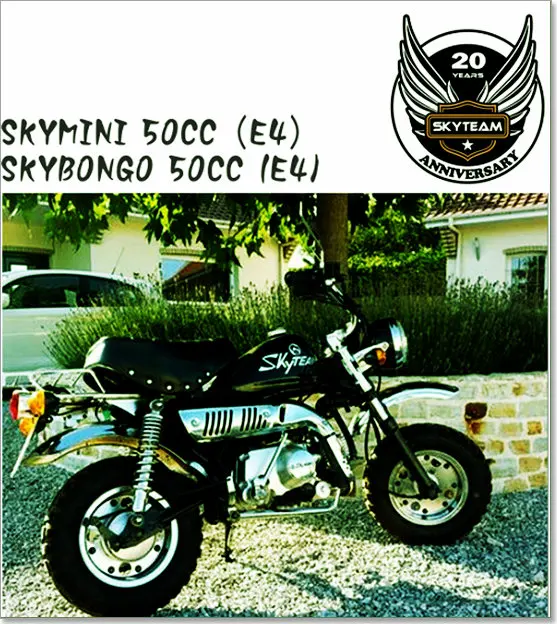

SKYTEAM 50cc E4 SKYMINI&SKYBONGO monkey gorilla motorcycle monkey bike,EEC EUROIV EURO4 EPA







Our Factory









Certificate(EEC, EPA, CCC, ISO9001, BSCI)







About us

As a Chinese motorcycle manufacturer, SKYTEAM( also known as “JIANGSU SACIN MOTORCYCLE CO., LTD”) has a wide range of EEC on-road motorcycles, like mini retro models, classic café racer, dirt bike, etc..


Established in 1999,SKYTEAM (Jiangsu Sacin Motorcycle Co., Ltd.) specializes invintage on-road motorcycles, and most products are for export market. With advanced international and domestic technology, we have developed more than 45 models, among which 24 models are EEC approval, and 13 models are CE approval. Besides, we own 7 models which have been successfully patented of outlook intellectual property. Our brand name for export market “SKYTEAM” and its logo has been registered worldwide.

Equipped with good team-work spirit as well as leading research and developing strength, our company put out new products every year based on international market demand. We present our products every year on the two well-known international motorcycle shows held in Europe and America respectively, so that we can bring in the latest and most advanced technology on our products. Up till now we have establishedgood business relationship with more than 100 importers almost all over the world, and our products have been exported to Europe, Asia, America, Australia, Africa, Mid-east, and other regions worldwide.

To fulfill our objectives of providing first-class motorcycles and excellent service, we have recombined assets and expanded production scale. Now our company occupies 14000 sqm of workshop and office building, with 2 assembly lines, 1 package line, 2 motorcycle test line, and 1 engine test line as well as other software and hardware equipments.

With fast and steady development, we will keep on manufacturing and supplying high-quality motorcycles to all our importers. Wish we can have the honor to invite you to join SKYTEAM family!
