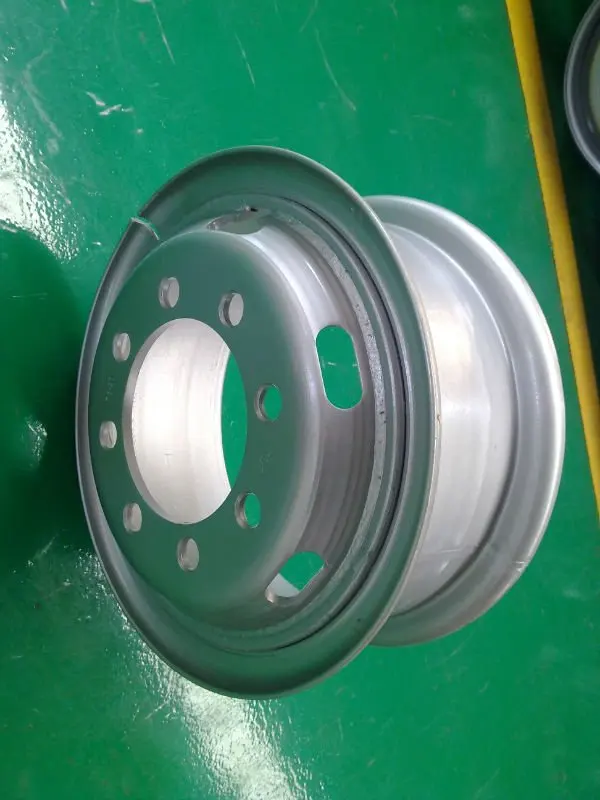

7.5 20 TUBE WHEEL RIM

Product Overview

Description

tube wheel wheel rim 7.5-20
10-15 days delivery
COLOR:blue black silver
Quantity/20GP  360sets
Equipped with tyre 10.00-20



truck wheel rim  size 7.5V-20

Bolt No. 10/8

DIA   26/32 mm

Hole Type  SR22/1*45

P.C.D.   275/285.75/335mm

B.C.D.   214/220/221/222/281mm

Offset   165mm

Disc thickness   14/16mm

COLOR:blue black

Quantity/20GP  360sets

Equipped with Tire   10.00--20

we can make them according your drawing



Tubeless steel wheel  22.5x11.75  22.5x9.00  22.5x8.25  22.5x7.50  22.5x6.75

                    19.5x7.50   19.5x6.75  19.5x6.00  17.5x6.75   17.5x6.00

Tube steel wheel    5.5F-16    6.00G-16   6.50-16   7.00-16

                   7.5V-20    8.00V-20   8.5-20    8.5-24

Wheel size	Bolt Hole			P.C.D (mm)	Center  Bore  DIA (mm)	DISC  Thick  (mm)	Offset (mm)	TEC.TYPE	QTY/20 GP
	Hole DIA(mm)	NO	NUT Pedestal
7.50V-20
7.50V-20	27	10	1*45	335	281	16    14	163	10.00-20	360
7.50V-20	32	10	SR22	285.75	222		165
7.50V-20	26	10	1*45	285.75	220		163
7.50V-20	32	8	SR22	285	221		165
7.50V-20	32	8	SR22	275	214		165
7.50V-20	26	8	1*45	275	221		165
