Industrial x ray ndt Car Inspection Equipment

Product Overview

Description

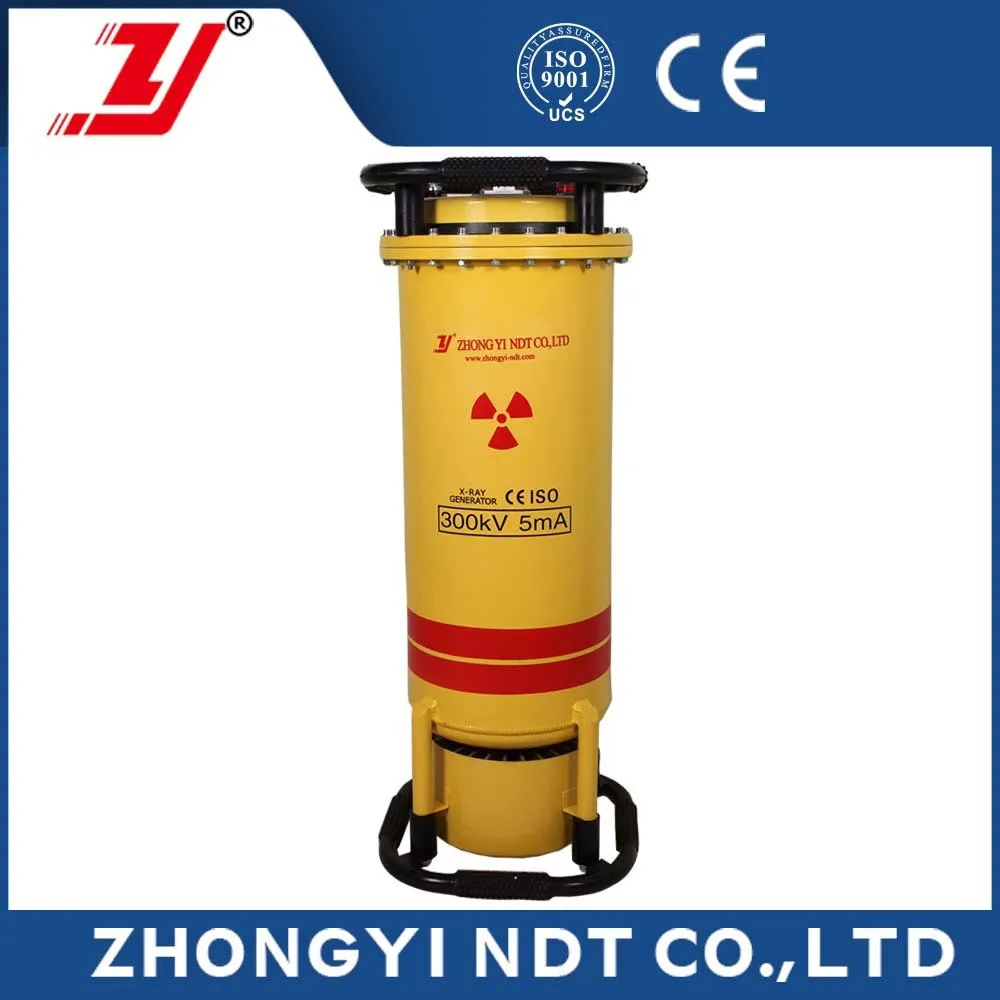

x ray Car Inspection Equipment





Introduction



x ray Car Inspection Equipment



(1) Small volume, Light Weight, easy to take and simplicity of operation
(2) Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and fan forced cooling .
(3) Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
(4) Excellent anti-jamming performance. Capable to operate from 200KV to 350KV voltage.
(5) Possess the reliable “Time –delayed” fiction, suitable to operate in the open field.
(6) High degree of automation, with the fiction of trouble self shooting and indication.

(7) Strictly followed with 1:1 working /resting radio , eliminating the disoperation.

(8) The HV windings made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.



Parameters



  x ray Car Inspection Equipment



XXHA-3505 Model



Tube	glass tube
Beam Angle	Panoramic 360°x40°
Output Voltage	200-350KV
Output Current	5mA
Power Supply	AC 220V±10%,50HZ
Capacity	>3.5KW
Max. Penetration(A3 Steel)	50mm
Focus Size	1.0 x 6.0mm
Dimension	340mm x 340mm x 850mm
Generator Weight	42kg
Insulating Material	SF6 gas
Safe Pressure	0.35-0.50MPa





x ray Car Inspection Equipment















Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70





FAQ:



Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.



Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .



Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
