nano diamond

nano diamond:

1.it is the fine size of the synthetic diamond powder,widely used in polishing,finishing,super finishing and lapping powder for sapphire polishing,gemstone polishing,quartz polishing,glass,natural diamond,ceramic polishing,eletronic components and other hard materials.

Diamond micron powder also can be made into diamond polishing disc,diamond paste,PCD,PDC and so on.

2.diamond powder grit:

0-1/2,0-1,0-2,1-2,1-3,2-4,3-6,4-8,5-10,6-12,10-15,10-20,12-22,15-20,15-25,20-30,22-36,30-40,36-54,40-60,54-80

3.diamond powder Mesh size:

Comparison Chart Of The Mesh Size Of Synthetic Diamond Micron Powders
Product Designation Size(um)	Standard of China (um)	Standard of Factory	Appox. Mesh
0--0.25	0--0.25	W0.25
00.4	00.5	W0.5
00.8	01	W1	15000#
0.40.8	0.51
0.41.2	0.51.5	W1.5
01.6	02	W2.5
1.22.3	1.53	W3.5	8000#
1.63.1	24		5000#
1.93.9	2.55	W5	4000#
2.34.7	36	W7	3000#
3.16.2	48		2500#
3.97.8	510	W10	2000#
4.79.3	612		1500#
6.29.3	812	W14	1200#
7.815.5	1020	W20	800#
9.317.1	1222		700#
15.523.3	2030		600#
17.127.9	2236	W28
27.941.9	3654	W40	400

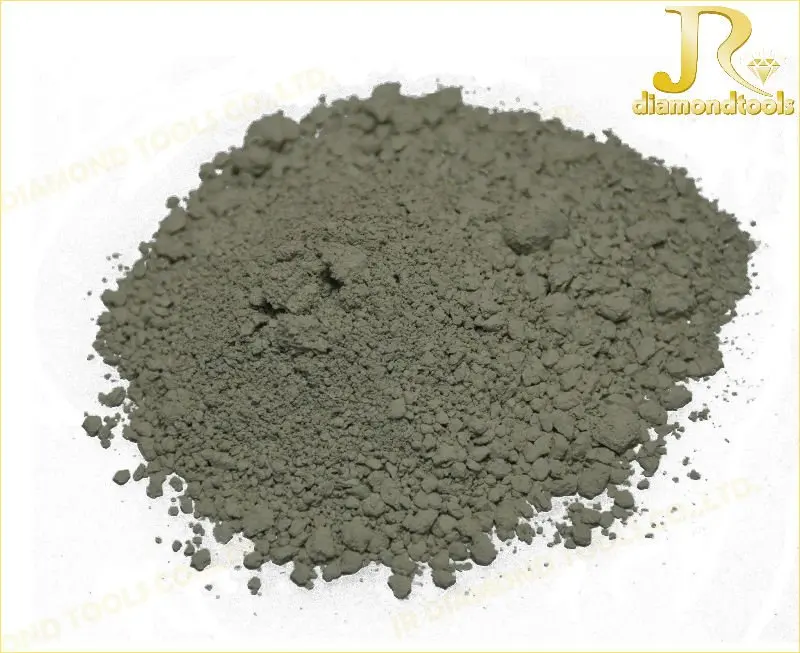

Diamond micro powder:RVD1 and RVD2

RVD1 micro diamond  powder:

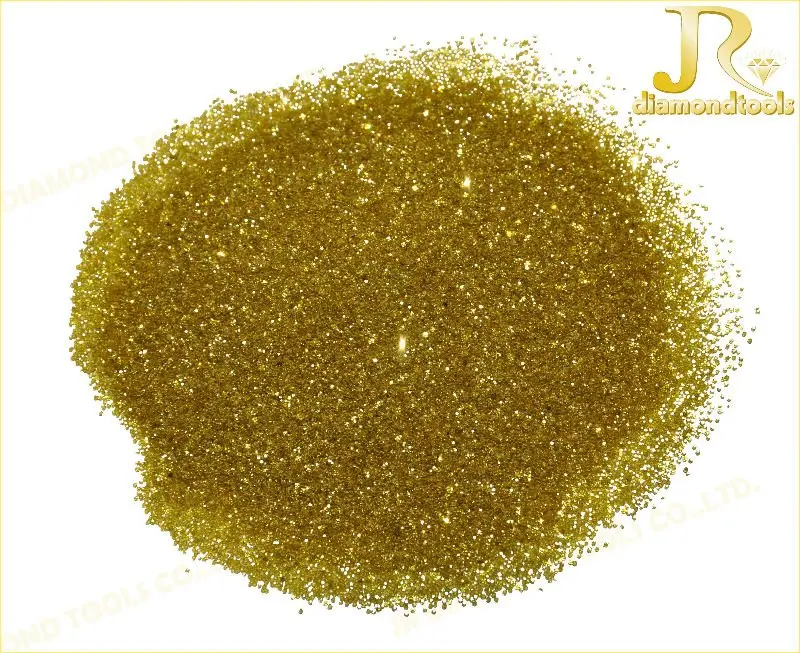

Diamond mesh powder: RVD1 and RVD2

RVD1 mesh diamond  powder:
