Yuton 11 62 II Industrial blower Exhaust Centrifugal Ventilation air mover fume aspirator draft cooling fan

Product Overview

Description

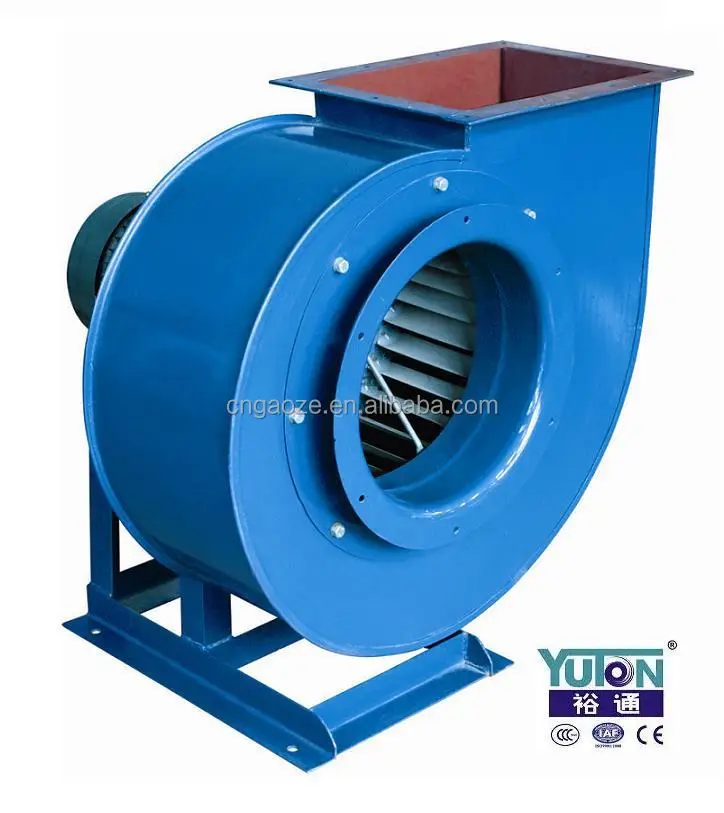

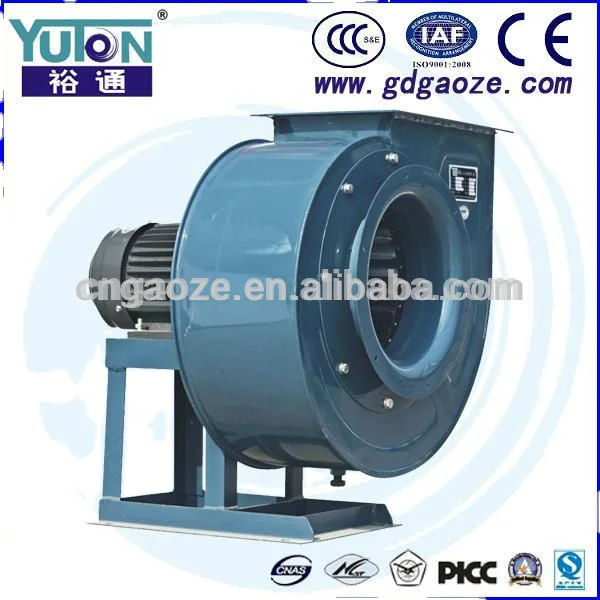

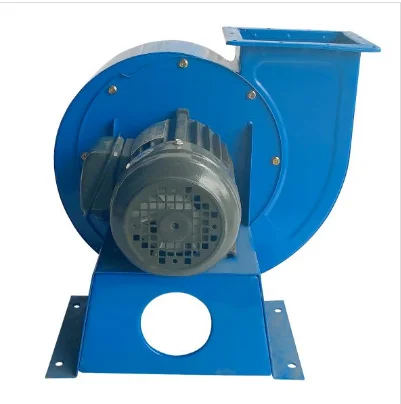

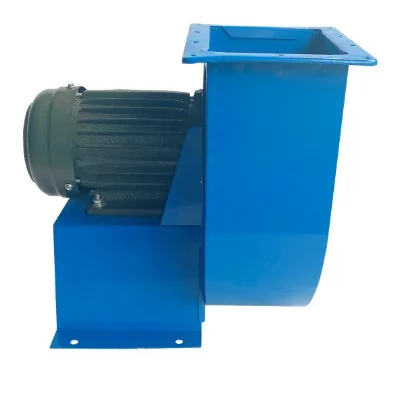

Manufacture 11-62-II Industrial Multi-blade Exhaust Centrifugal Ventilation Fan

Feature:

1.Fans adopt the structure of advanced logarithmic spiral housing

2. Fans shall be made of superior steel by welding with enough strength and rigidity.

3.  Fans have  the profermance of high efficicency,low noise and low revolution

4. The angle of fan outlet can be adjusted to 0 ° 90 ° &180 °.

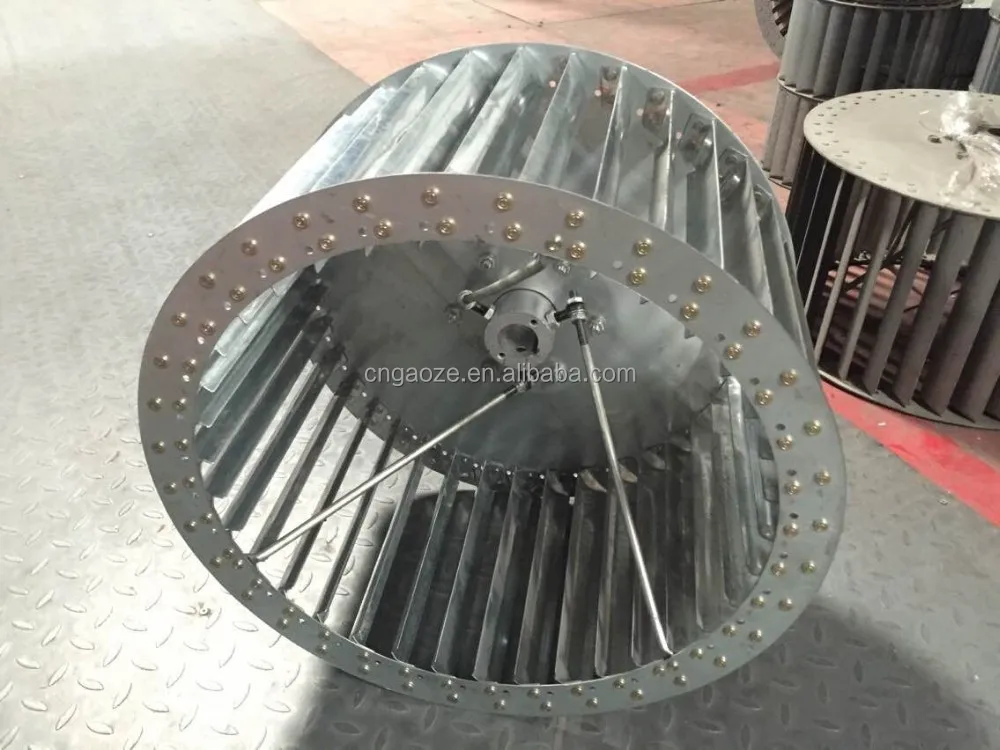

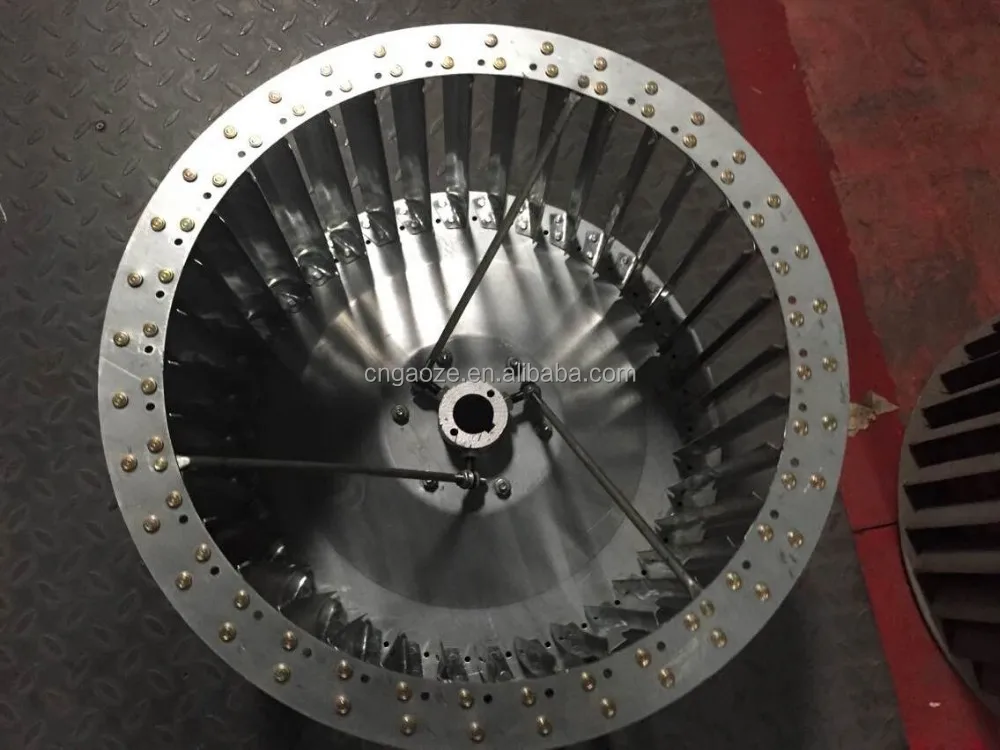

5. Cetrifugal  impeller is balanced by static balance and dynamic balance, has characteristics of good aerodynamic performance and run stable.

6. Multi-blades, forward curved.

7. 100% copper wire motor,special voltage & frequency could be customized.

Application:

A.General Ventilation     B.Process ventilation     C.Contaminated Air Streams

D.Mining Ventilation       E. Air-conditioner           F.Fumes duct or smoke removal etc

Air  temperature max:

The transmit medium should not include the stickum..The temperature should  be below 80C,dust and solid should be below 150mg/m3.







Model  No.	Voltage	Power	Revolution	Wind Flow	Pressure
No.	V	kw	rpm	m3/h	Pa
2.5A	220/380	0.55	1450	950~2100	340~400
2.8A	220/380	0.75	1450	1150~2500	450~480
3A	220/380	1.5	1450	1300~2800	210~270
3.5A	380	1.1	960	2600~4300	260~350
3.5A	380	3	1450	4000~6500	600~800
4A	380	2.2	960	4400~9500	350~500
4A	380	3	960	5300~9500	350~500
5A	380	4	960	5300~9300	650~750
6A	380	7.5	960	8000~15000	450~1000
6.5A	380	11	960	13000~21000	700~1200
7A	380	11	720	9000~20000	344~724
3A	380	1.5	1450	2000~4250	480~600
2.8A	380	0.75	1450	1150~2500	450~480







Payment	T/T,30% deposit in advance,the balance should be paid before shipment
Price Term	Normally FOB Shunnde,CIF,CNF,EXW is acceptable
Delivery time	Normally 1X40HQ within one month, not including the time of sample confirmation
