 Rotogravure Printing Machine,Gravure Printing Machine,Gravure Print Machine Set




Product Description
Characteristic:



This rotogravure  printing machine is suitable for continuously printing such packing products various plastic film, currency, cloth and thin leather, etc. Printing of one side or two sides can be finished through once operation. The register sets of 360 can make the colour registration,which will not influence the traction of film. Equipped with far infrared tube dyeing unit, this machine set can dry bags up to 50m/min. and it can print clear and exquisite image, model 1 to 8 colour machines can be chosen.




Parameter:



Model of MachineASY-600YT-800  YT-1000
Effective Printing Width600mm800mm1000m
Max.width of web620mm820mm1020mm
Max.Printing Speed80m/min80m/min80m/min
Max.Mechanical Speed100m/min100m/min100m/min
Max.Diameter of Unwind/Rewind600mm600mm600mm
Inside Diameter Of Roiicore76mm76mm76mm
Diameter Of Printing Cylinder120-320mm120-320mm120-320mm
Accuracy of Registration±0.2mm±0.2mm±0.2mm
Tension Control Range3-25kg/Full Width3-25kg/Full Width3-25kg/Full Width
Heating Power of Oven28.8kw36kw43.2kw
Total Power38.6kw47.5kw56.6kw
Weight of Machine8500kg9500kg10500kg
Overall Dimension9300*2300*2300mm9300*2500*2300mm9300*2700*2300mm

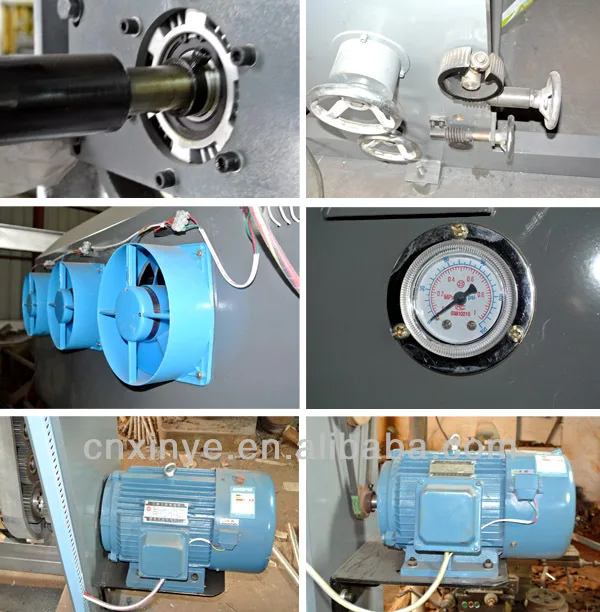

Product Details:

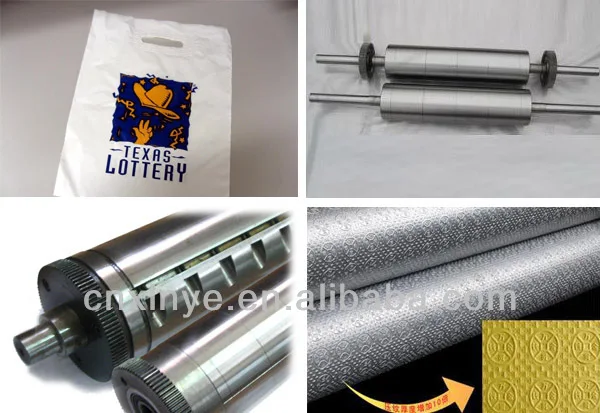

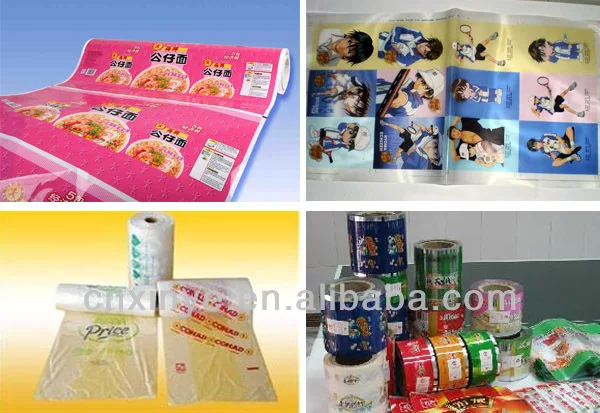

Samples:




Certificates:



 06



Packaging & Shipping

 Loading:





08



I'm always here for you!








Our Services
Our Service:



 1.Installation Services



Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.



 2.After Sales Service



We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.




Company Information
About Us:
Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It specializes in producing Series of plastics-packaging equipment.We are engaged in producing bag-making  machine,Printing Machine,Film Blowing Machine, etc.

1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft  handle  bag-making  Machine ; high  speed  heat  sealing  and  slitting  bag-making  Machine;Microcomputer control bag-making Machine;Computerized vest bag-making  Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;

2) Printing Machine: Flexography Press; Rotogravure Printing Press;

3) Film Blowing Machine: HDPE-LDPE  Dual-purpose  Film Blowing  Machine,High  Speed  Film Blowing Machine Unit;

4) Others:Auto Slitting and Rewinding Machine, Hem Folding  Machine, Material Cutting  and Punch Machine.Since its  establishment,  with the purpose of " Gain the customer’s confidence  base on good quality."and "Improve continuously,  meet customer’s needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.



Trust us!And you will be satisfied!
