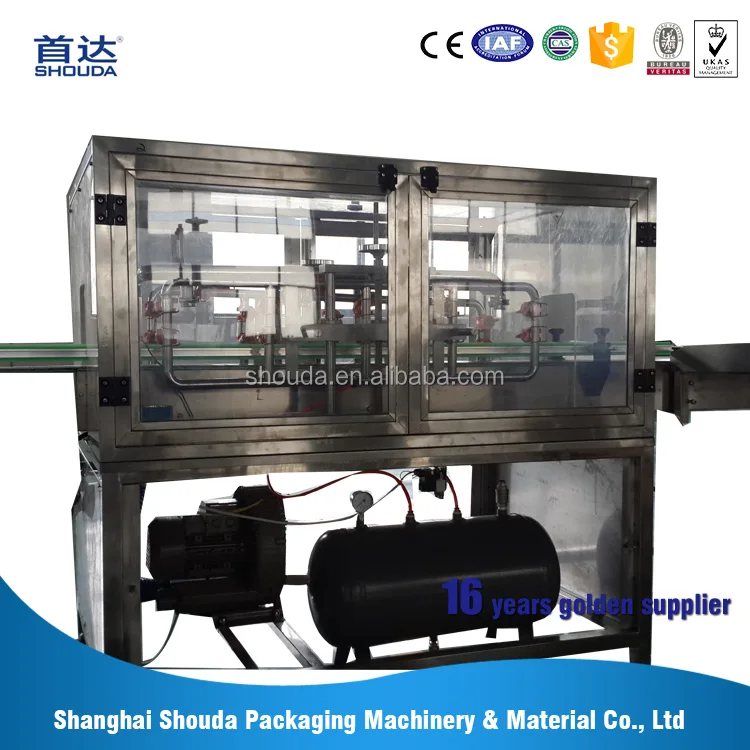

SD- 2BF this automatic canned filling and packaging machine was designed for automatic can feeding, weighing, filling, Feedback and failed packs inspect & reject. The machine is suitable for packaging powdery &grainy product ,for instance ,milk powder ,monosodium glutamate ,solid beverage ,icing sugar , dextrose , feed ,coffee , solid medicament ,powdery &grainy additive ,dye ,etc.

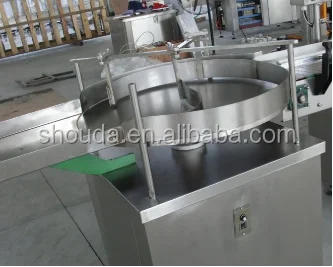

1. Bottle feeding table:

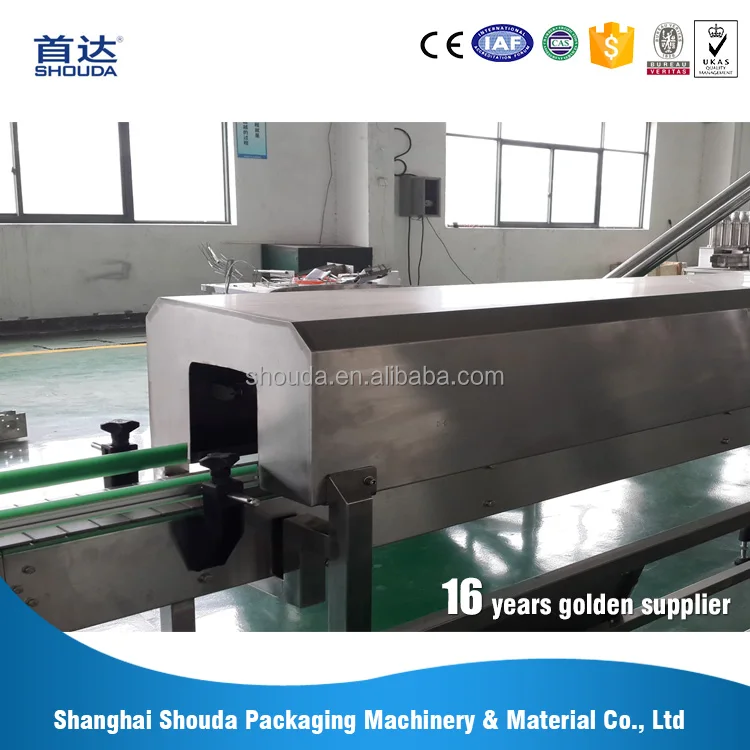

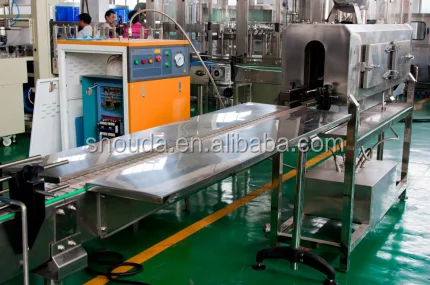

2. UV sterilization

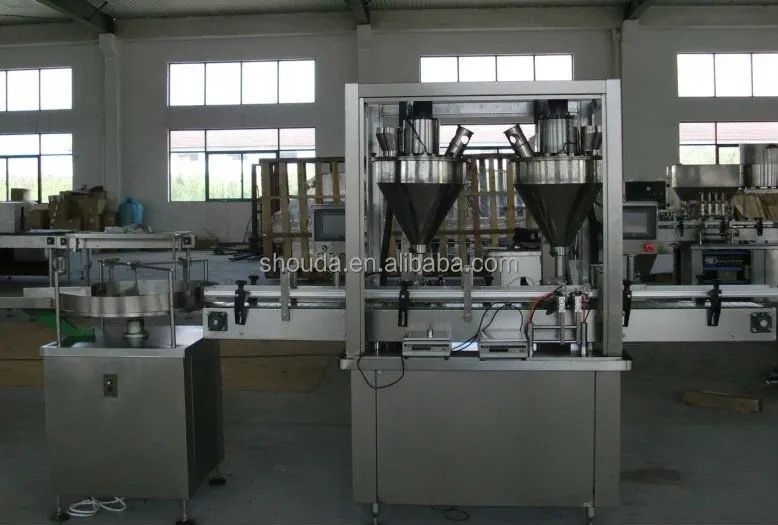

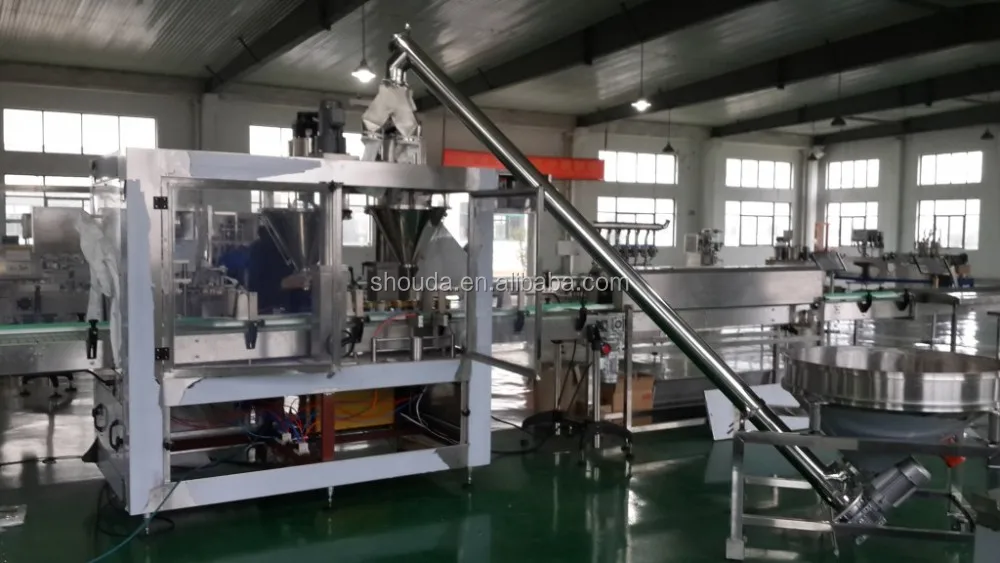

3. Auger powder feeding machine

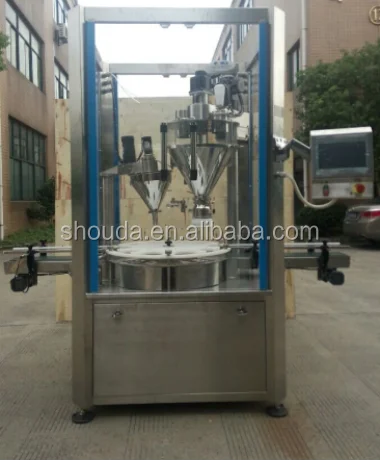

4. Automatic powder filling machine
Technological parameters:
Model: SD-2BF
Dosing Way:Auger filling with instant weight feedback
Filling Weight:0.9kg, 1.8kg, 2.5Kg
Packaging Accuracy:≤±1.5g
Packaging Speed: 20-25 Cans/min
Power Support/Total Powder:380V/50-60Hz / 3.5kw
Container Size:Cylindrical containers with diameter of 190mm and height of 215mm
Overall Dimensions:3330*1200*2300mm
Total Wight:700kg
Use Tolerance/Air pressure:6-8kg/cm2 0.2m3/min
5,Weight Checker

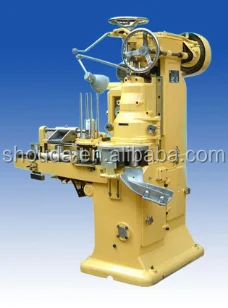

6, SD-FG10 automatic vacuum can sealing machine
This machine is with two pairs (four), single roll seam sealing round inflatable head automatic vacuum sealing device. Specifically for tinned, aluminum cans of a variety of system size round shaped empty cans, paper cans cover or end real purposes. And has the seal on the tank while the vacuum suction function, add sufficient nitrogen. To a machine. Milk and other food to be particularly suitable for encapsulating nitrogen gas filling. By replacing the corresponding pressure head molds can form parts with different specifications can be sealed circular cans. Application scope is wide, adjust the easy to operate, use and reliable.
Main technical specifications
Production capacity: 20-30 cans / min
Head speed: 540 r / min
Sealing range:
Tank diameter (small head): 50 ~ 70 mm (Big head): 70 ~ 108 mm
Cans High: 50 ~ 125 mm
Equipped with a motor: Model - - Y90L-4
Power: 1.5 kW
Dimensions: 1210 × 1460 × 1900 mm
Weight: 1355 kg

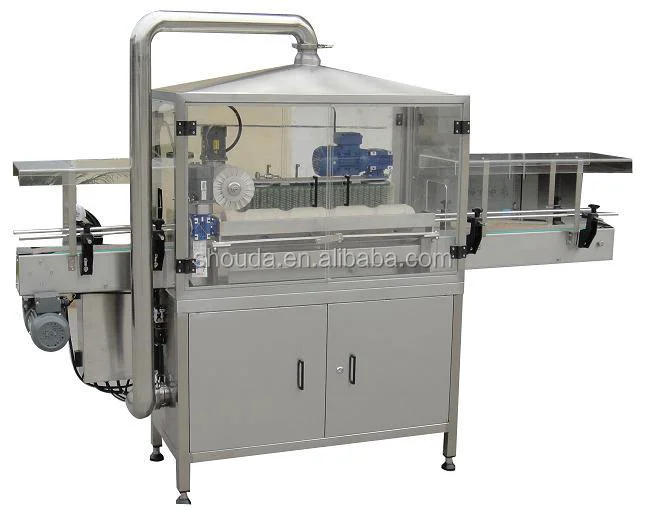

7.Air cleaning machine

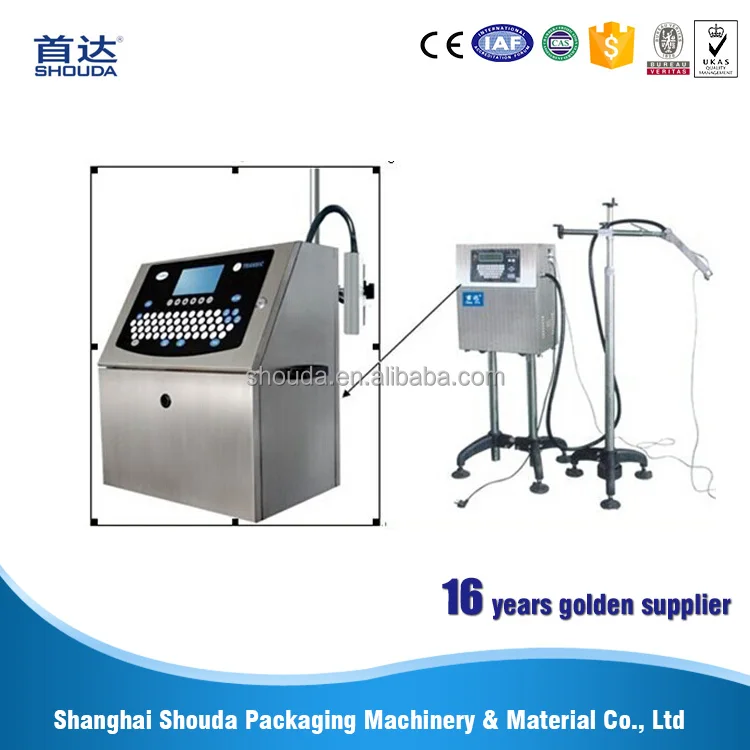

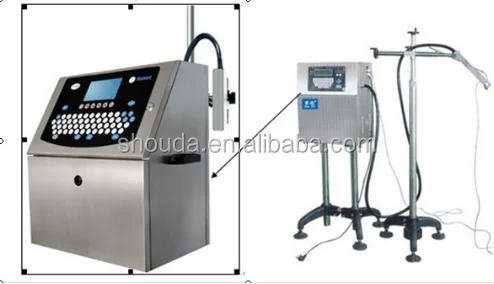

8. Inkjet printing machine
9. Collection table
Main parts: 1)stainless steel table (2)rail(3)motorFinished bottle are carried to table by conveyor to packing

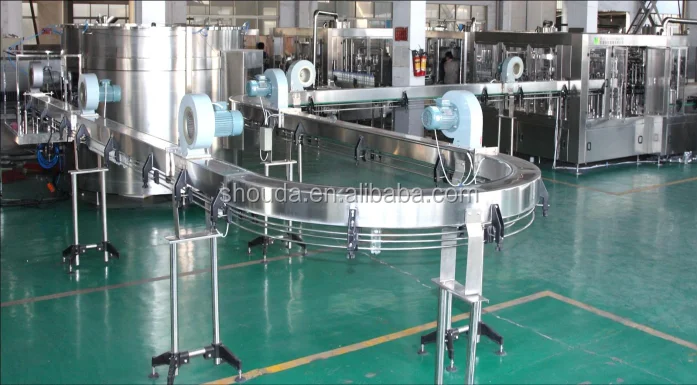

10.Conveyor
Application
Packaging&Shipping
Application package with Chinese special cases, the immune standard for long distance transportation, moisture, rust and shock, prevent rough handling, and pleasant to sea, land transportation and integral lifting
Company Information
Established in 2000, Shanghai Shouda Packaging Machinery & Material Co., Ltd. is a professional manufacturer of automatic packaging machineries & automatic filling and packing production line for liquid, gel, aerosol product. We had passed CE certificate, certificate of EU.
Can filling machine are sold well in many countries and regions in Asia, Middle East, Europe, America and Africa. The company has obtained extensive reputation through the immediate and perfect day and night after-sales service provided by a group of senior and high-rank engineers.
Today, Shouda owns a young and energetic modern packaging instrument marketing team, and has integrated marketing network as an organic whole. By successfully transferring to network business operation from traditional sales mode, Shouda has become a powerful producing and selling entity based on both domestic and foreign markets.
Shouda pursuits the concept of "being human-oriented" and implements the standard, modern and scientific management. With the spirit of "pioneer, verity, team and efficiency", Shouda goes along its way endlessly.
We also focus on consistent innovation of packaging to promote the packaging quality and automatic level for all kinds of products, and hope to make eye-catching contribution to the promotion of products packaging quality and packaging in the worldwide market.
If you are interested in any of our products, please feel free to contact us for more details. Product Description
