Rothenberger SHD1600 hydraulic plastic pipe butt welder
- Category: >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (517708236):
Product Overview
Description
Wuxi Shengda SHD1600 hydraulic plastic pipe butt welder
Product Description
USES and features:
1 Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.

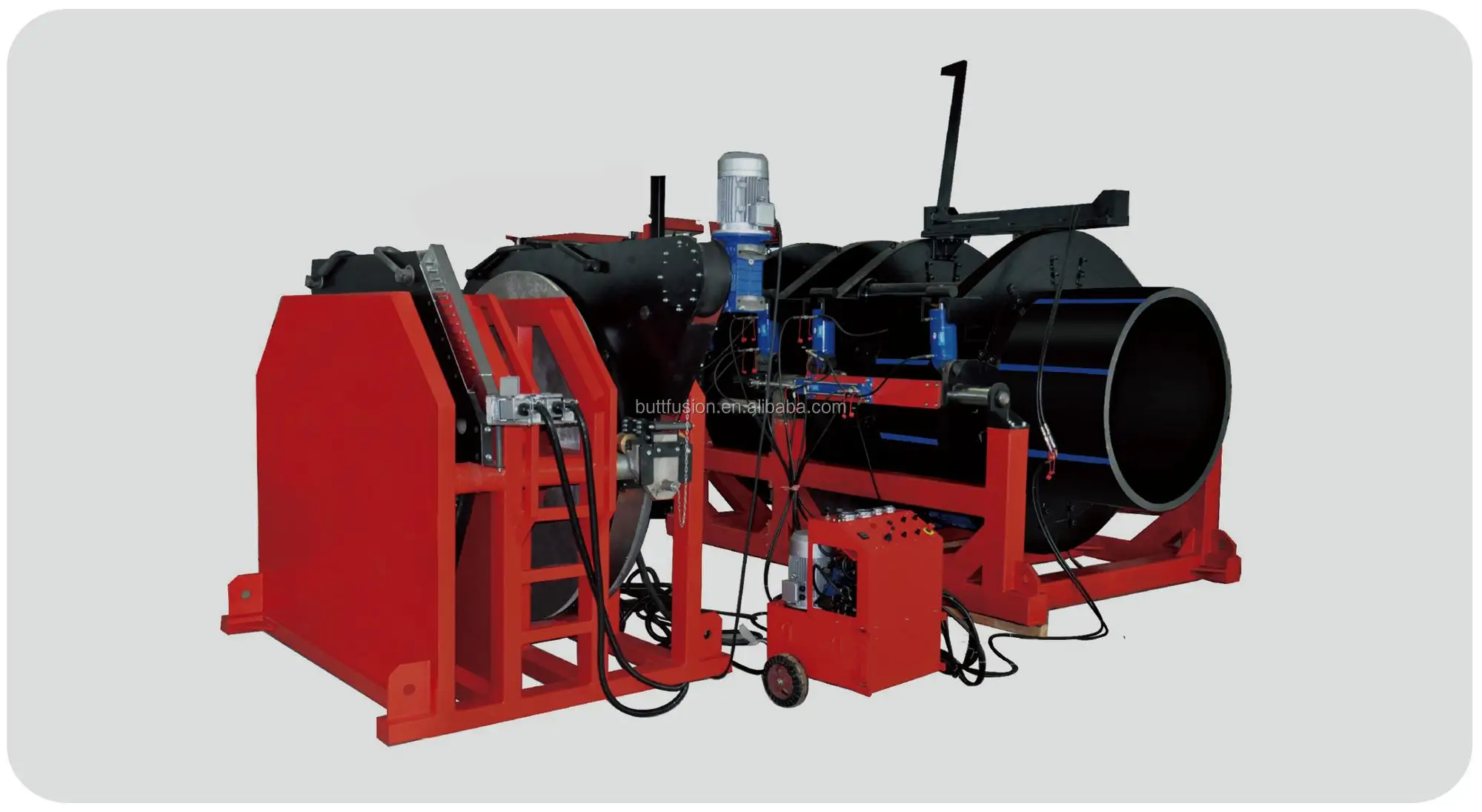

2 Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
3 Removable PTFE coated heating plate with high accurate temperature control system.
4 Electrical planing tool.
5 Robust structure design, suitable for multi-jobsites.
6 Changeable welding position enables to weld various fittings more easily.
7 High accurate and shockproof pressure meter.
8 Separate two-channel timer records time in soaking and cooling phases.
9 PLC control is an option.
Specification
| SHD1600 | |
| Pipe Size(mm) | 1000.1200.1400.1600 |
| Heating Plate Max.Temp | 270 |
| Temp.Deviation in Surface (170~250℃) | ≤±10 |
| Pressure Adjustable Ranges | 0 - 25Mpa |
| Working Voltage | 380VAC,3P+N+PE,50Hz |
| Heating Plate Power | 42kw |
| Planing Tool Power | 7.5kw |
| Hydraulic Unit Power | 3 |
| Total power | 59.7KW, 5200KG |
Company Information
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
We have the following characteristics, which different from other factories.
1. We have multi-function workshop, efficient production team and strict inspection team, could provide high quality machines .
2. We have excellent technicians ,so we could provide a variety of customized services.
3. We use schneider for our electrical equipment.all machines conform to CE certification, so that customers can use it more easily.
Certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
contact us
If you are interested in our productions, or have any questions, please contact us ,we could provide you more information.
More productions
Our business scope includes as below,
1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine
