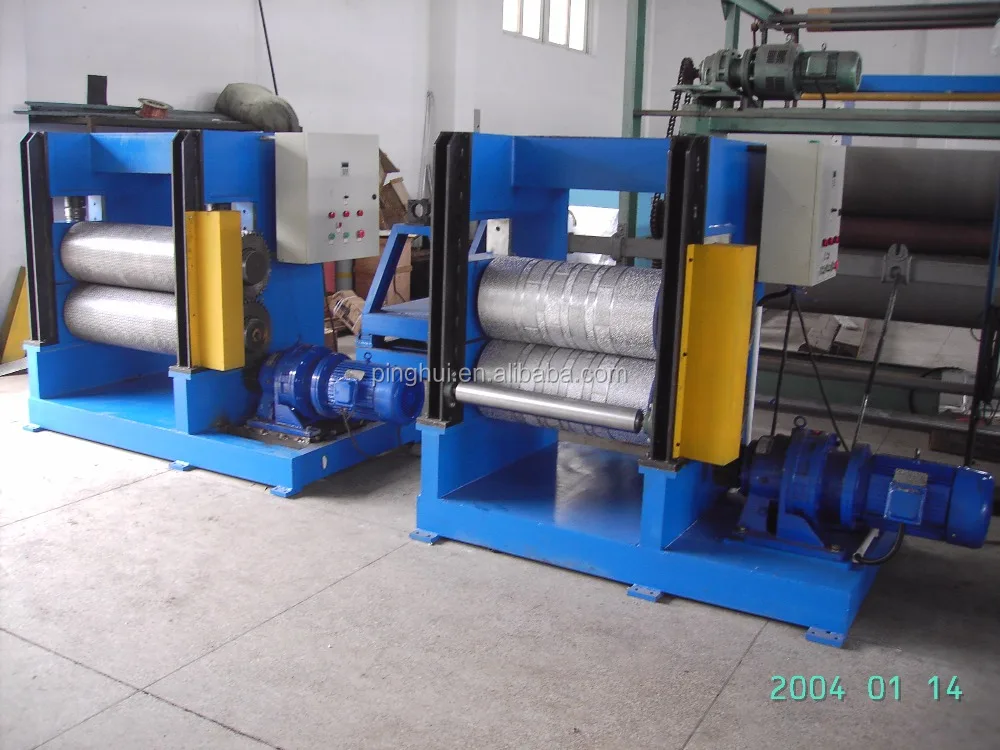

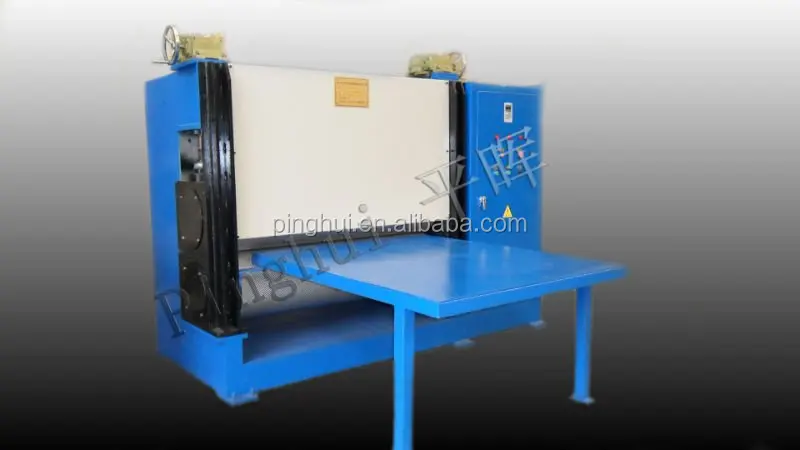

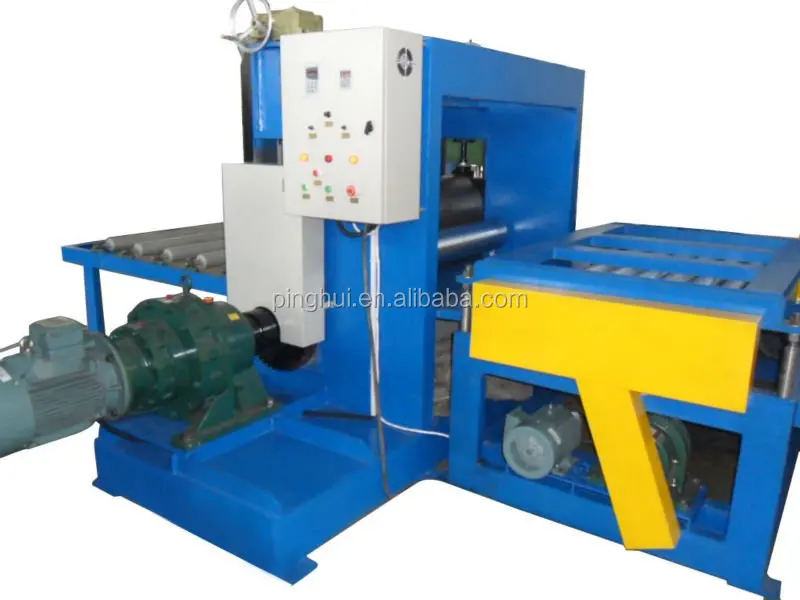

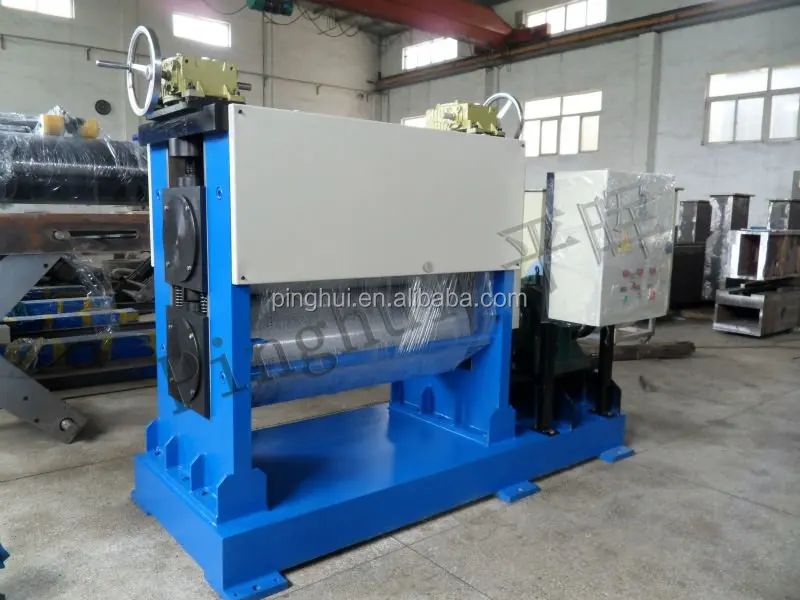

Brick grain steel embossing machine

1   Machine type: Vertical two-roller double side embosser

2   Embossing roller: φ450×1900mm

3   Roller hardness: ≥HRC58-60

4   Roller structure: whole forging

5   Roller heat treatment: tempered and quenched

6   Roller pattern: laser engraving according to customer’s sample

      Precision: ≤0.02mm

7   Machine frame: steel welding structure,overall tempering

8  Line speed: 0~8m/min or as customer’s requirement

9  Press type: reducer feed screw nut

10  Product thickness: 1.5~5mm, for aluminum plate and steel plate

11  Center height: 800

12  Electric control: Operation cabinet
