Philips UVA lamps TL 40W/10R Flexo print TL lamps

Product Overview

Description















Product Name	Cap-Base	Power	Current	Voltage	Length
BL TL MINI 4W/10	G5	4.5W	0.17 A	29 V	150.1 mm
BL TL 6W/10	G5	6 W	0.16 A	42 V	226.3 mm
BL TL-D TL 8W/10 Secura	G5	7.1 W	0.145 A	56 V	302.5 mm
BL TL 8W/10	G5	7.1 W	0.145 A	56 V	302.5 mm
BL TL-D 15W/10	G13	15.9 W	0.335 A	55 V	451.6 mm
BL TL-D 18W/10	G13	18W	0.36A	59V	604 mm

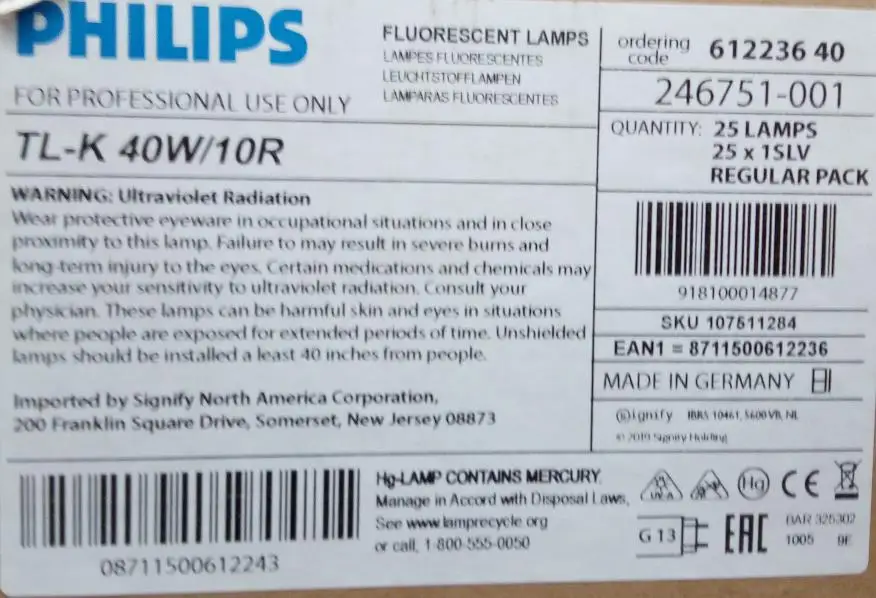

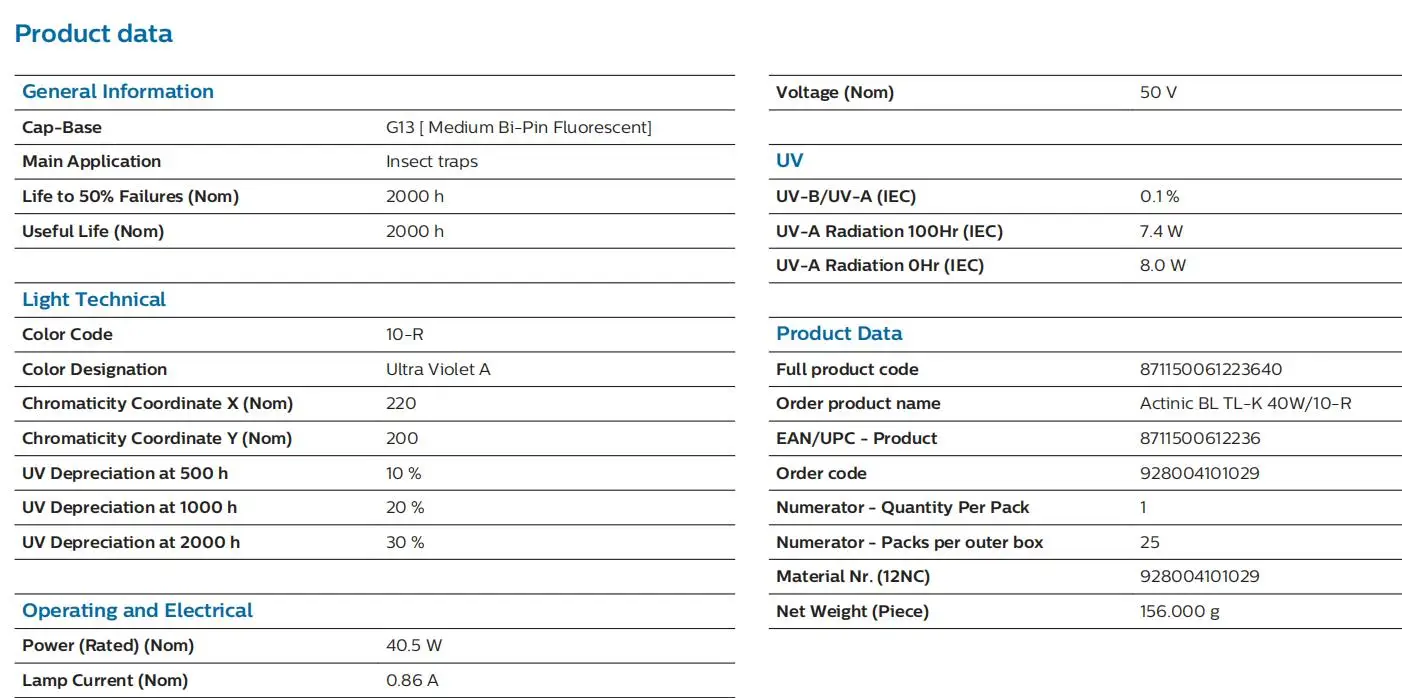

BL TL-K 40W/10-R	G13	40.5 W	0.86 A	50 V	604 mm
TL 60W/10-R	G13	62 W	0.7 A	102 V	/
TL 80W/10-R	G13	80 W	0.83 A	110 V	1514.2 mm
TL 100W/10-R	G13	100W	0.97A	122 V	1778 mm
BL PL-S 9W/10/2P	G23	8.6 W	0.17 A	60 V	167 mm
PL-S 11W/10/2P	G23	11.6W	0.16 A	89V	236.3 mm
PL-L 18W/10/4P	2G11	18W	0.375 A	58V	226.6 mm
PL-L 36W/10/4P	2G11	36W	0.435 A	106V	416.6 mm
BL TL-E 22W/10	G10Q	22W	0.4A	62V	213.5 mm







Tubular, circular or compact
single-ended low-pressure
mercury vapour fluorescent lamps
emitting long-wave UV radiation
between 350 and 400 nm.
The UV-B/UV-A ratio is less than
0.1 % (UV-B: 280-315 nm).
R(Reflector) lamps have an
internal reflector of 200 °.
The PL-S /10 lamp consists of
two single-ended fluorescent
tubes melted together; its lamp
base contains a specially adapted
starter, providing almost
instant starting characteristics.
PL-S /10 lamps can operate on
the same universal ballast as
other PL-S lamps.



Note
UV can be harmful when used in
the wrong way.To ensure safe
use, the instructions of the
equipment manufacturer should
be closely followed
