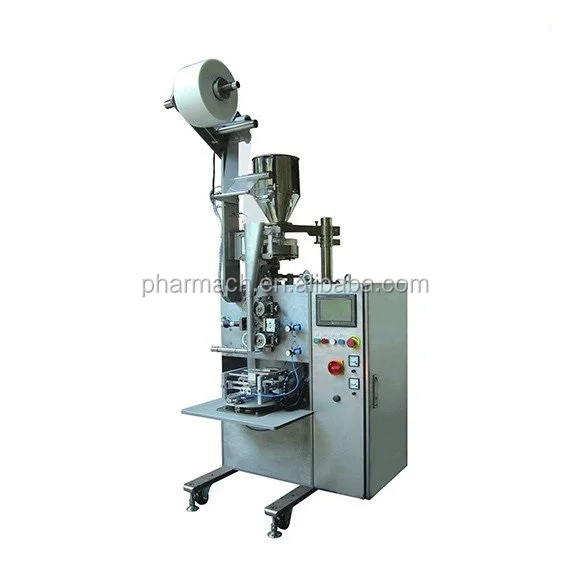

DXDC50 Pyramid tea bag packing machine

Product Overview

Description

DXDC50 Teabag packing machine

Application:

Tea bag machine Model DXDC50 is our new pyramid tea bag packing machine, and it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags which have good perviousness and perspectivity. It is used for the packing of tea leaves, such as green tea, black tea, etc. And it is also used for the pyramid bag or flat bag packing of food spice whose taste exudes through bags.



Specification:

Item	Data
Max.Capacity	50bags/min
Max. Dosage	5~40 cm³
Tea bag capacity	Up to 1.5g~10g
Pyramid bag size	50mm / 60mm / 70mm / 80mm
Flat bag size	(50mm×50mm)/(60mm×58mm)/(70mm×65mm)/(80mm×72mm)
Packing material	P.E.T/Non-woven fabric / Nylon filter fabri
Width of packing materials	120 mm / 140 mm / 160 mm / 180 mm
Air pressure	0.6 MPa
Air consumption	100 L/min
Power	1.2 KW
Power supply	220V   50Hz/60Hz
Net weight	420 kg
Gross weight	550KG
Options	1) Small block materials feeder   2) Safety guard  3) With a stack and count output   4) Pneumatic vacuum feeder
