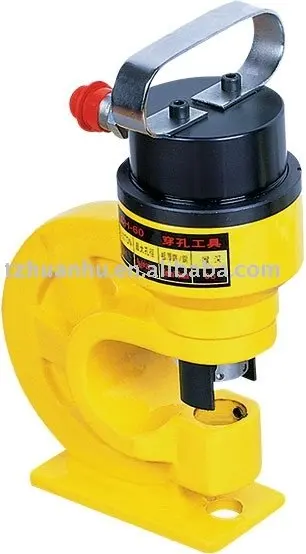

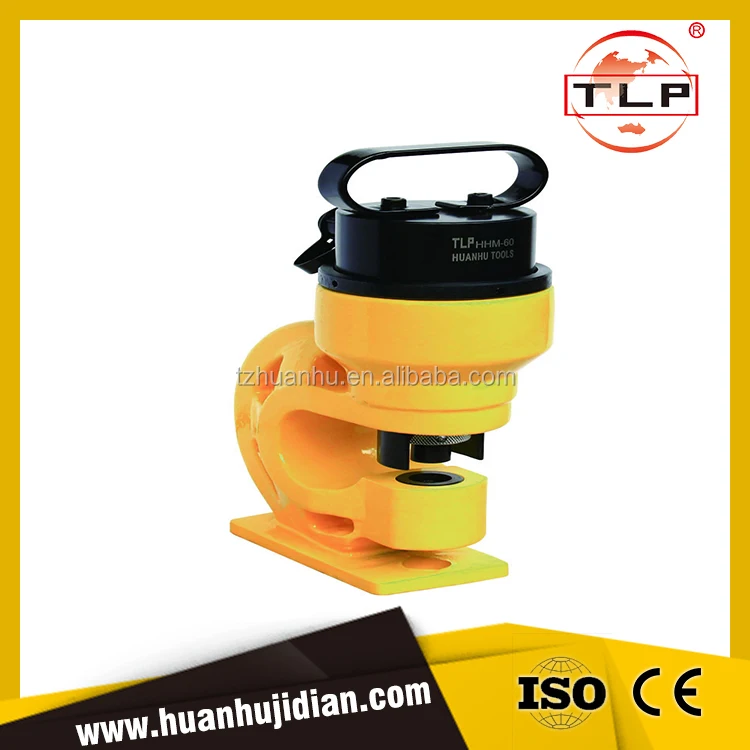

Hydraulic BusBar Punching Tool HHM 60
- Category: >>>
- Supplier: Taizhou Ruiqi Tools Co. Ltd.
Share on (51828748):
Product Overview
Description
Product Description

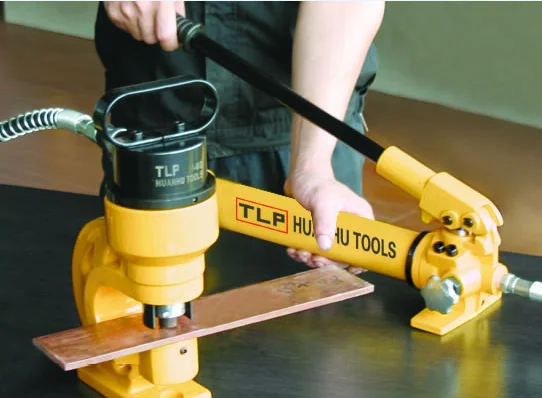

The tool is applicable for punching holes in copper busbars, aluminum busbars and steel plates.
The flat pedestal can provide extra steadiness in operation.
The punching dies are made of high carbon tungsten steel and not easy to wear off.
Model: HHM-60
- Max. force: 31 ton
- Max thickness of busbar: 10 mm
- Max diameter of busbar: 150 mm
- Dip: 95 mm
- Height: 35 cm
- Diameter of punching holes: 3/8" - 3/4"

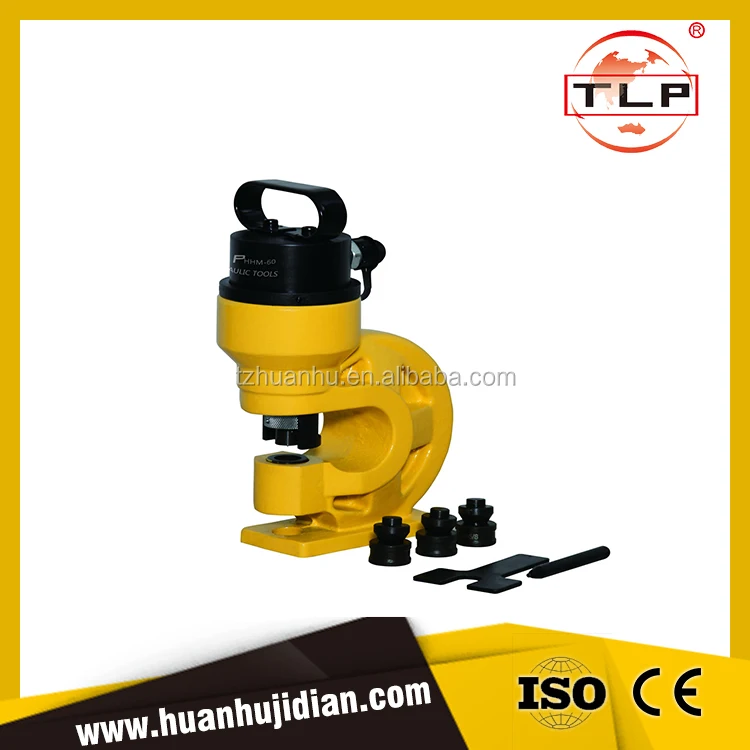

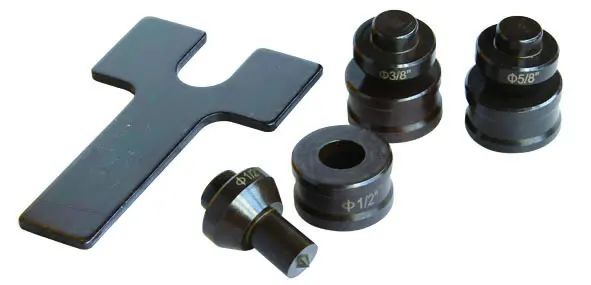

- Standard punching dies supplied: (3/8", 1/2", 5/8", 3/4") X 4 sets
- Shipping weight: 21.5 kg
- Packing: 1 set / wooden case
- Packing dimensions: 40x25x15cm
| MODEL | OUTPUT FORCE (T) | PUNCH DIES | MAX THICKNESS (MM) | THROAT (MM) | G.W.(KGS) | PACKING SIZE (CM) | |
| MILD STEEL | COPPER ALUMINUM BUSBAR | ||||||
| HHM-60 | 31 | 3/8" 1/2" 5/8" 3/4" | 6 | 10 | 70 | 23.3 | 40*25*15 |
| HHM-70 | 35 | 8 | 12 | 110 | 37.4 | 33*20*39 |
