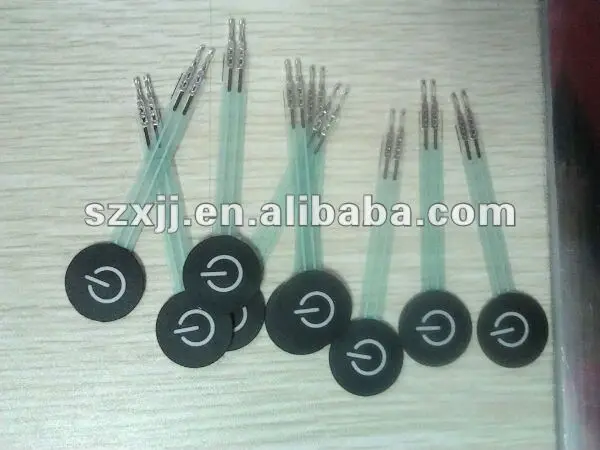

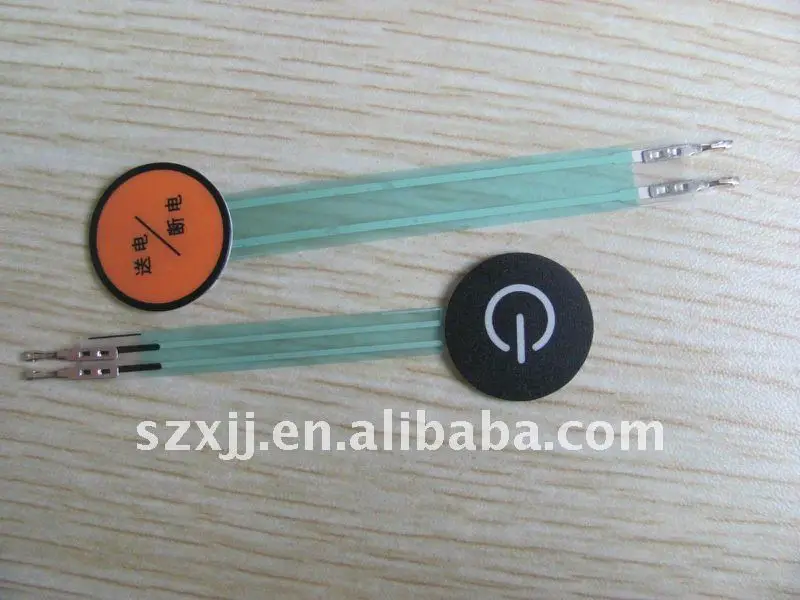

One key button Power on and off metal dome membrane switch keypad control switch panel
- Category: Keypads & Keyboards >>>
- Supplier: Shenzhen XinJieJia Electronic Membrane Switch Co. Ltd.
Share on (518547758):
Product Overview
Description
membrane panel
Maximum circuit rating: 35V DC, 100mA, 1W
Contact resistance: 10 to 500 Ohms (varied from the trace length and material)
Insulation resistance: 100MΩ at 100V
Dielectric withstand: 250V RMS (50 to 60Hz per minimum)
Contact bounce: 5ms or less
Actuation force: Tactile type: 150 to 400g (6 to 14 ounce)
Switch stroke: Tactile type: 0.6 to 1.5mm
Life expectancy: Tactile type: 1, 000, 000 closures or more
Surface hardness: 3H or more
