high power 365nm UV LED Spot Curing System for LCD package

1. 365NM UV LED Spot Curing System – LED Head

(1) Fan cooling: excellent heat dissipation performance, suitable for continous long time radiation.

 Dimension: DΦ12, L88mm

 Fan's size: 24*24*24mm

 Model NO.: LHFC084-03(Φ3mm), LHFC084-04, LHFC084-06, LHFC084-08, LHFC084-10, LHFC084-12.

(2) Natural cooling: No vibration, suitable for using in small space or clean room, not suitable for continous long time radiation.

 Dimension: DΦ12, L49mm or L118mm

 Model NO.: LHS049 or LHS118

(3)  Spot diameter and optical intensity: (By Ushio illuminometer)

Spot Diameter       Distance     Optical Intensity

Φ3mm                      9mm            8000 mW/cm²

Φ4mm                     10mm          5000 mW/cm²

Φ6mm                     17mm          2300 mW/cm²

Φ8mm                     20mm          1200 mW/cm²

Φ10mm                  25mm             700 mW/cm²

Φ12mm                  30mm             450 mW/cm²

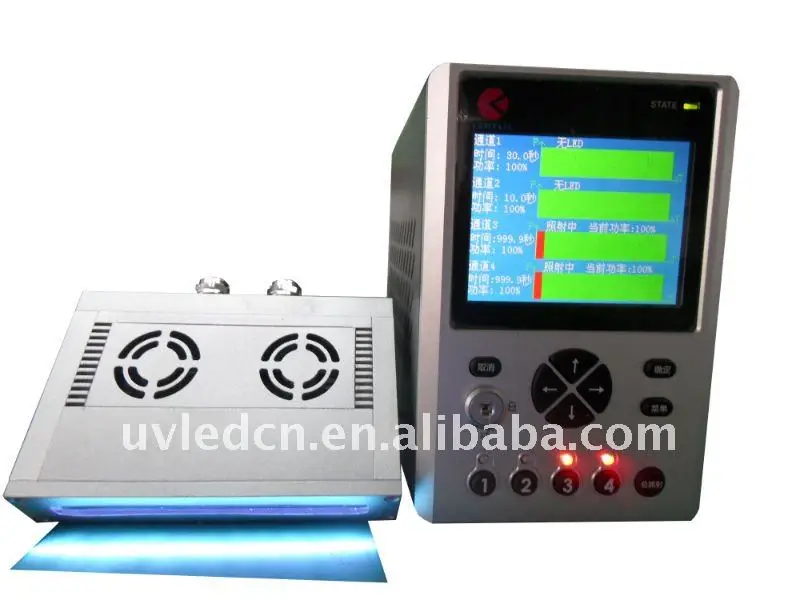

2. 365NM UV LED Linear/Area Curing System – LED Head

(1) Model NO: UVL-100

Dimension: 120*240*96 mm

Emitting Area: 100*3 mm

Cooling method: Air cooling

Max. Intensity: 1500mW/cm2

Wavelength: 365nm

Radiation distance: 5 -10 mm

(2) Model NO: UVL-55

Dimension: 55*18*85 mm

Emitting Area: 55*3 mm

Cooling method: Air cooling

Max. Intensity: 1500mW/cm2

Wavelength: 365nm

Radiation distance: 5 -10 mm

(3) Model NO.: UVL-350

Dimension: 350L*8W*50H (mm)

Emitting Area: 350*8 mm

Cooling method: Air cooling

Wavelength:  365nm

Max. Intensity: 500mW/cm2

(4) Model NO: UVS-20

Dimension: 94*77*50 mm

Emitting Area: 40*50 mm

Cooling method: Air cooling

Radiation distance: 5 -10 mm

Max. Intensity: 500mW/cm2

Wavelength: 365nm

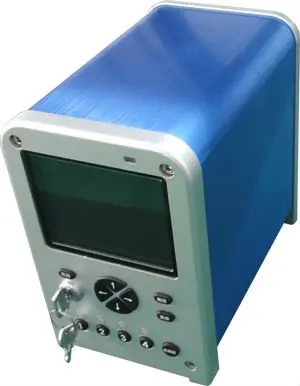

3. 365NM UV LED Curing System - Controller

UVEC-4II

UVEC-4III

Controller Model NO.: UVEC-4II / UVEC-4III

UV LED cure heads’ qty :

1 - 4 PCS of Spot LED heads

1 - 2 PCS of linear/Area LED heads

Controller dimension: 180L*100W*146H(mm)

Time setting: 0 - 999.99 S

Power setting: 0 - 100%

Radiation Mode: Constant power radiation, Step power radiation, Foot pedal control

Power supply voltage: AC220V±15%(50/60HZ)

Material: Aluminum

Additional: Operating Manual, Key, Cables, Power supply

Guaranteed Shelf life: 1 Year

Main Applications:

(1) UV light curing

(2) UV detection and analysis instrument

(3) UV disinfection

(4) Biological applications

(5) Medicine and Medical Applications
