Product Description

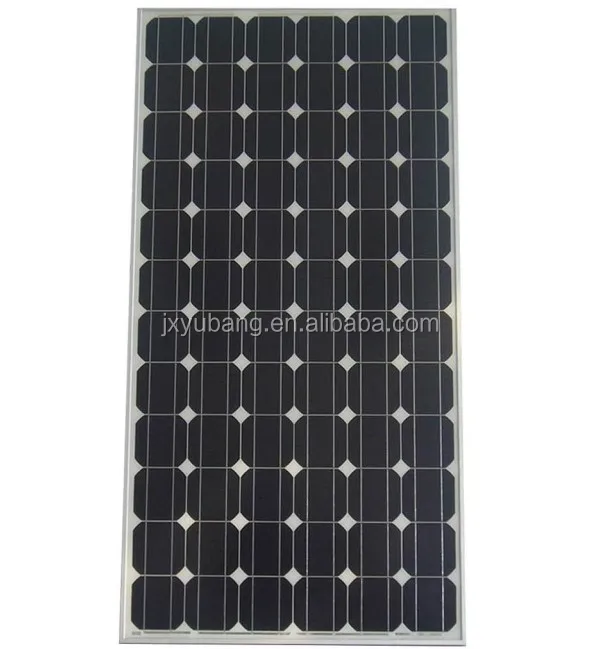

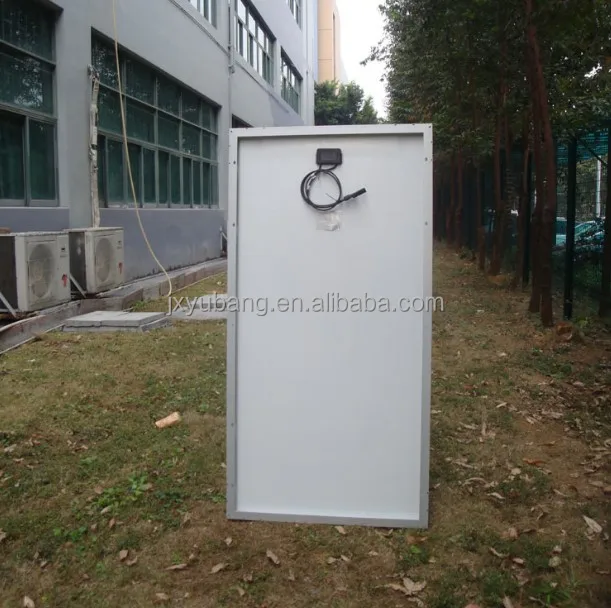

Winbright 190 Watt Monocrystalline Solar Panel
Winbright Mono crystalline Solar Panels can be used for several applications such as camping, traveling, boating, and at home. These reliable panels are capable of withstanding heavy snow and strong wind loads.
Strctly tested solar modules; no hot-spot heating guaranteed
Bypass diode minimizes power drop caused by shade
25-year more transferable power output warranty and 10-year material and workmanship warranty
For more information you can contact the official customer service or visit the official website
Description
With a sleek design and durable frame, the Winbright 150 Watt 12 Volt Mono crystalline Solar Panel is a great place to start your off-grid system.
Potential Uses
Can be used in various off-grid applications that include 12 and 24 volt arrays.
Mono crystalline Solar Panels are ideal for many off-grid applications and its corrosion-resistant aluminum frame allows for extended outdoor use.
190W SOLAR PANEL ELECTRICAL CHARACTERISTICS
Power Class
190W
Max. Power (Watts)
190W
Short Circuit Current (Amp)
6.16A
Open Circuit Voltage(Volts)
43.20V
Maximum Power Current(Amp)
5.28A
Max. Power Voltage(Volts)
36.00V
Minimum performance at standard test conditions,stc1 (power tolerance 0-3%)
Winbright solar panel Advantages:
1,Solar panels comes out of Winbright,all have designed with 10A Bypass Diode to protect solar panel.
Shade reduces the efficiency of photovoltaic system and shortens the lifetime of photovoltaic modules because of hot spot.When there is shade on the solar panels,it occurs hot spot,the Diode acts as Bypass,It makes the current generated by other solar cells flow out of the diode, making the solar power system continue to generate electricity.It will not occurs Circuit failure if there is problem on one piece of solar cell.
2,PV Cables Winbright designed with 2.5mm2 or 4mm2 special PV Cables which is TUV or UL certified.To protect the system enough safe.
3,Winbright use A grade Chinese solar cells,No color differences,with excellent workmanship to assemble all different materials together. Good qulity Thick TPT materials,and 3.2mm toughed glasses,and 2 layer of EVA materials,thick aluminum frame to protect the solar panels working well.
4,All of the solar panels designed with cables 50cm or 90cm length plus MC4 Connectors to make your system assembly much more convienent.
Production Line:
Before Winbright solar panels comes out ,they will be strictly produced and tested as Following procedures:
1, Solar Cell Sorting(To Separate good and bad efficiency cells
2,Soldering each solar cells together as array.
3, lamination
4,Frame Aluminum
5,Pre factory test
Packaging & Shipping
