14500 lifepo4 battery

Product Overview

Description

Specification:

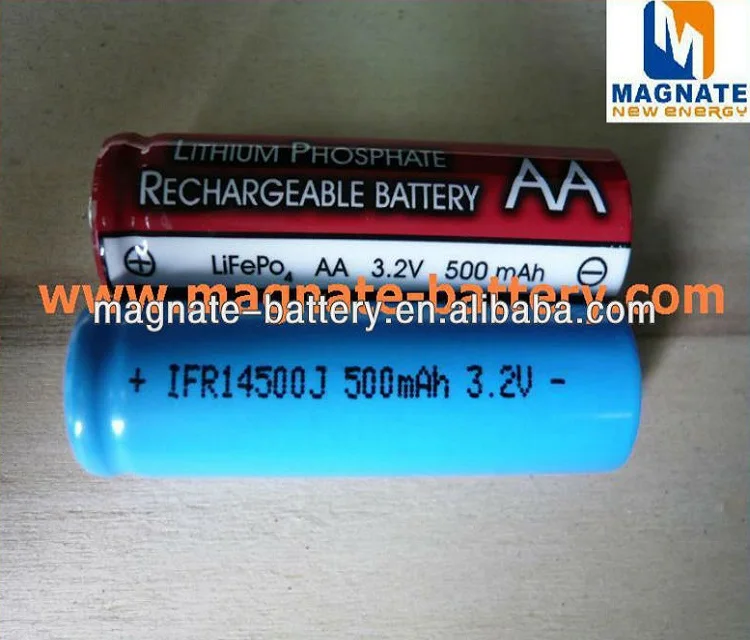

Model No.:LiFePo4 battery IFR14500(AA)
Nominal capacity: 500mAh
Nominal voltage:3.2V
Dimension:14.3x50.5mm

Inner resistance:≤ 80mΩ

Discharge cut off voltage: 2.0V

Charge cut off voltage: 3.65V

Operating temperature range:-20~+60°C

Charging temperature:0~+45°C

Charging current:0.5C

Discharge current: 1C



Advantage:

1. High work voltage: 3.2V (single cell)


2. High capacity


3. No memory effect


4. Low self-discharge


5. No pollution


6. Long cycle life(more than 1000times)


7. Best price


8. Fast delivery


9. Top quality



Application:

Lawn solar lighting.Torch lighting,Emergency lighting systems,Digital camera, E-bike.Wireless sensors,Toys. Laptop, Lighting, LED and other electronic products.







LiFePo4 General Battery
Series	Model	Voltage (V)	Capacity (mAh)	Size		Standard charge	Quick charge	Weight (g)
				Diameter (mm)	Height (mm)
10 Series	IFR10130E/30	3.2	30	10.3	13.2	0.5C	1C	5
	IFR10150E/30		30	10.3	15.5			6
	IFR10150E/50		50	10.3	15.5
	IFR10440E/220		220	10.3	44.2			10
	IFR10440E/210		210	10.3	44.2
	IFR10440E/200		200	10.3	44.2
14 Series	IFR14240E/210		210	14.2	24.3			9
	IFR14240E/200		200	14.2	24.3
	IFR14500E/300		300	14.2	50.2			18.5
	IFR14500E/400		400	14.2	50.2
	IFR14500E/500		500	14.2	50.2
	IFR14500E/600		600	14.2	50.2
	IFR14650E/700		700	14.2	65.3			21
	IFR14650E/600		600	14.2	65.3
15 Series	IFR15266E/200		200	15.2	27.0			11
	IFR15266E/190		190	15.2	27.0
16 Series	IFR16340E/500		500	16.2	34.2			17.5
	IFR16340E/400		400	16.2	34.2
	IFR16340E/300		300	16.2	34.2
18 Series	IFR18290E/600		600	18.5	29.3			22
	IFR18290E/500		500	18.5	29.3
	IFR18290E/400		400	18.5	29.3
	IFR18500E/1100		1100	18.5	50.2			32
	IFR18500E/1000		1000	18.5	50.2
	IFR18500E/900		900	18.5	50.2
18 Series	IFR18650E/1400		1400	18.5	65.3	0.5C	1C	40
	IFR18650E/1300		1300	18.5	65.3
	IFR18650E/1200		1200	18.5	65.3
	IFR18650E/1100		1100	18.5	65.3
22 Series	IFR22430E/1200		1200	22.5	43.3			39
	IFR22430E/1100		1100	22.5	43.3
	IFR22430E/1000		1000	22.5	43.3
	IFR22650E/2000		2000	22.5	65.3			60
	IFR22650E/1900		1900	22.5	65.3
	IFR22650E/1800		1800	22.5	65.3
26 Series	IFR26430E/1800		1800	26.5	43.3			54
	IFR26430E/1700		1700	26.5	43.3
	IFR26430E/1600		1600	26.5	43.3
	IFR26650E/3000		3000	26.5	65.3			85
	IFR26650E/2900		2900	26.5	65.3
	IFR26650E/2800		2800	26.5	65.3
32 Series	IFR32600E/3700		3700	32.5	60.5			125
	IFR32600E/3600		3600	32.5	60.5
	IFR32600E/3500		3500	32.5	60.5
	IFR32900E/5700		5700	32.5	90.5			188
	IFR32900E/5500		5500	32.5	90.5
	IFR32900E/5300		5300	32.5	90.5
42 Series	IFR42120E/12000		12000	42.5	120.5			390
	IFR42120E/10000		10000	42.5	120.5
	IFR42120E/9000		9000	42.5	120.5
