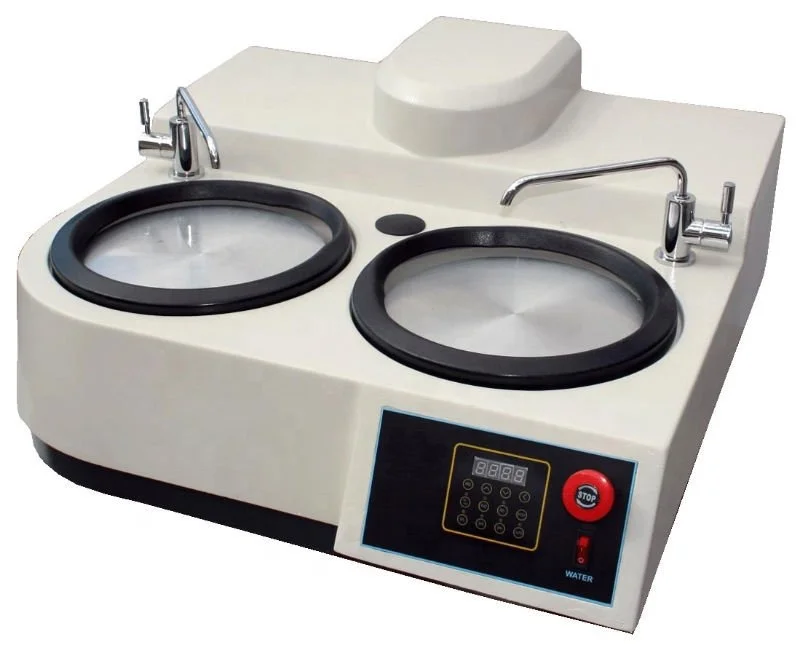

METAPOL 2200/2250 SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE

Product Overview

Description

METAPOL 2200/2250 SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE



Features:

1. Variable speed up to 1000 rpm

2. CCW and CW direction control

3. Rapid speed selection ( approximately 100, 200, 300 rpm)

4. Timer (count down to zero and turns off) range 1 to 9999 seconds

5. Emergency stop switch

6. Swinging water spout for positioning over the grinding wheel

7. Control access easily accessible at the back of the machine -designed for multiple voltage requirements - easy to change at the back of the machine (110V, 220V).

8. 0.75 hp high torque motor

9. Splash guard and cover





Technical Specifications:



PRODUCTS	METAPOL SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE
MODEL	METAPOL 2200D/ METAPOL 2250D	METAPOL 2200S/ METAPOL 2250S		METAPOL2200SE/ METAPOL 2250SE
Working wheels	200MM/250MM diameter
Number of stations	Double wheel
Speed	300/600RPM	Variable up to 1000 rpm	Variable up to 1000 rpm
Power Supply	380V3P	change at the back of the machine (110V, 220V)	change at the back of the machine (110V, 220V)
Weight	55 kg		70 kg
Dimensions (WxDxH)	30” x 28” x 13” (760 mm x 710 mm x 330 mm)
Foundation base	Post sleeve in sheet metal		Post sleeve in casting
Optional power head	AUTOPOL 1000
