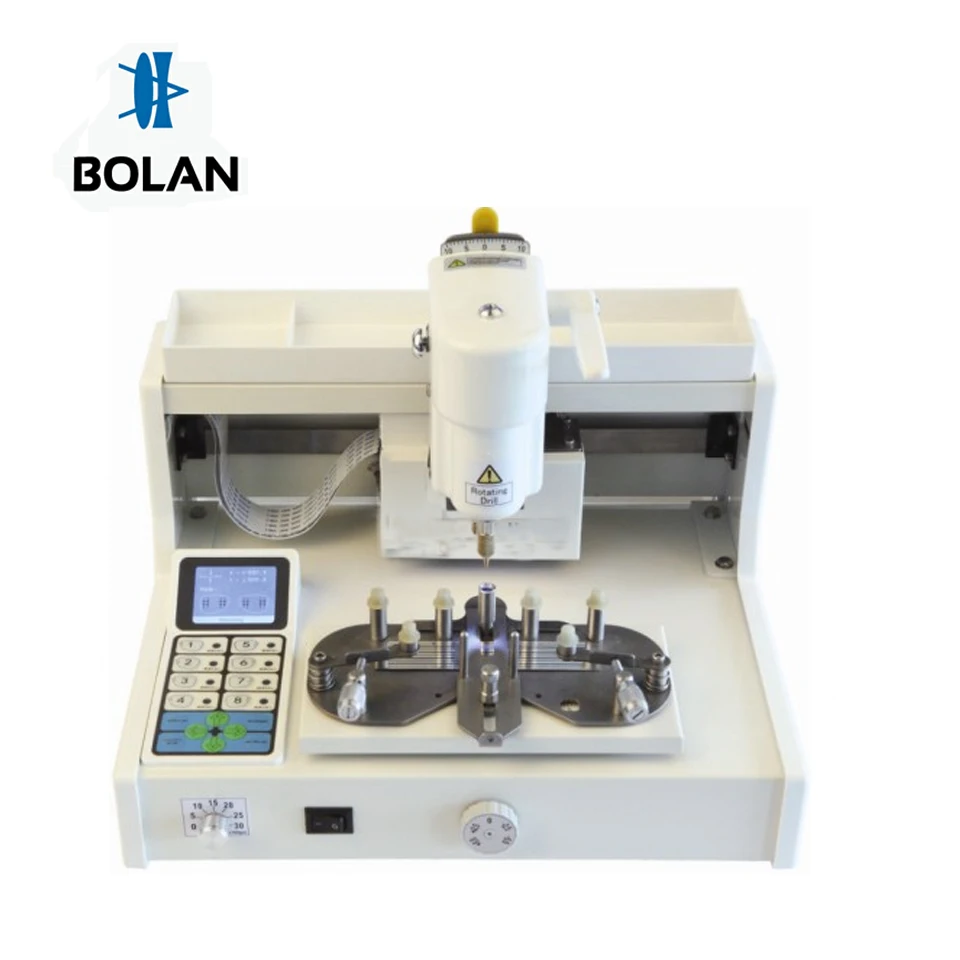

optical digital 3G drilling machine

Product Overview

Description



Main Functions

 The operation procedures are highly intelligent and totally digital.

Compared to the hole position of the pattern lenses,it has higher process accuracy whose process deviation is less than 0.075mm in both X-axis and Y-axis.

It has auto_position clamping equipment which allows to remain the same process accuracy after the change of clamps.

The screen shows the drill position and coordinates data,and gives guidance to the
operation.
The hole position memory function allows to process the set hole positions continuously.

 There're two measure modes to choose which are original pattern measure mode and frame position measure mode.



 It has mirroring mode in the process.

The head can automatically reposition if it's removed from its position accidently.

The instrument drills automatically in a set order,and can be corrected by pressing the number button if any hole is missed by wrong operations.
