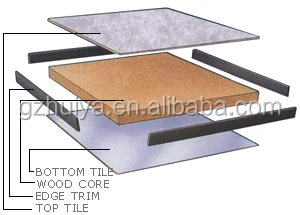

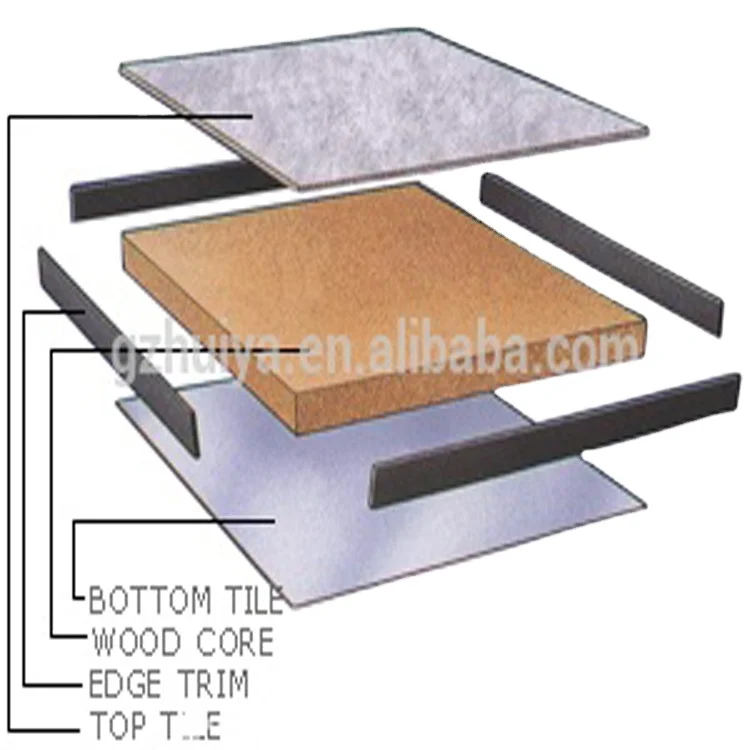

Woodcore panels is constructed from a High Density Particleboard core with a galvanized steel sheet/HPL/PVC top and galvanized steel sheet bottom.The core is protected with a full depth plastic edge band thus fully encapsulation the core.Complete electrical continuity is assured.The panel is designed for loose laid. Woodcore panels have a class A flame spread rating and provide excellent rigidity, durability, and acoustic performance.
Certification
The panel has been tested to the BSEN12825 3/A/3/2 specification and is certified as being fully compliant. The classifications shown are based on a deflection under working load not exceeding 2.5mm and a safety factor of
3. Uniformly distributed loads are shown for information as they do not form part of BSEN 12825 Specification.
Finish
The galvanised steel surface is suitable for bonding a wide range of factory applied finishes, to include wood, ceramic, vinyl, high pressure laminate and rubber.
Manufacture
Our panels are manufactured to the highest quality standards and every effort is made during manufacture to protect the environment, at the end of the product lifetime the components are fully recyclable where facilities exist.
Characteristics
· High strength to weight performance.
· Full range of factory laminated finishes.
· Class A flame spread rating rating.
· Internally grounded.
· Excellent rolling load performance.
· Excellent acoustics
· Available with FSC Certified Woodcore board.
Applications
General Office, Educational, Call Centres, Banking and Dealer areas, Hotel and Leisure
About us

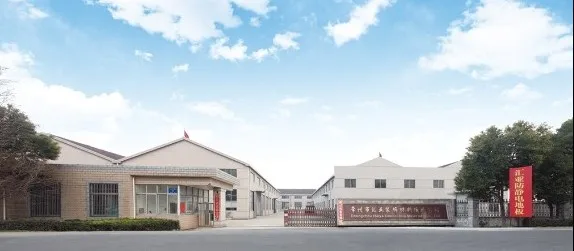

HUIYA COMPANY is the fastest growing raised access flooring company in China,we have 2 factories to produce raised access flooring systems,one located in Guangzhou city and another located in Changzhou city,allowing HUIYA to service both large & small projects.

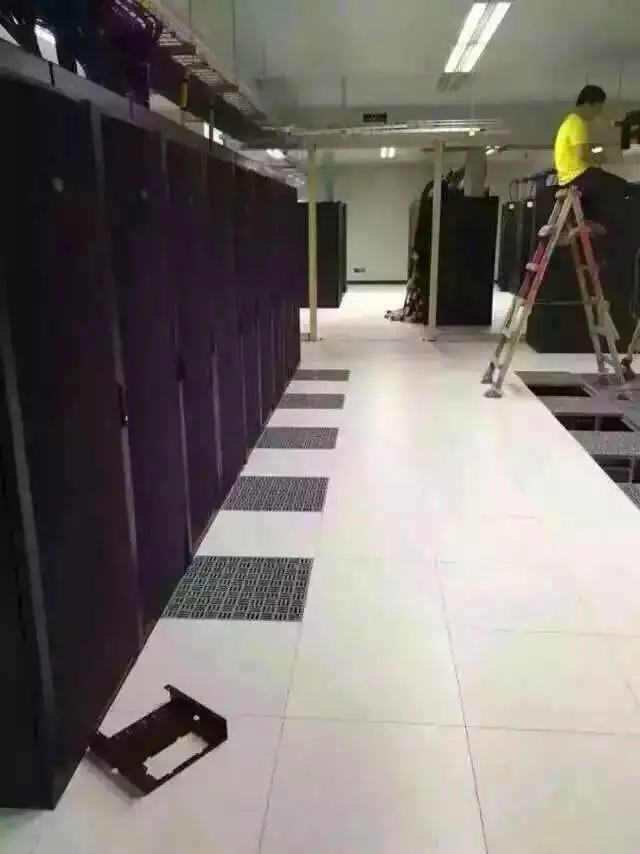

We have supplied and installed access flooring for a variety uses such as computer rooms, meeting rooms, data processing centres and offices. HUIYA Access Floors is ISO 9001 & ISO14001 accredited for both its manufacturing and installation operations. All designed and manufactured to the latest industry standards and backed up by our industry-leading in-house product testing and technical support facilities.

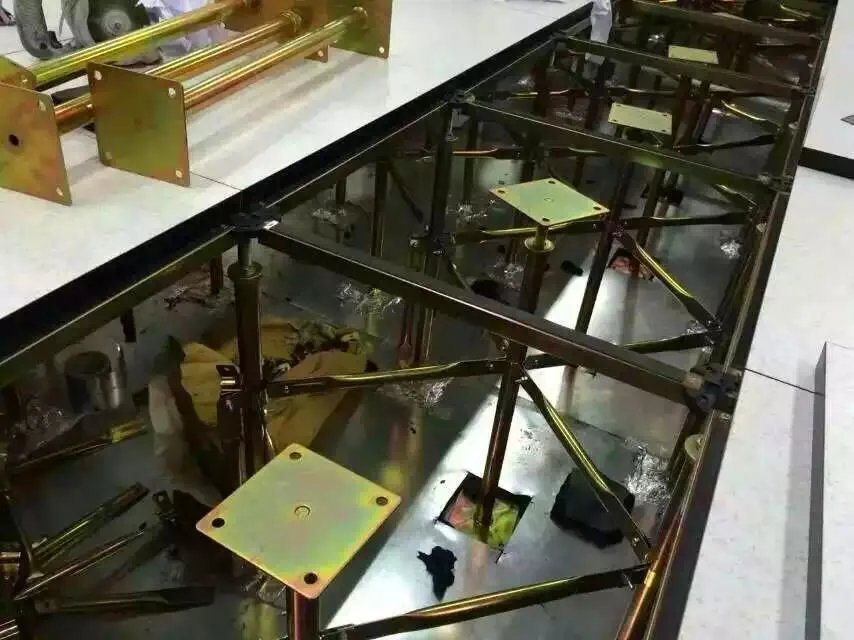

We could produce: antistatic steel cementitious raised flooring(HPL raised flooring,PVC/Vinyl Raised flooring,Ceramic raised flooring),woodcore access floor,OA bare panel,perforated panel/air flow floor,calcium sulphate core raised flooring,Aluminum Solid Panel,pedestal,stringer
Why an Access Floor?
* Construction programmes are reduced by at least two weeks per floor due to elimination of a sand cement screed.
* As warm air rises, considerable cost savings are achieved by an underfloor air plenum delivering conditioned air exactly where it is needed - compared with the traditional uneconomic alternative of forcing conditioned air from the ceiling.
* Maximum flexibility for the installation and reconfiguring of services to equipment and workstations a matter of hours.
* In new construction the use of an access floor for total service distribution reduces the overall building height by about 13%. Or, for the same height, you can increase the number of floors.
