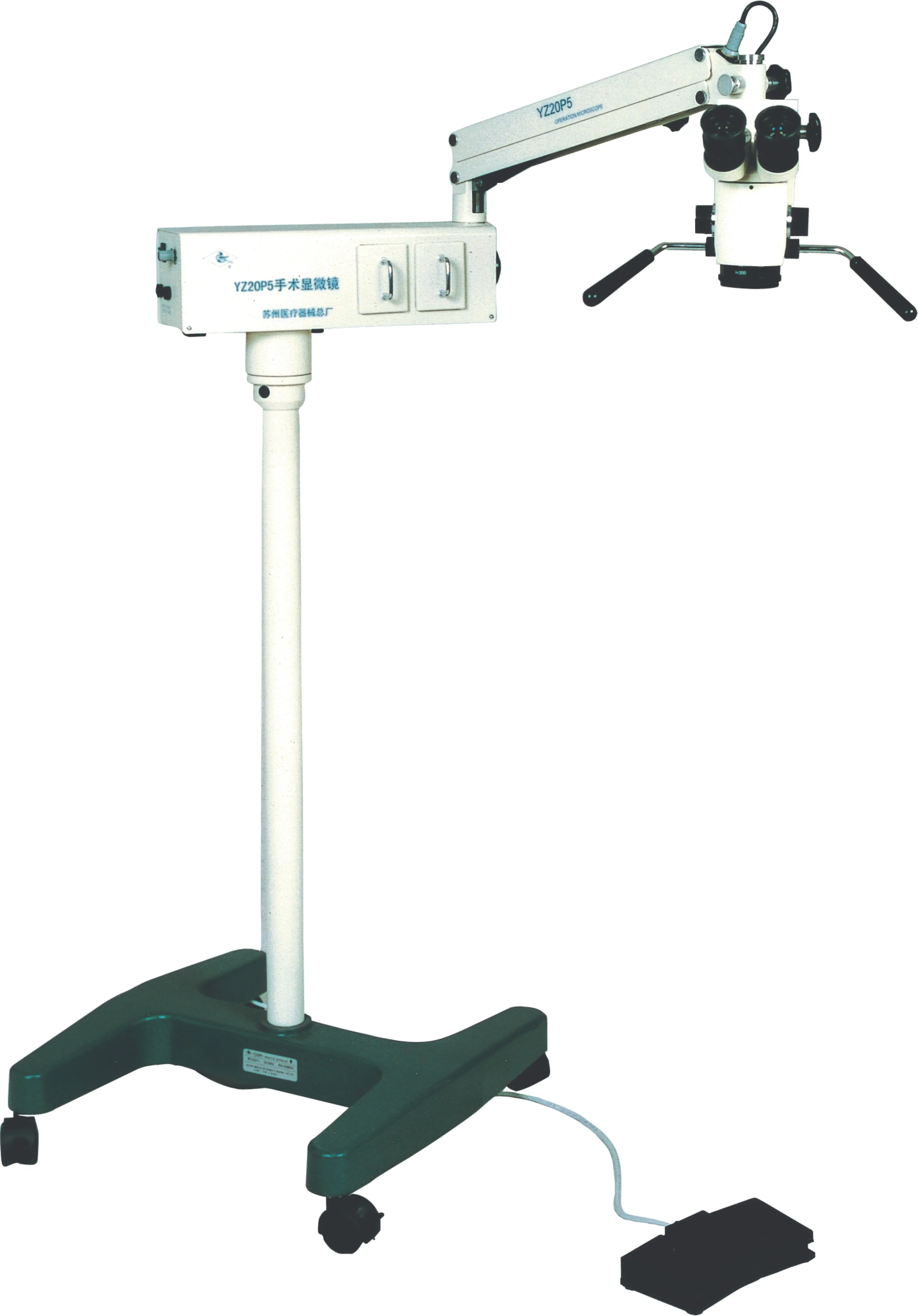

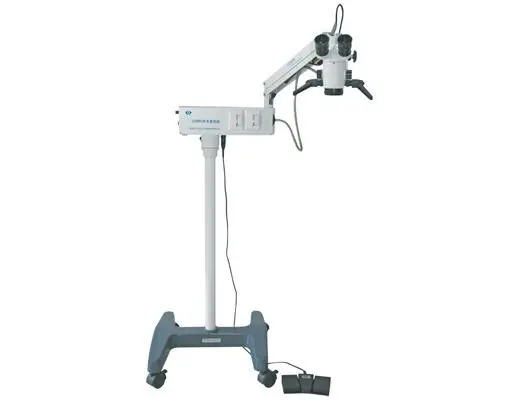

chinese ophthalmic portable Operation microscope YZ20P5 with 3 magnifications CE ISO certificate from 66 vision
- Category: >>>
- Supplier: Shanghai Bolan Optical Electric Co. Ltd.
Share on (520378478):
Product Overview
Description
Product Description
Operation microscope Characteristics:
·All the lenses are multi-coated,mildewproof and anti-reflective.
·Optional objectives: f250/f300/f350f/f400.
·Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.

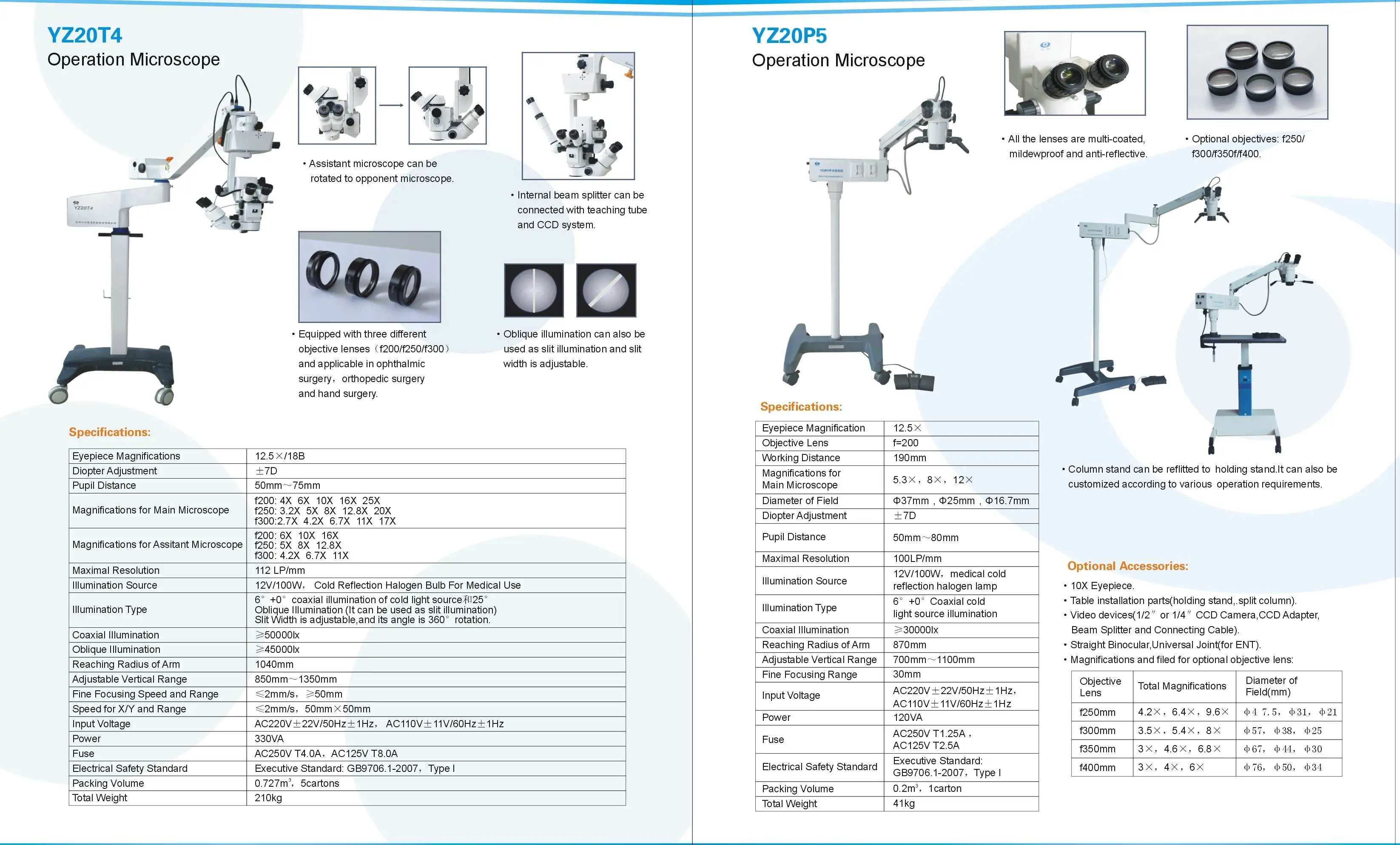

Specifications:
Eyepiece Magnification | 12.5× |
Objective Lens | f=200 |
Working Distance | 190mm |
Magnifications for Main Microscope | 5.3×,8×,12× |
Diameter of Field | 37mm,25mm,16.7mm |
Diopter Adjustment | ±7D |
Pupil Distance | 50mm~80mm |
Maximal Resolution | 100 LP/mm |
Illumination Source | 12V/100W,medical cold reflection halogen lamp |
Illumination Type | 6°+0°Coaxial cold light source illumination |
Coaxial Illumination | ≥30000lx |
Reaching Radius of Arm | 870mm |
Adjustable Vertical Range | 700mm~1100mm |
Fine Focusing Range | 30mm |
Input Voltage | AC220V±22 V / 50Hz±1Hz,AC110V±11V /60Hz±1Hz |
Power | 120VA |
Fuse | AC250V T1.25A ,AC125V T2.5A |
