X6325 (Fresadoras de Torreta) Vertical Turret milling machine with taiwan high speed milling head
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (520860027):
Product Overview
Description
X6325 (Fresadoras de Torreta) Vertical Turret milling machine with taiwan high speed milling head
Product Description
Turret Milling Machine - X6325
with ISO40 spindle bore table size 254x1270mm
254x1370mm ,can equipped with X,Y,Z axis power feed,
slotting head, coolant system,variable milling head and so on.
milling head is with front to back..
3HPmilling head motor,rectangular guide way on Y & Z axis,lined with TF wearable material.
model | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | X6325D | XU6325 | X6330 | X6330A | X6333 | X6333A | |
table size | 230*1067 | 254*1270 | 250*1270 | 305*1370 | 330*1370 | ||||||||
230*1246 | 54*1370 | 305*1500 | 330*1500 | ||||||||||
table travel | x axis | 650/840 | 850/950 | 770 | 870/1000 | 840/1000 | |||||||
y axis | 305 | 400 | 420 | 420 | 380 | 368 | |||||||
z axis | 400 | 420 | 420 | 400 | 400 | 430 | 450 | ||||||
distance from horizontal spindle to table | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
T-slot of table(no./width) | 3*16 | ||||||||||||
spindle taper | R8(standard);ISO 30/ISO40(optional) | ISO40 | R8 | ISO40 | |||||||||
spindle speed(range/steps) | standard | 65-4500 50hz/80-5440 60hz | 65-4500 50hz/80-3750 60hz | 65-4500 50hz/80-5440 60hz | |||||||||
optional | 65-4500 rpm(variable) | 65-3750(variable) | 65-4500 rpm(variable) | 65-3750(variable) | |||||||||
spindle travel | 127 | ||||||||||||
auto-quill feed | 0.04/0.08/0.15mm/r(3steps) | ||||||||||||
ram travel | 312 | 470 | 500 | ||||||||||
head swivel(left to right) | 90° | ||||||||||||
head swivel(front to rear) | 45° | fix | 45° | 45° | fix | 45° | fix | ||||||
main motor power | 2.25kw/3hp | 3.75kw/5hp | 2.25kw/3hp | 3.75kw/5hp | |||||||||
Standard accessories:
Tie rod\\electrical box\\work light\\manual oil pump\\tool box with toolsOptional accesries:
X/Y/ power feed
Z axis lifting motor
Oil tray
Coolant system
2 axis DRO
3 axis DRO
R8 collet (8 PCS)
58 PCS calping kit

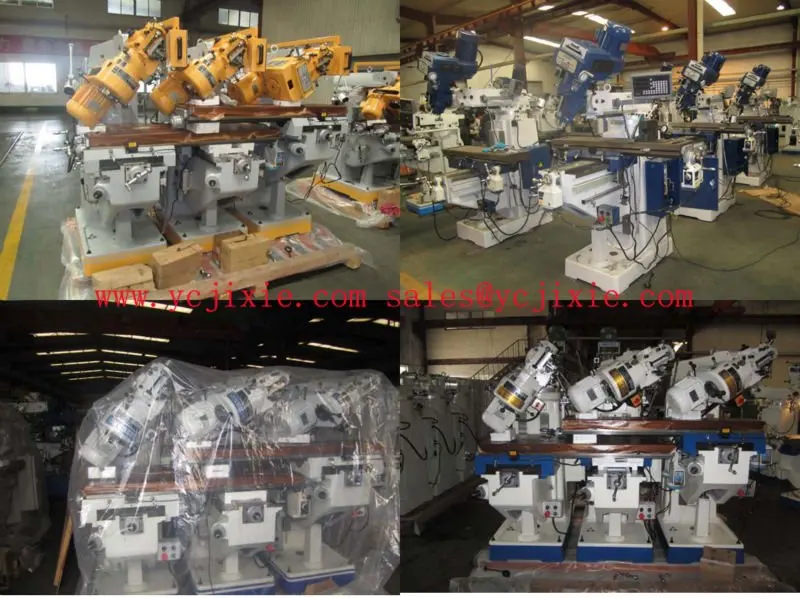

X6323A

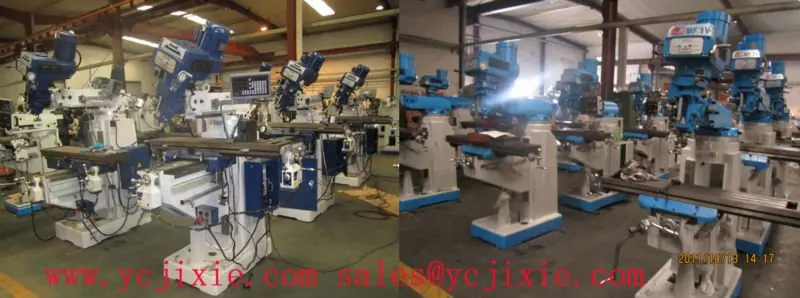

X6323B

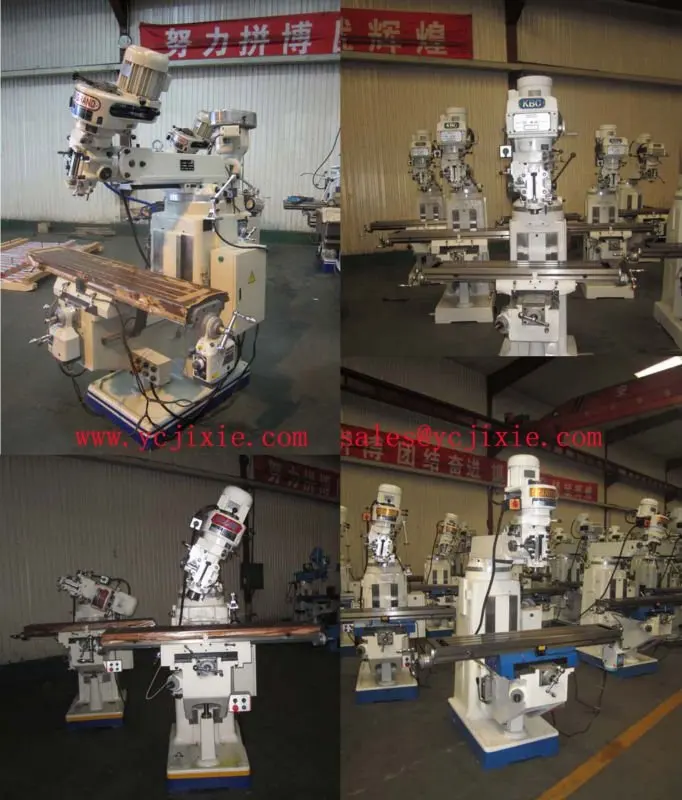

X6325A,X6325B
X6325C

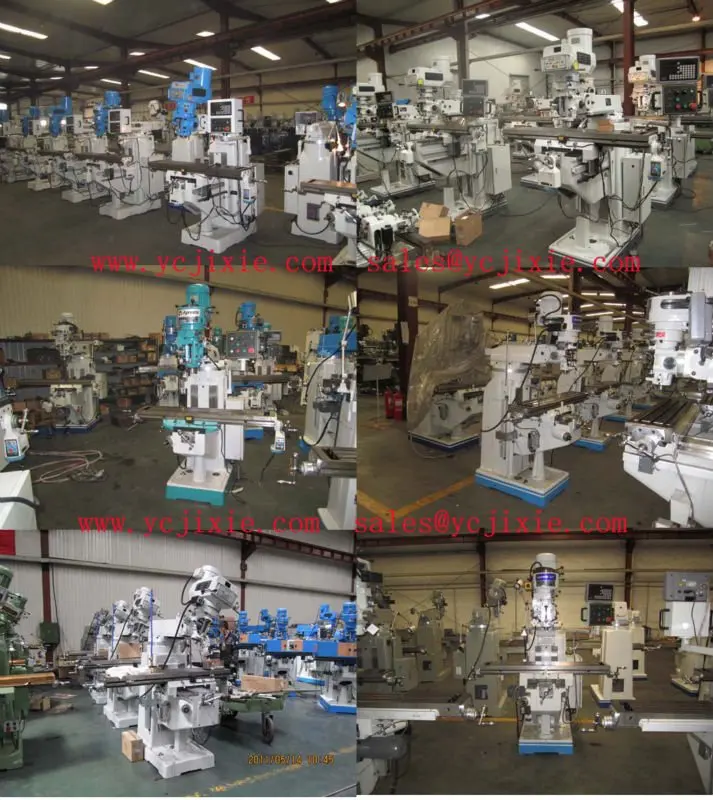

X6325

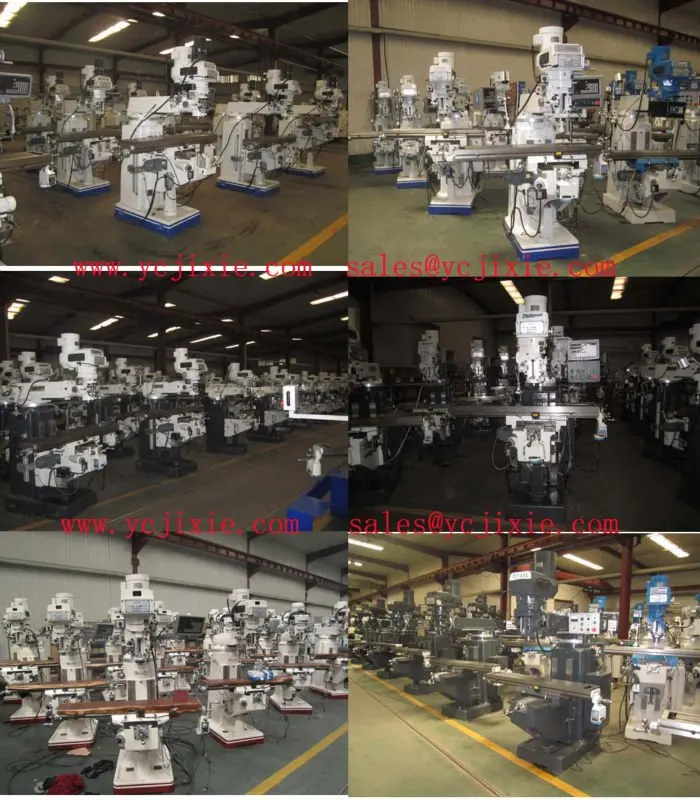

X6325D

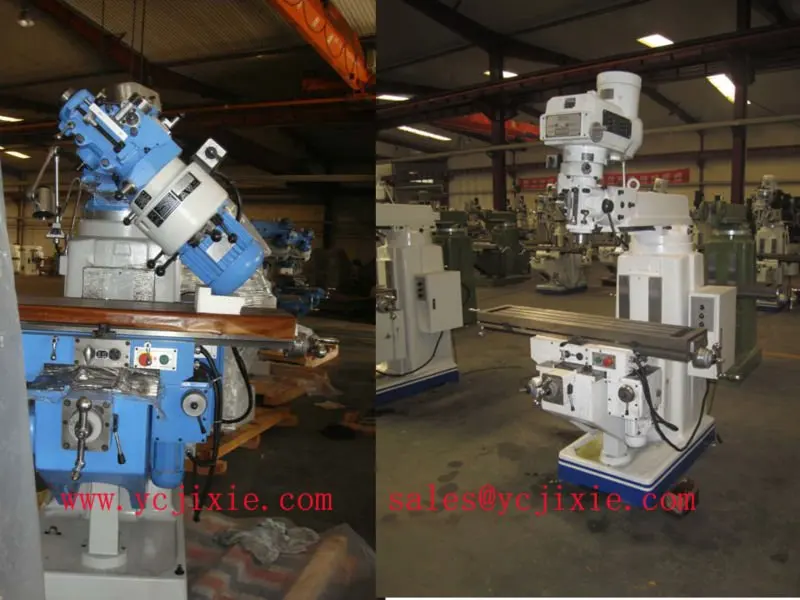

XU6325
X6330,X6330A

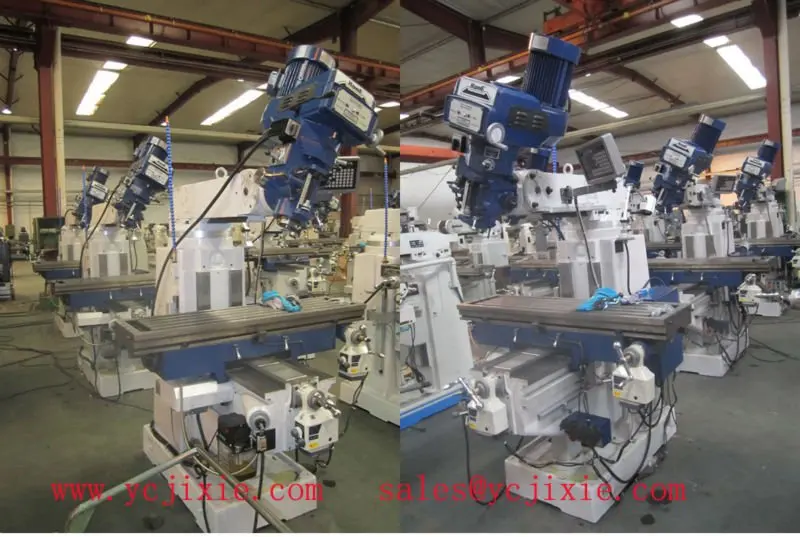

X6333,X6333A
