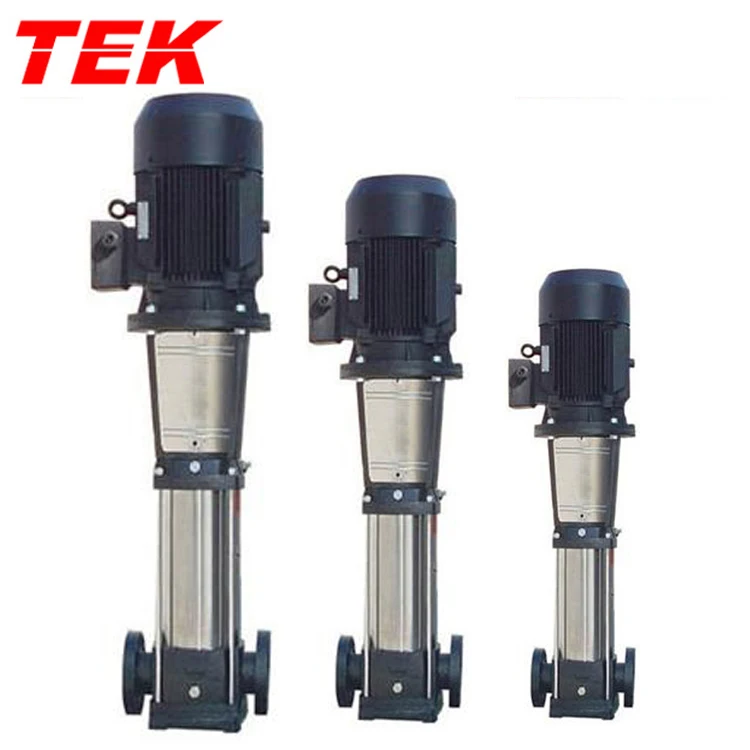

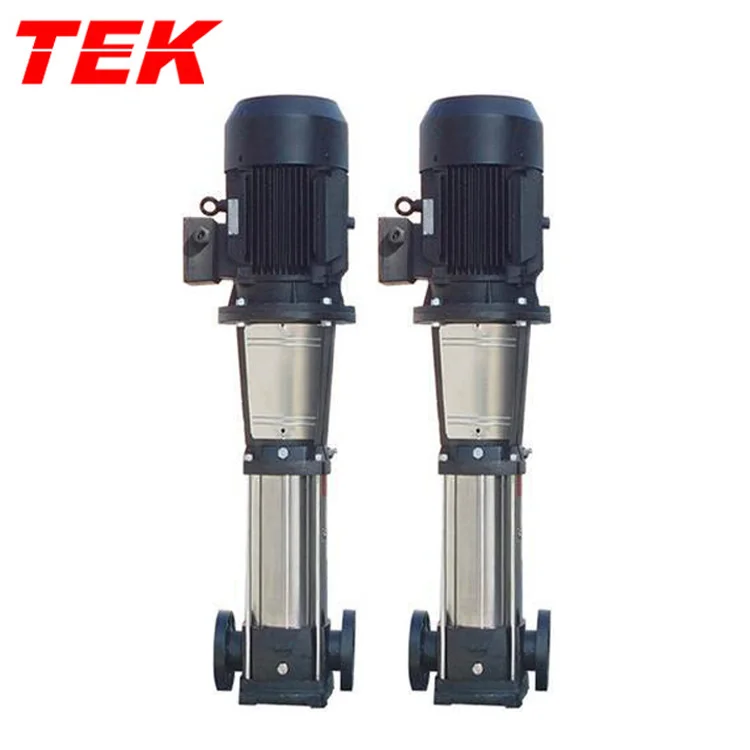

Good price!!! CDL Series Stainless Steel Vertical Multistage Centrifugal Pump Manufacturer OEM

Product Overview

Description

Good price!!! CDL Series Stainless Steel Vertical Multistage Centrifugal Pump Manufacturer OEM



APPLICATION
CDL/CDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, While CDLF is suitable for slightly corrosive liquid.
Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system,cleaning system, high-pressure washing system, fire fighting system Industrial liquid conveying:Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

Operation conditions
Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature:
Normal temperature type:-15°C~+70°C,
Hot water type:+70°C~+120°C
Ambient temperature :up to +40°C
Altitude :up to 1000m

Pump

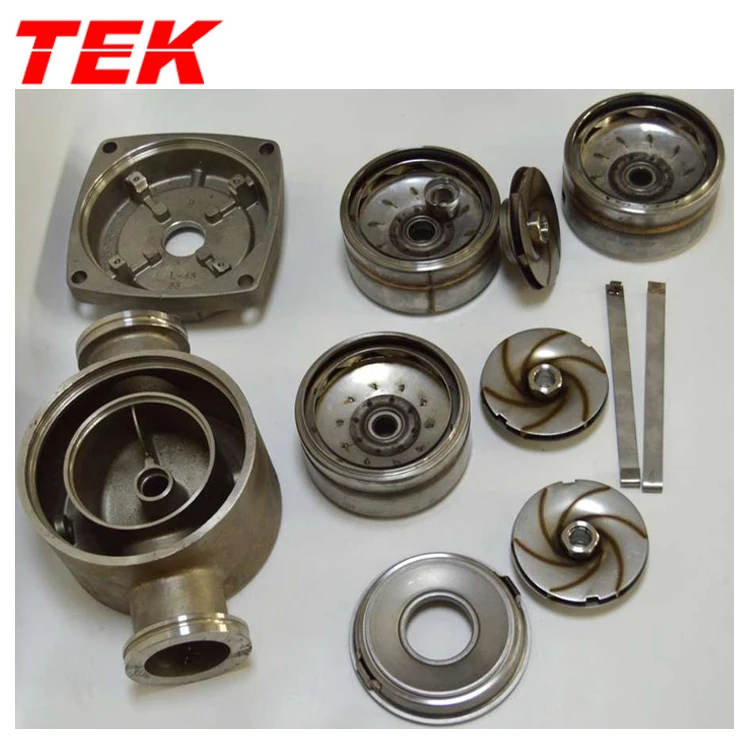

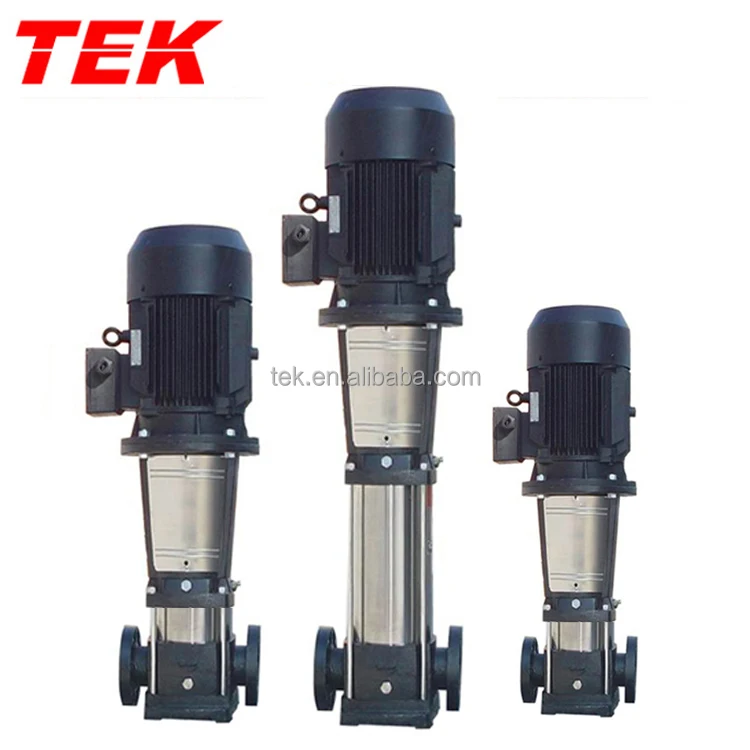

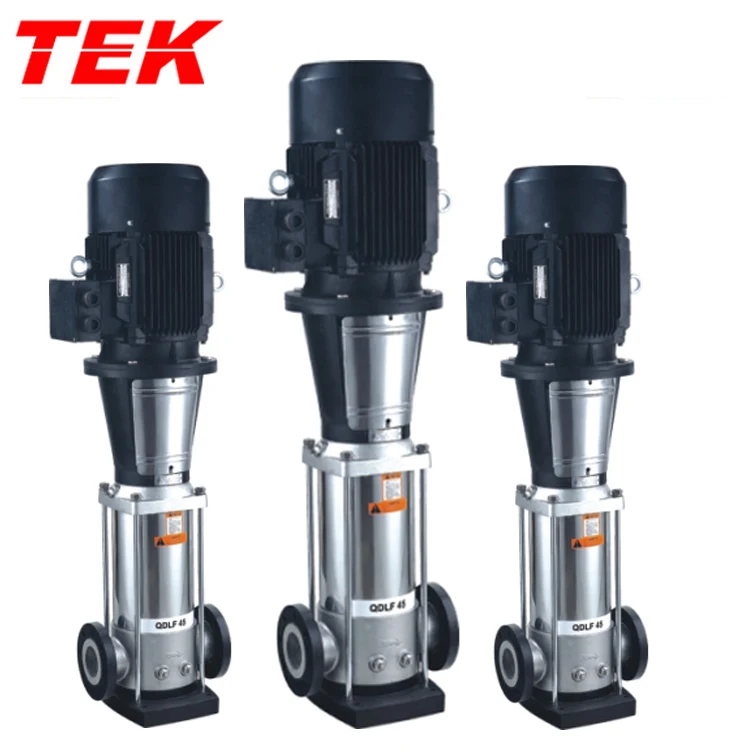

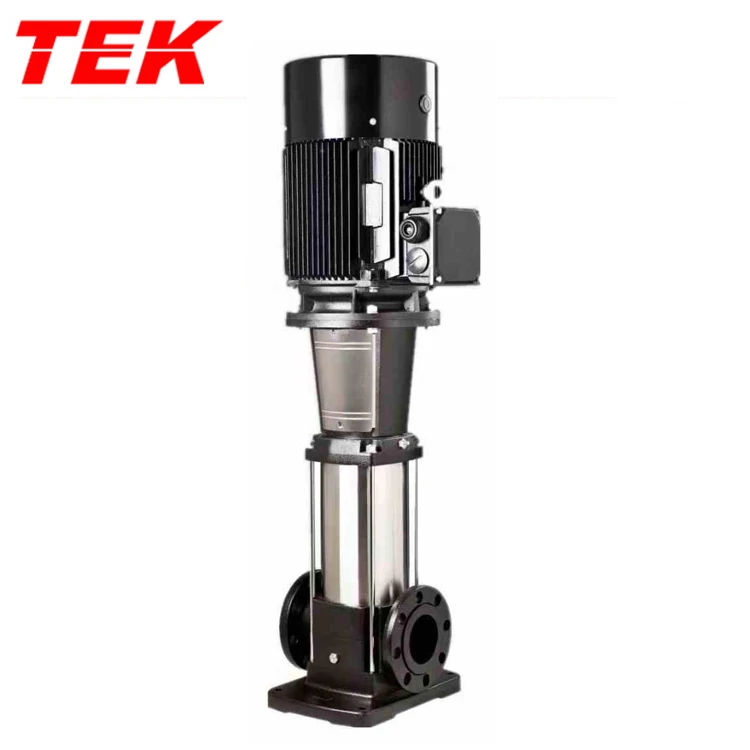

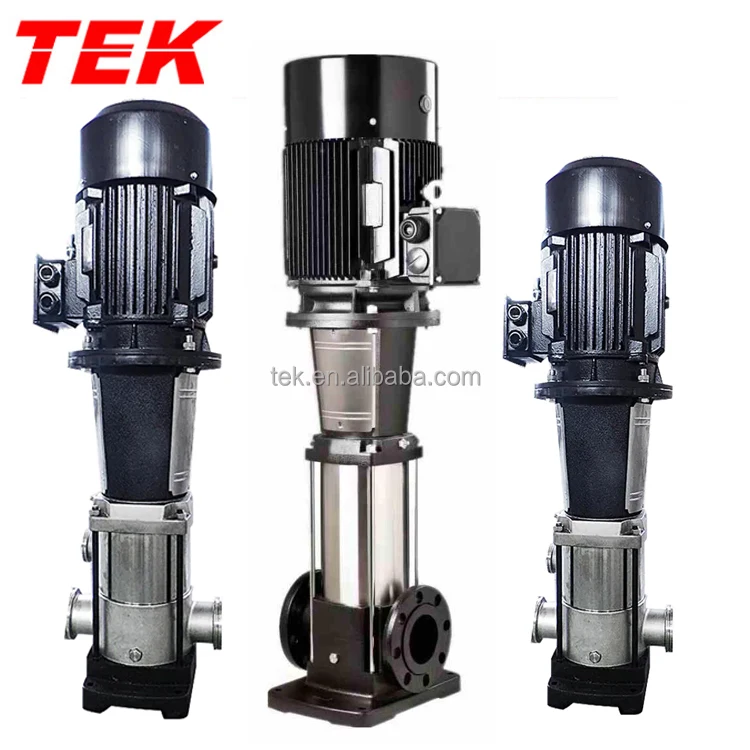

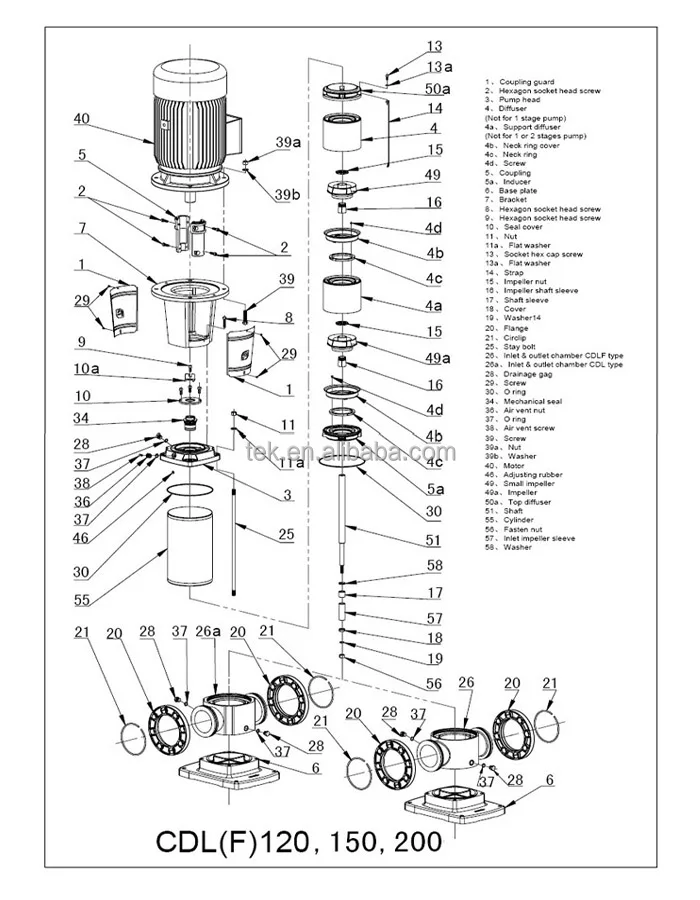

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump,which is driven by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling.The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane.This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Electric motor
Full-enclosed air-blast two-pole standed motor
Protection class:IP55
Insulation class:F
Standard voltage, 50HZ:1x220-230/240V
3x200-220/346-380V
3x220-240/380-415V
3x380-415V
60HZ:3×200-230/346-400V
3×220-255/380-440V
3×220-227/380-480



Main Markets

• Europe


• South  America


• Southeast  Asia


• Middle  East



Quality & Inspection

• Cooperated with good reputation suppliers.


• 100% check spare parts quality which produced from matching suppliers.


• QC checking each step from spare parts to production on the full of line.

Package

• Standard exported carton or color carton.


• Violin-style color carton or Blow molding package are available.


• We will use standard exported package if no special requirments,


•  but it is available to provide colour package according to your design


• or we make design for you using your brand basing on the quantity more than 300pcs.

Payments Term

• Irrevocable and Confirmed L/C at sight


• 30% of invoice by T/T in advance and pay balance 70% by TT before shipment
