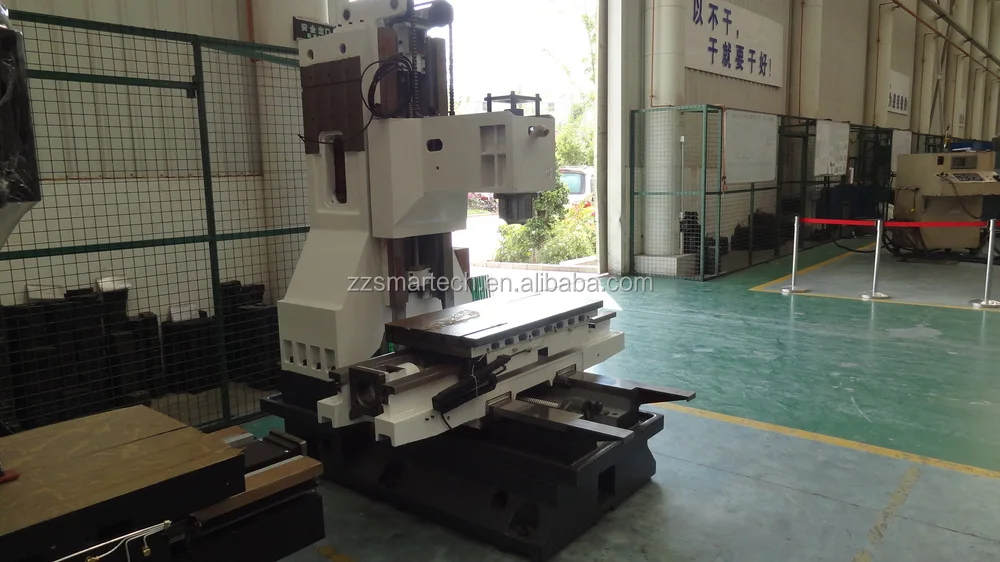

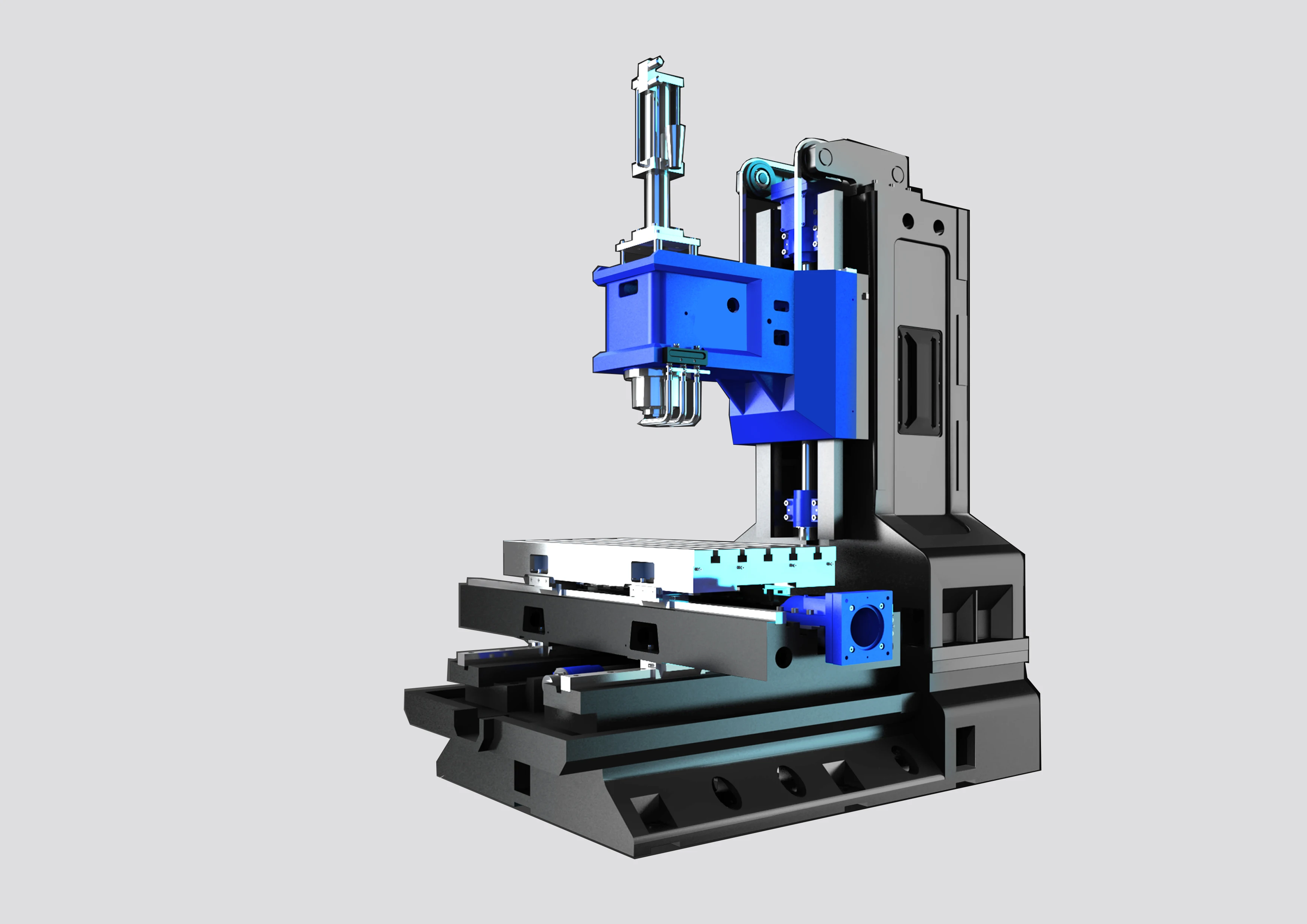

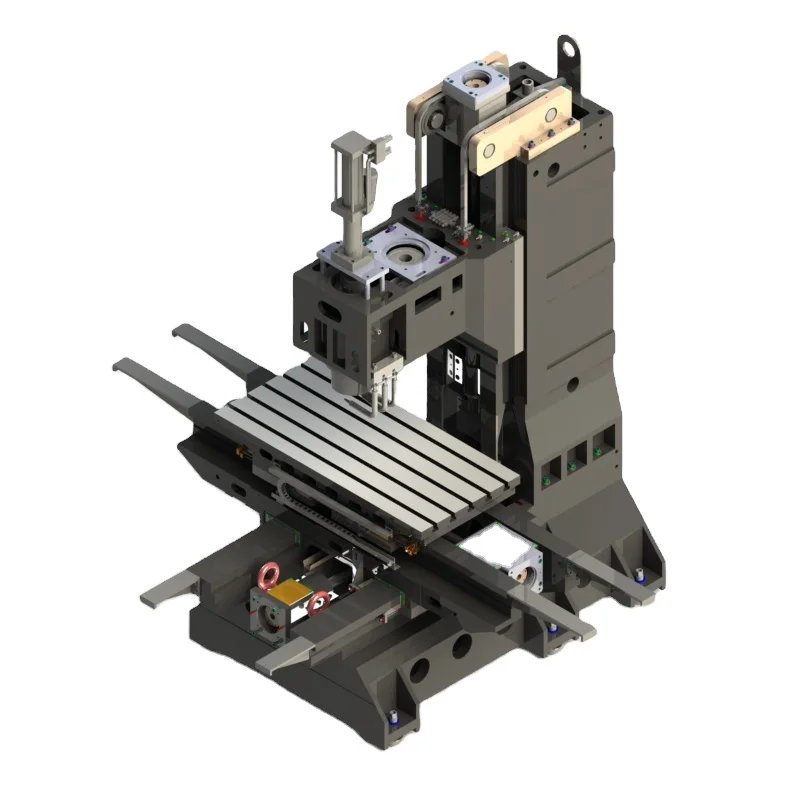

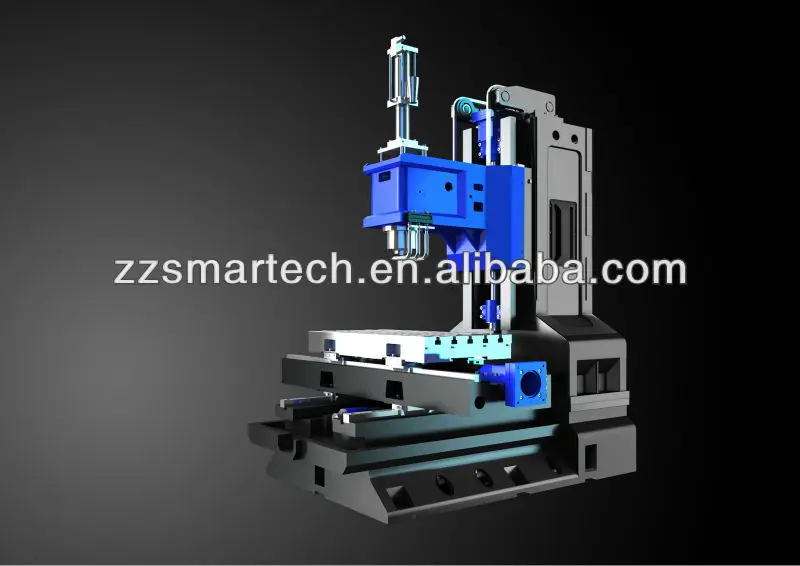

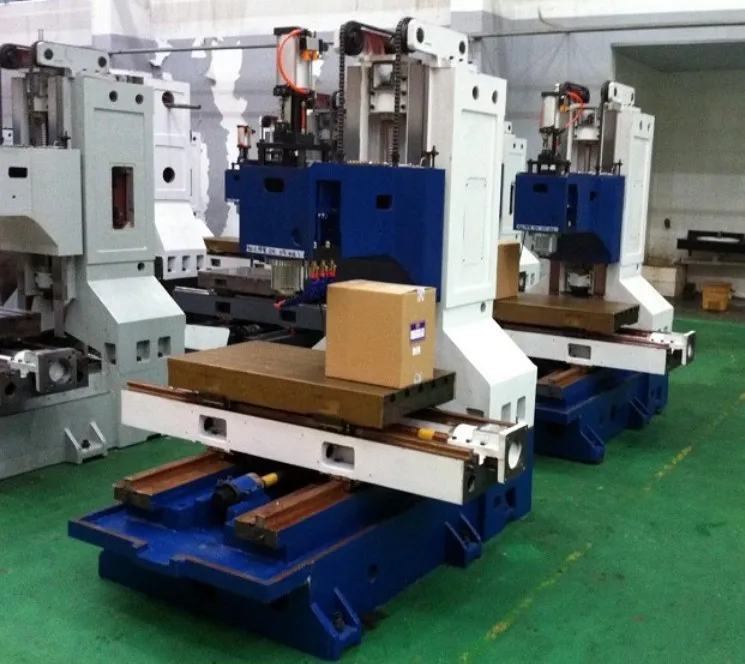

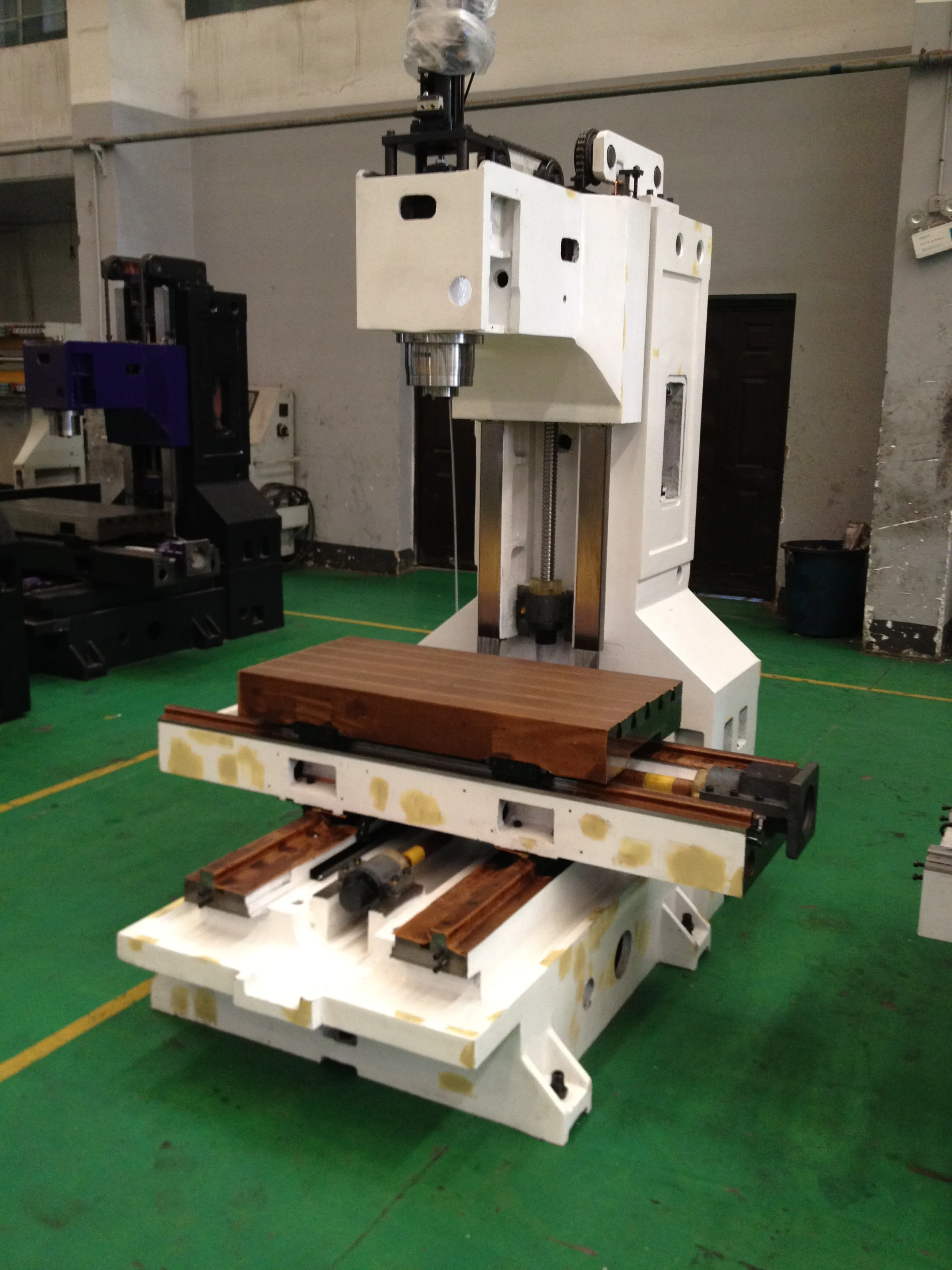

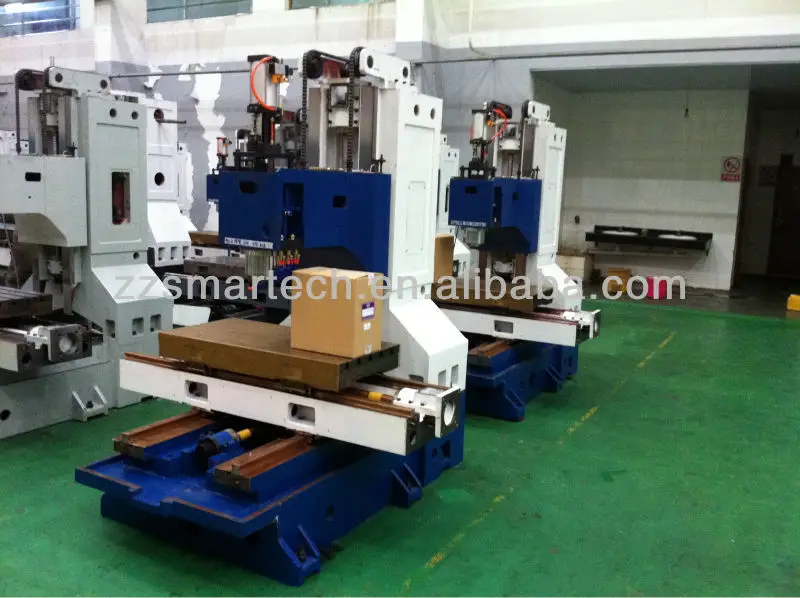

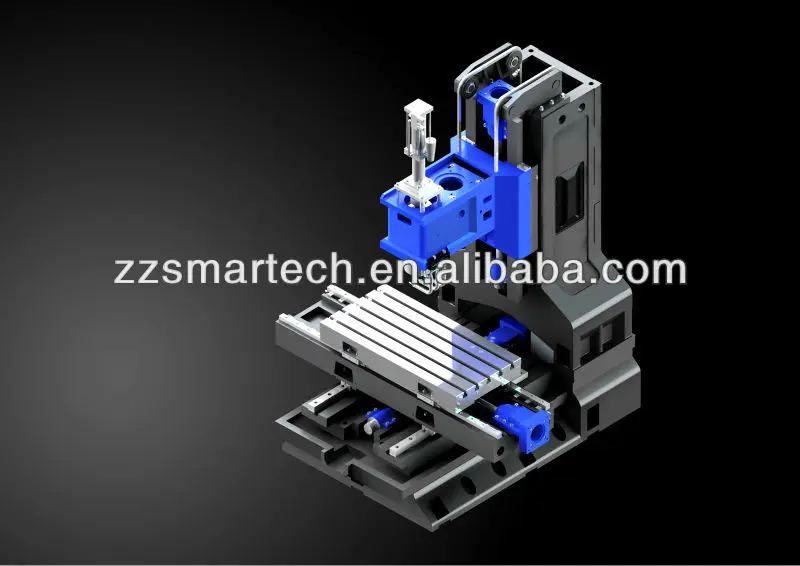

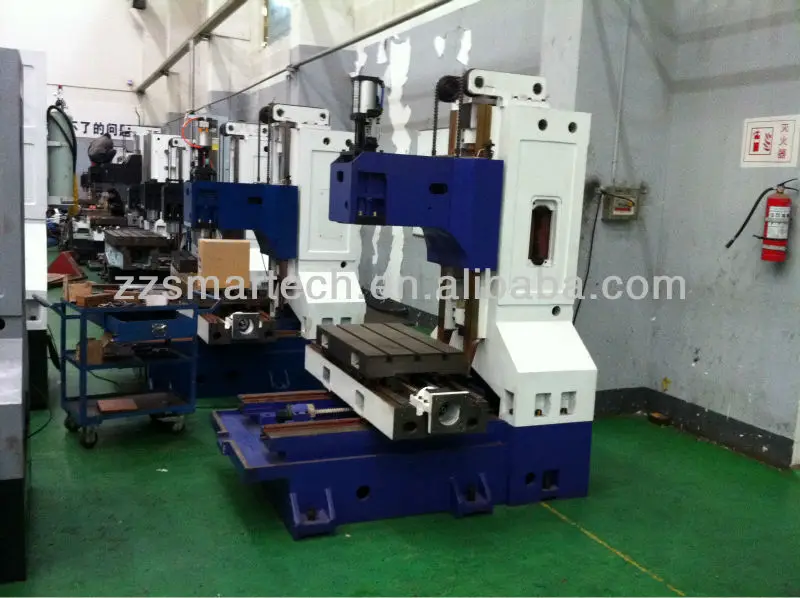

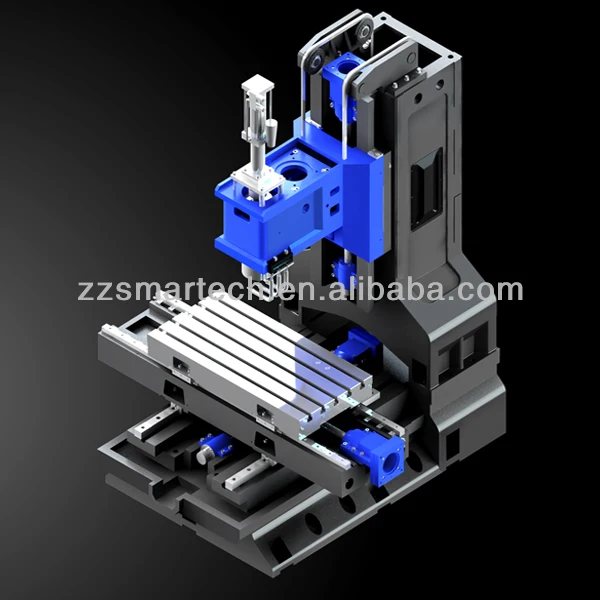

VMC 850L Vertical Machining Center VMC CNC Machine Frame

Product Overview

Description

For more CNC frames, please visit our website www.zzsmartech.com





SMARTECH CNC MACHINE FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X&Y axes Linear slideways and Z axis box way type;

• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design





X, Z axes are of linear guide rail, without chuck, tool post, motors, electrical cabinet, and enclosure.

Standard accessories:

1)       Resin sand casting

2)       Ball screw made in Taiwan

3)       Imported linear rail

4)       Continuously variable cartridge spindle made in Taiwan

5)       Belt and its pulley

6)       Couplings of X, Z axes

7)       Bearing of lead screw: NSK/NTN

8)       Lubrication system: HERG

9)       Painting: either standard or customized

10)   Packing: Wooden pallet + Antirust protection + Moisture-proof protection



Option list (not included in the price I gave to you):

1)       Hydraulic power chuck made in Taiwan (Strong or CH-H)

2)       Collect chuck and rotary cylinder

3)       Protection of guide rail

4)       Hydraulic tool turret

5)       Hydraulic station

6)       Machine guards

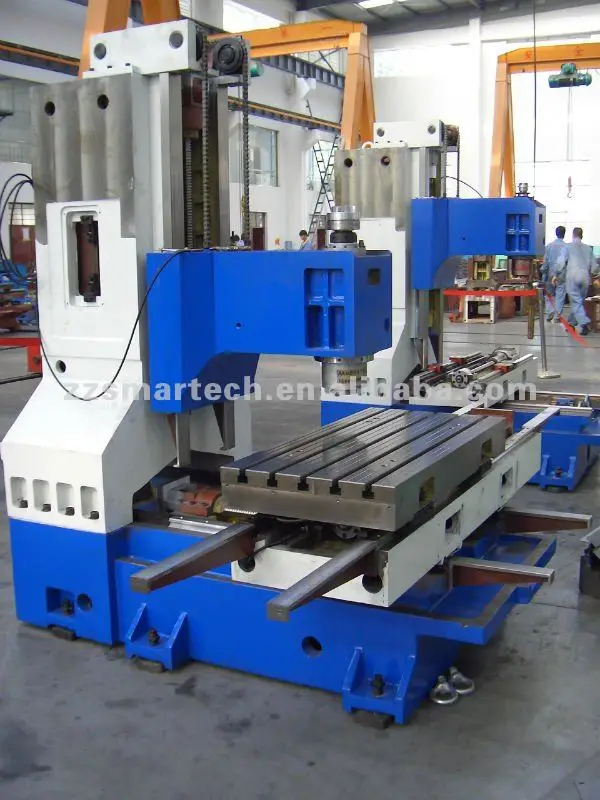

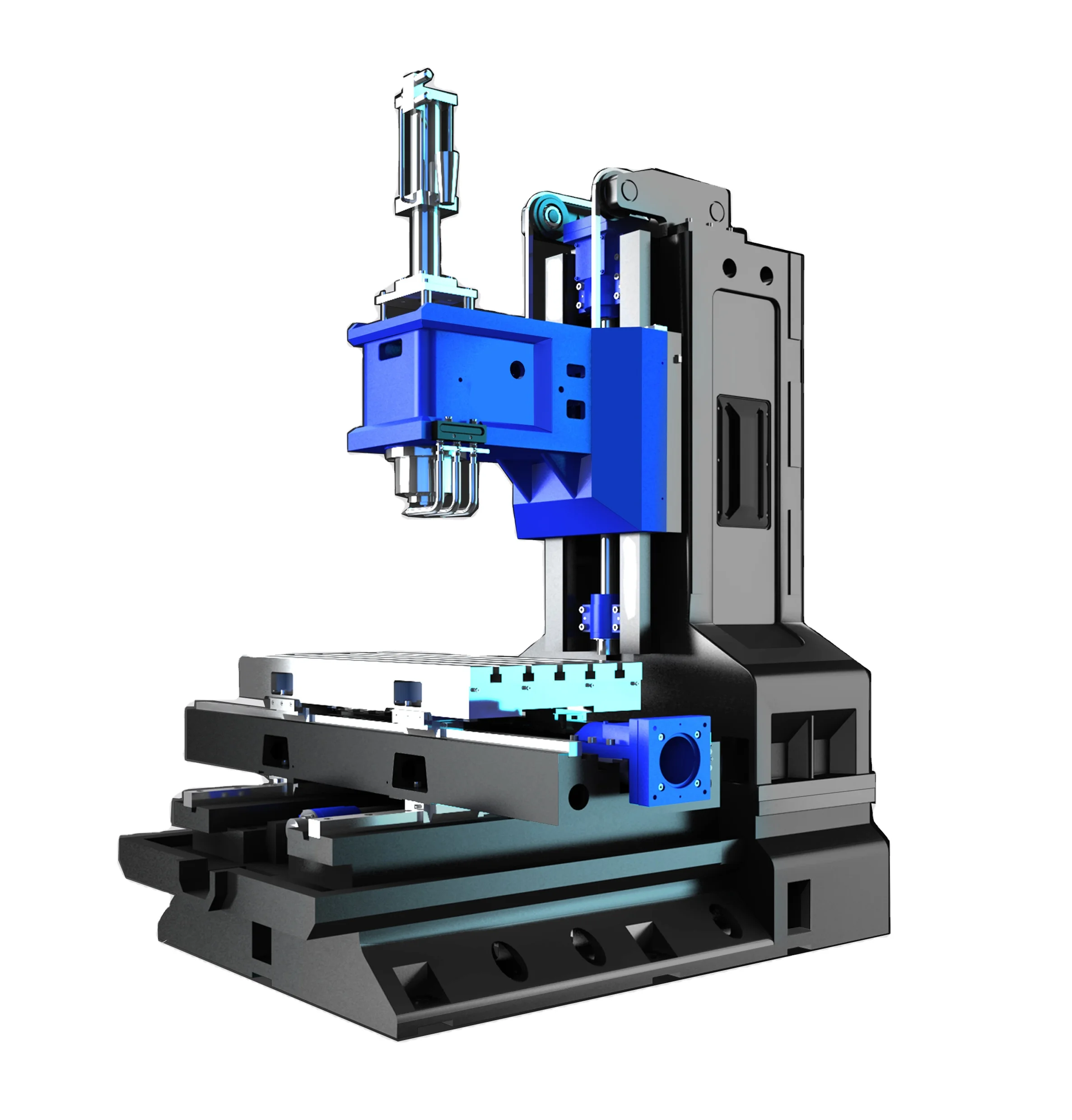

Optimized VMC-850L











Machining Equipments Imported from Nicolas Correa Spain

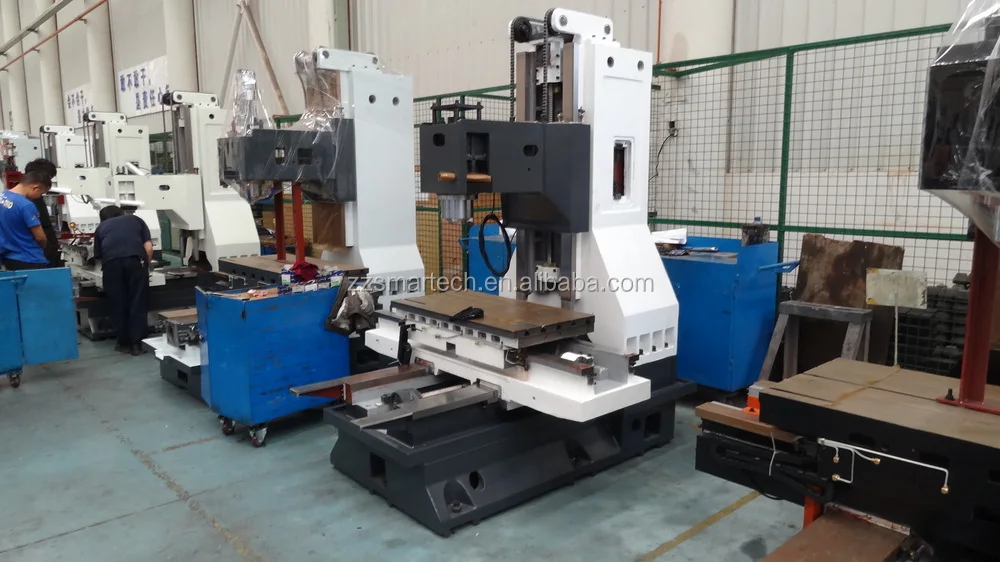

A Bird's Eye View of Plant VMC
