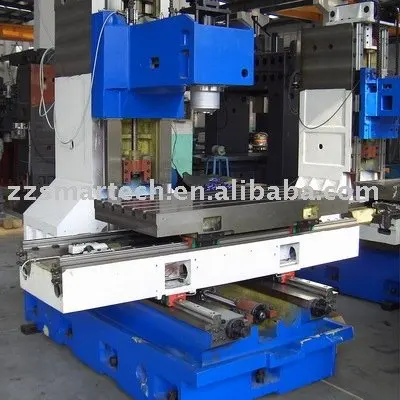

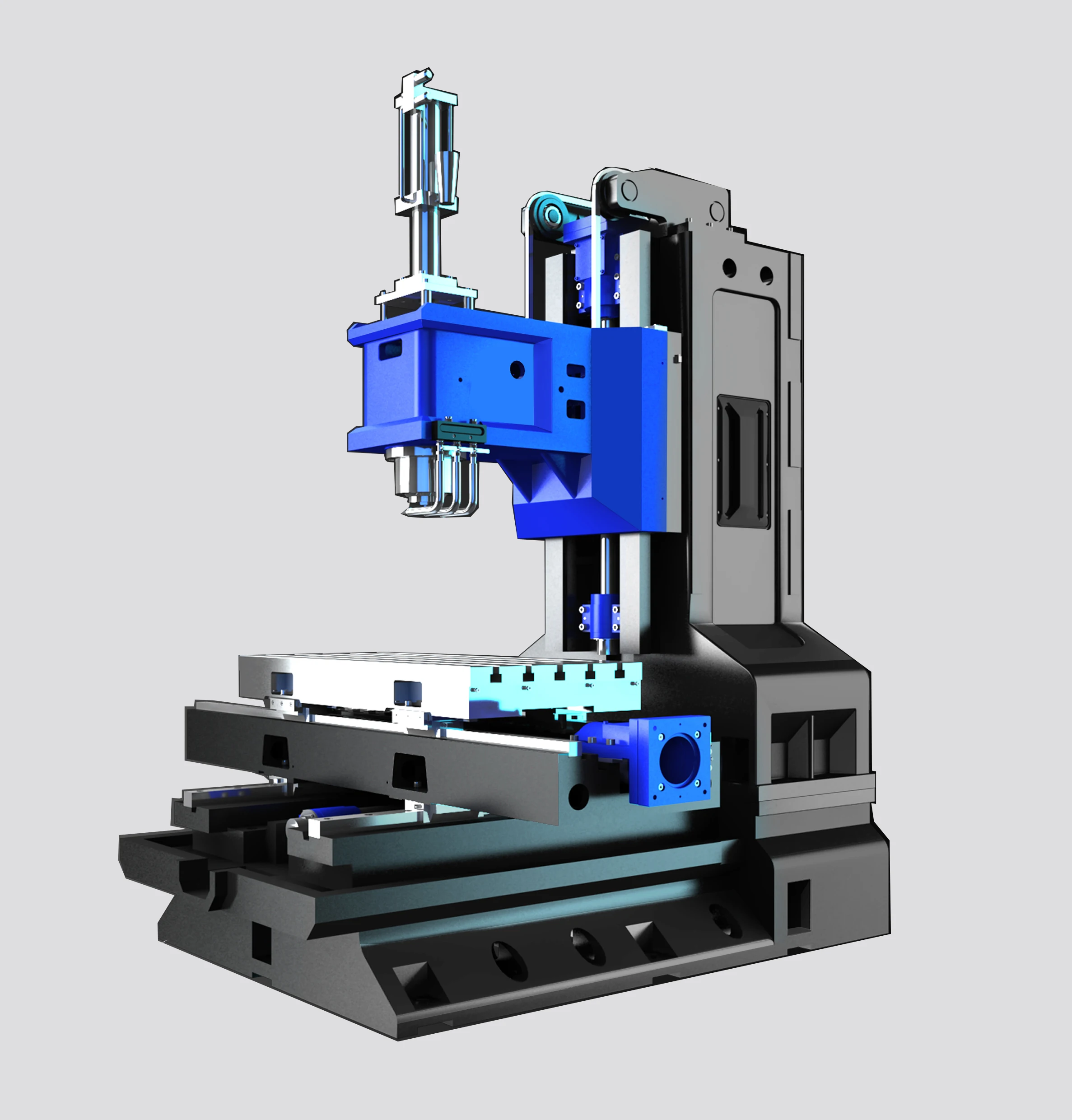

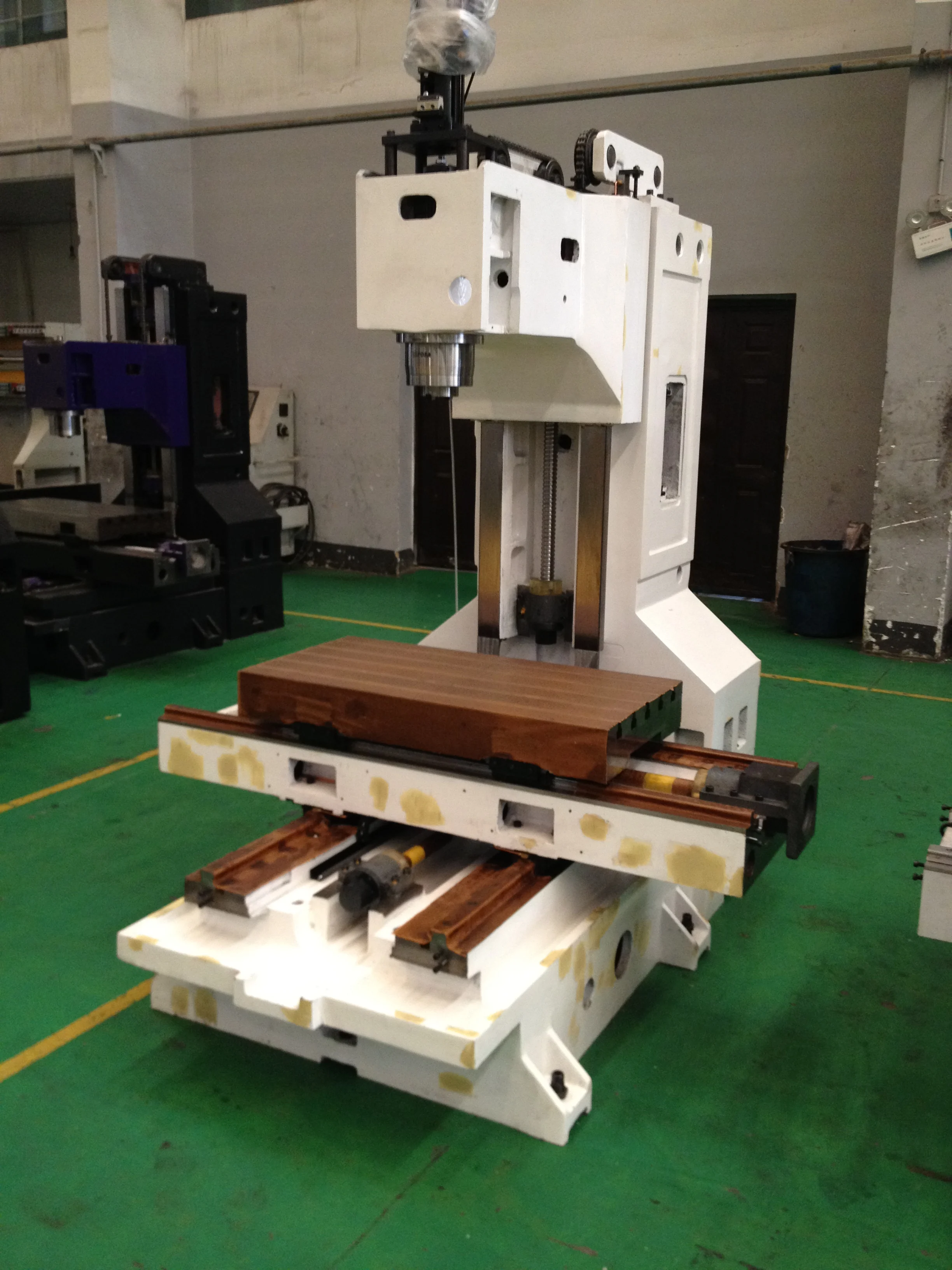

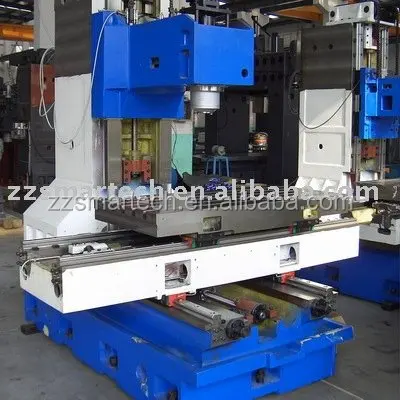

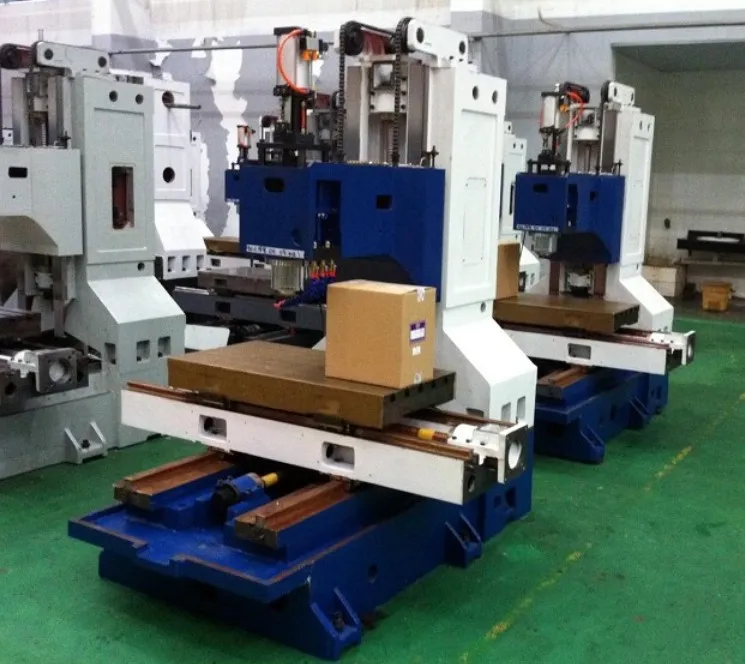

VMC 850L CNC Machine Vertical Milling Machine Frame Body

Product Overview

Description

For more information please visit www.zzsmartech.com





SMARTECH CNC VMC FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X&Y axes Linear slideways and Z axis box way type;

• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design









• SPECS:

MODEL	VMC-850L
Table Size	550 x 1000
Travel X	800
Y	500
Z	500
Spindle to Column Slideway	599
Spindle Nose to Table Surface	160-660
T-Slot(No-size/distance)	5-18/100
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	45/16
Z axis Ball Screw Spec.	45/12
X,Y & Z Motor Connection	Direct drive
Main motors recommended	7.5kw
Drive motors recommended X/Y/Z	16/16/16Nm
Table  Work Load	600 Kg
Net Weight	5000kg





 For more information please visit www.zzsmartech.com

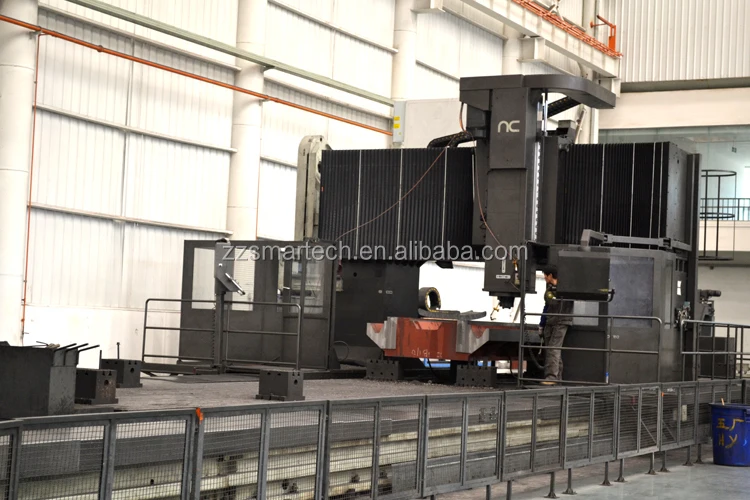

Machining Equipments Imported from Nicolas Correa Spain

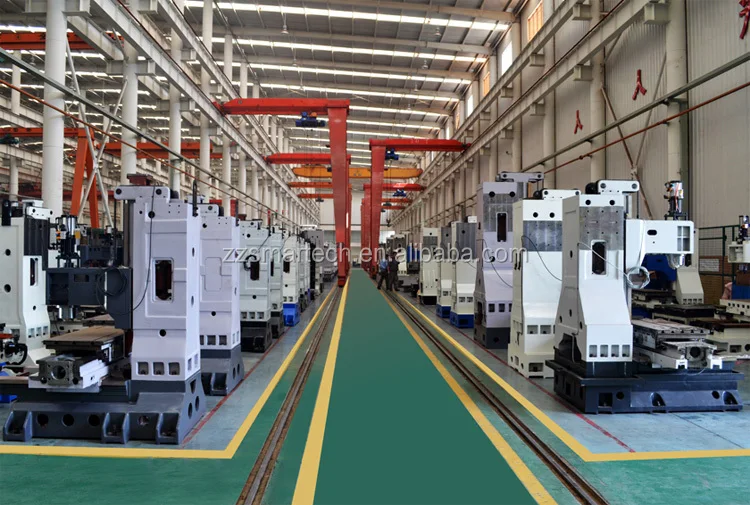

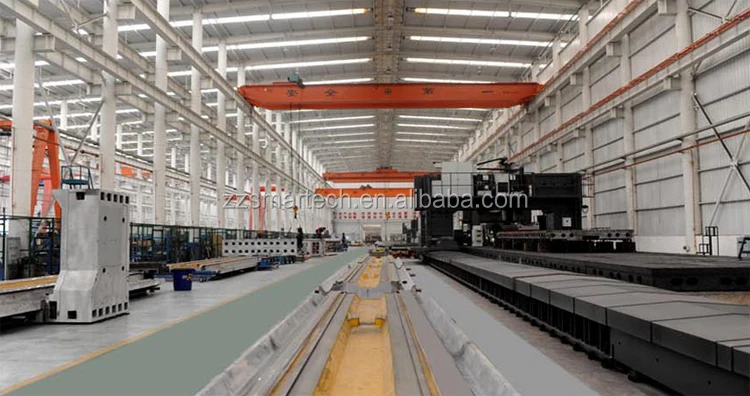

A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
