12kV/400A High Voltage Vacuum Contactor
- Category: >>>
- Supplier: Guoguang Electric Co. Ltd. Chengdu [Sichuan China]Guoguang
Share on (520951355):
Product Overview
Description
Products Description
Products Description
|
Its holding method can be divided into two types: |
J type (mechanical holding). D type (electrical holding). |
|
Rated Parameters: |

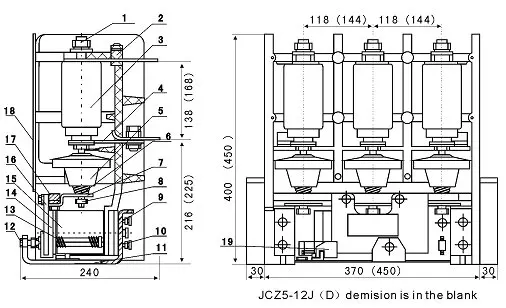

Main Technical Parameters: JCZ5-12J(D).
|
|
Size:
|
510mm*240mm*450mm
|
|
Electricity life:
|
AC-3: 25×104 times ; AC-4: 10×104 times
|
|
Mechanical life:
|
30×104 times (J type); 100×104 times (D type)
|
|
Trip current of switch-off coil:
|
DC2.5A/DC1.5A |
| Keeping current of holding coil: | DC0.8A/DC0.4A (800A, 630A); DC0.45A/DC0.22A (400A, 200A). |
| Pick-up voltage of switch-on coil : | ≤DC14A/DC7A (800A, 630A); ≤DC6A/DC3.5A (400A, 200A) |
| Rated operating frequency: | 300 times/h (J type, mechanical holding); 1800times/h (D type, electrical holding) |
| maximum: | 6400A, 5040A, 3200A, 1600A |
| Rated current: | 800A, 630A, 400A, 200A |
| Rated operating voltage: | 110/220V (AC, DC) |
| Rated Voltage: | 12kV. |
| Rated turn-on current: | 8000A, 6300A, 4000A, 2000A |

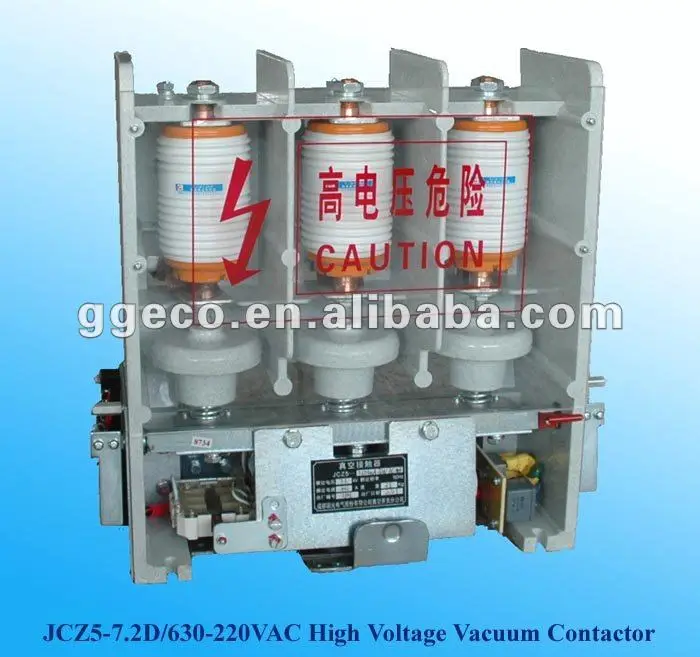

The series JCZ5-12kV/400A (vacuum switch)f high-voltage vacuum contactor are suitable for the distribution system of metallurgy, mine, petro-chemistry and building, to control the equipments used eletricity such as high-voltage motor of 12kV or under 12kV, transformer and capacitive loading etc. Especially suitable for frequent operation domain. Because of its small volume, light weight and packaged design of upper and lower arrangement, prevalented in the world. It is convenient to use and maintain, and is easy to form the complete equipment of F-C loop.
Our Advantages
Our Advantages
Product packaging
Product packaging
Certifications
Certifications
Company Profile
Company Profile
FAQ
FAQ
Q: How could I get price from you? A: Send us the detail like size, weight, the design, etc. Our sales team shall forward you the prices with 12 hours. Q: Does the OEM available? A: We can produce the products as your design. Q: How long it will take to open a new mould? A: 30~35 days. Q: What kind of artwork are available for open a mould? A: AI design or CDR design Q: Do you inspect the finished goods? A: Yes, our QC will inspect products in every step of production. Q: What would be the payment terms? A: 30% T/T in advance as a bond, the balance 70% against documents.
