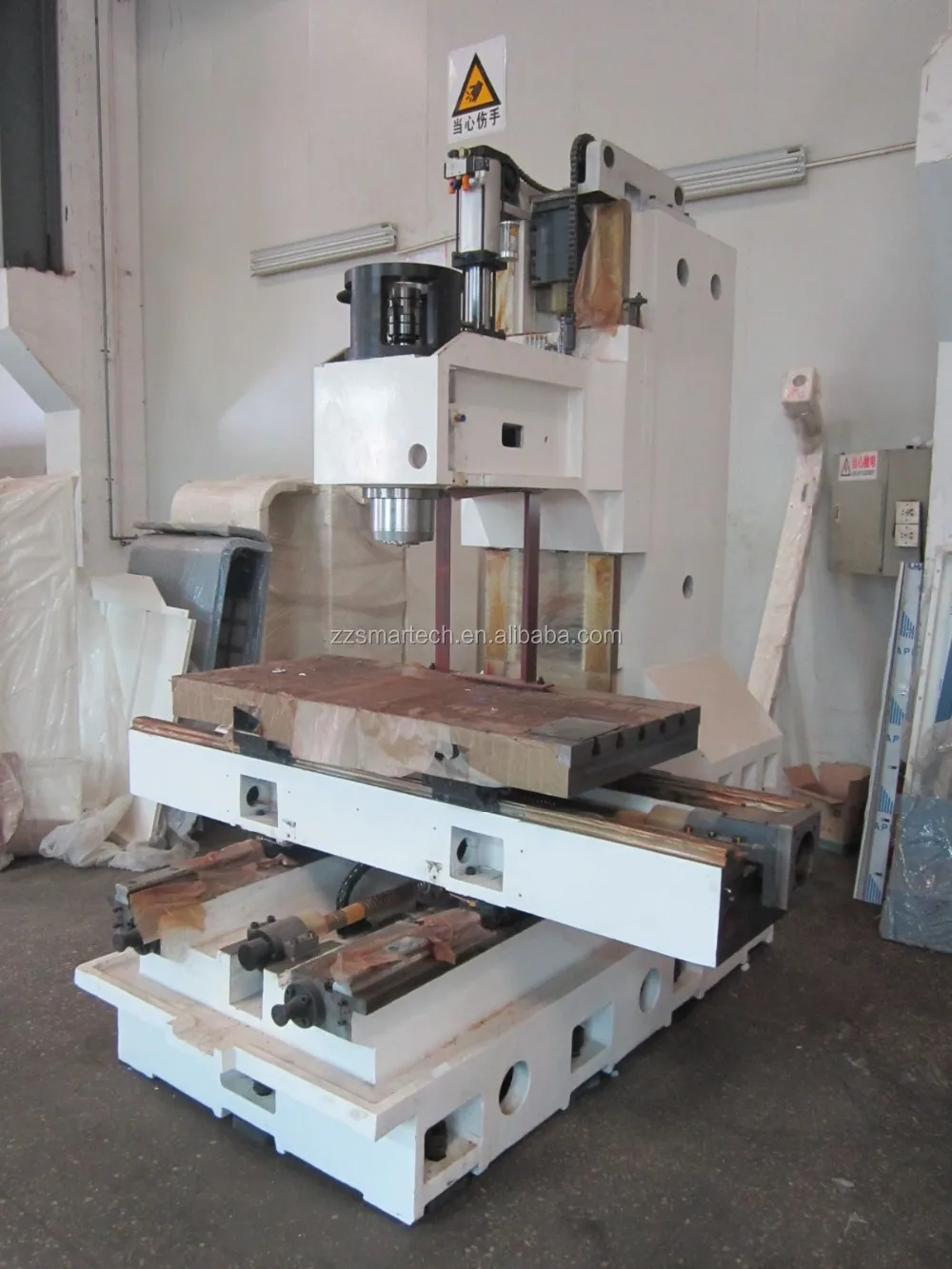

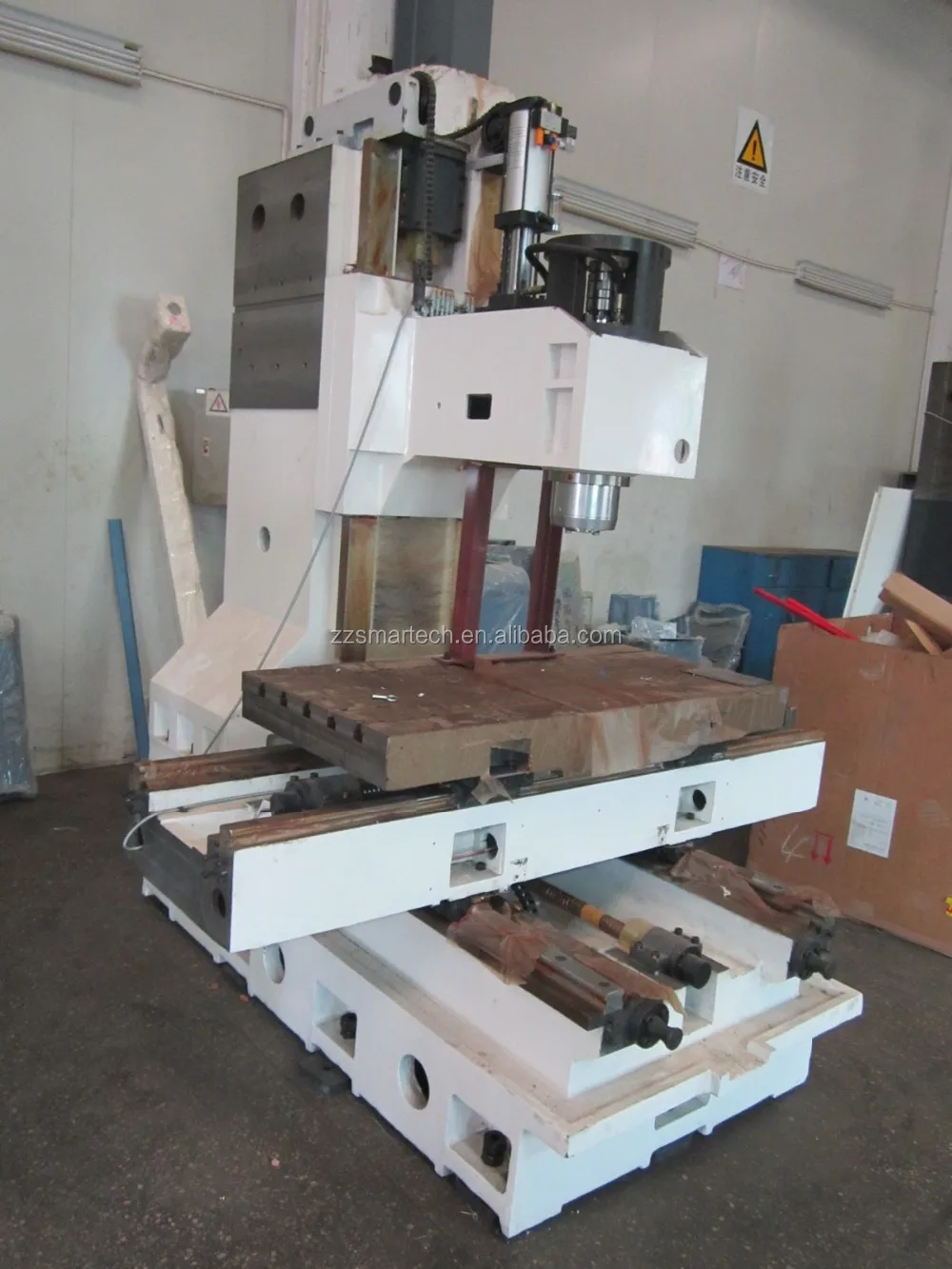

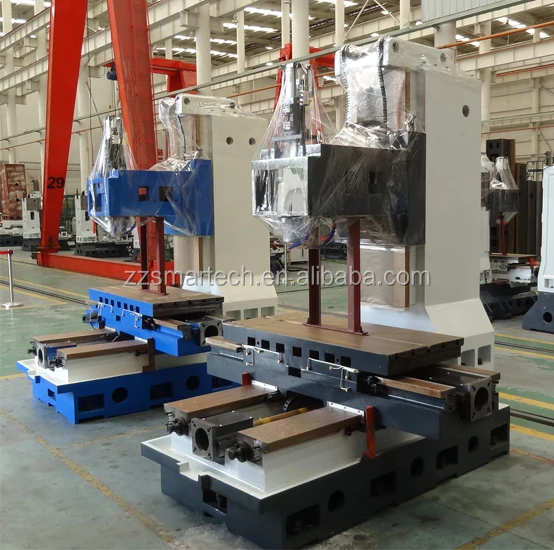

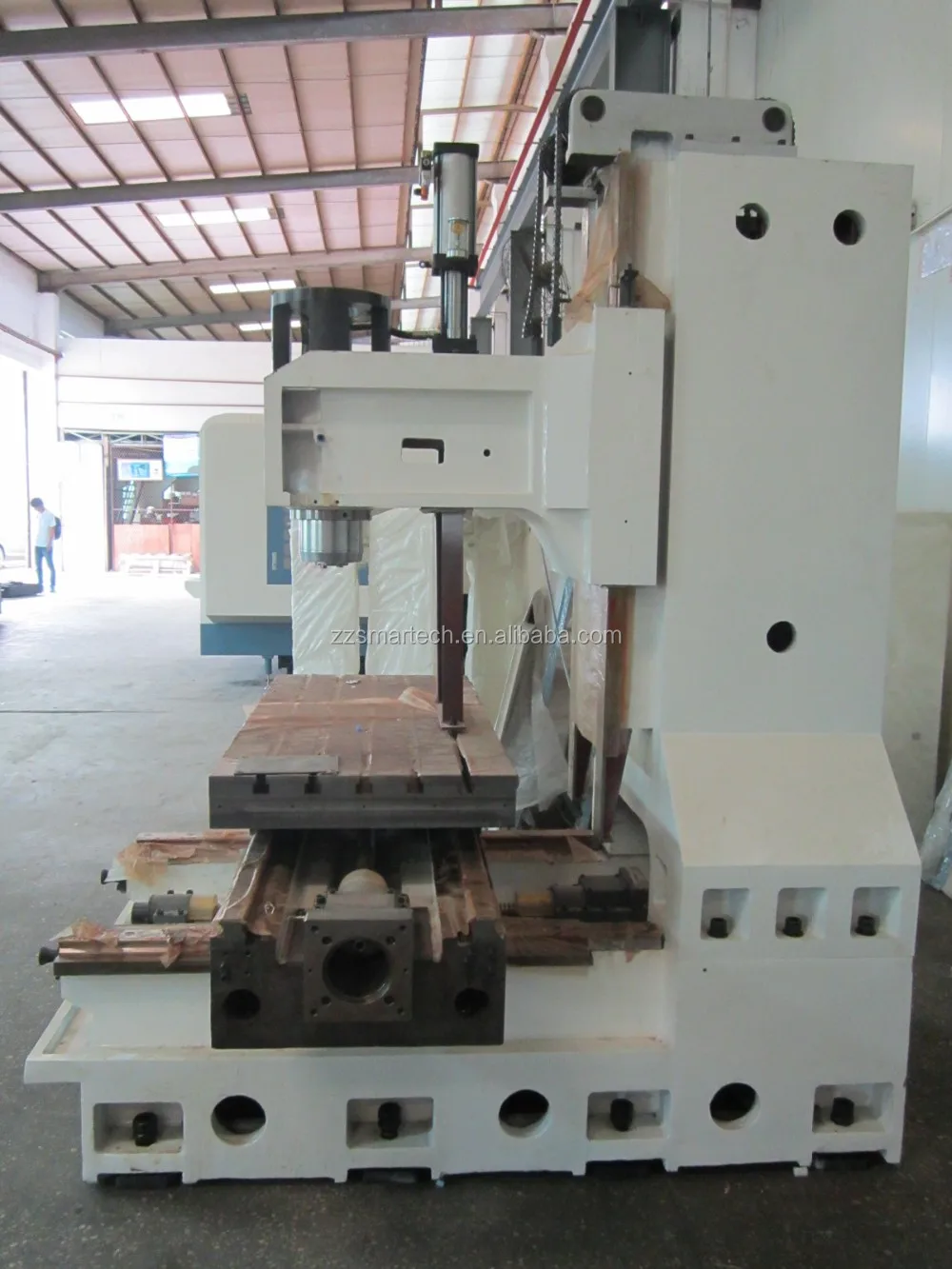

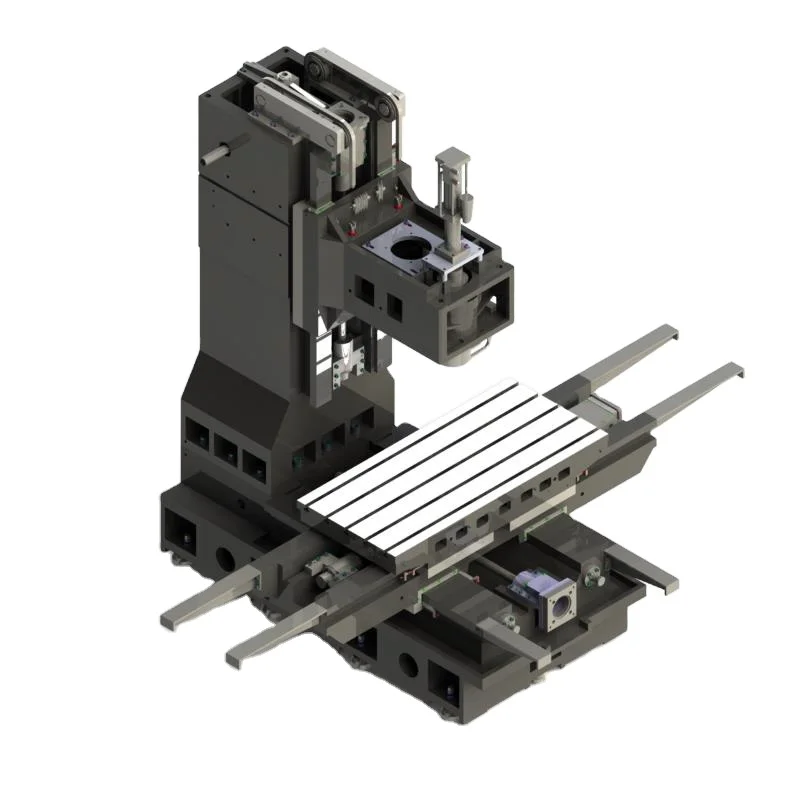

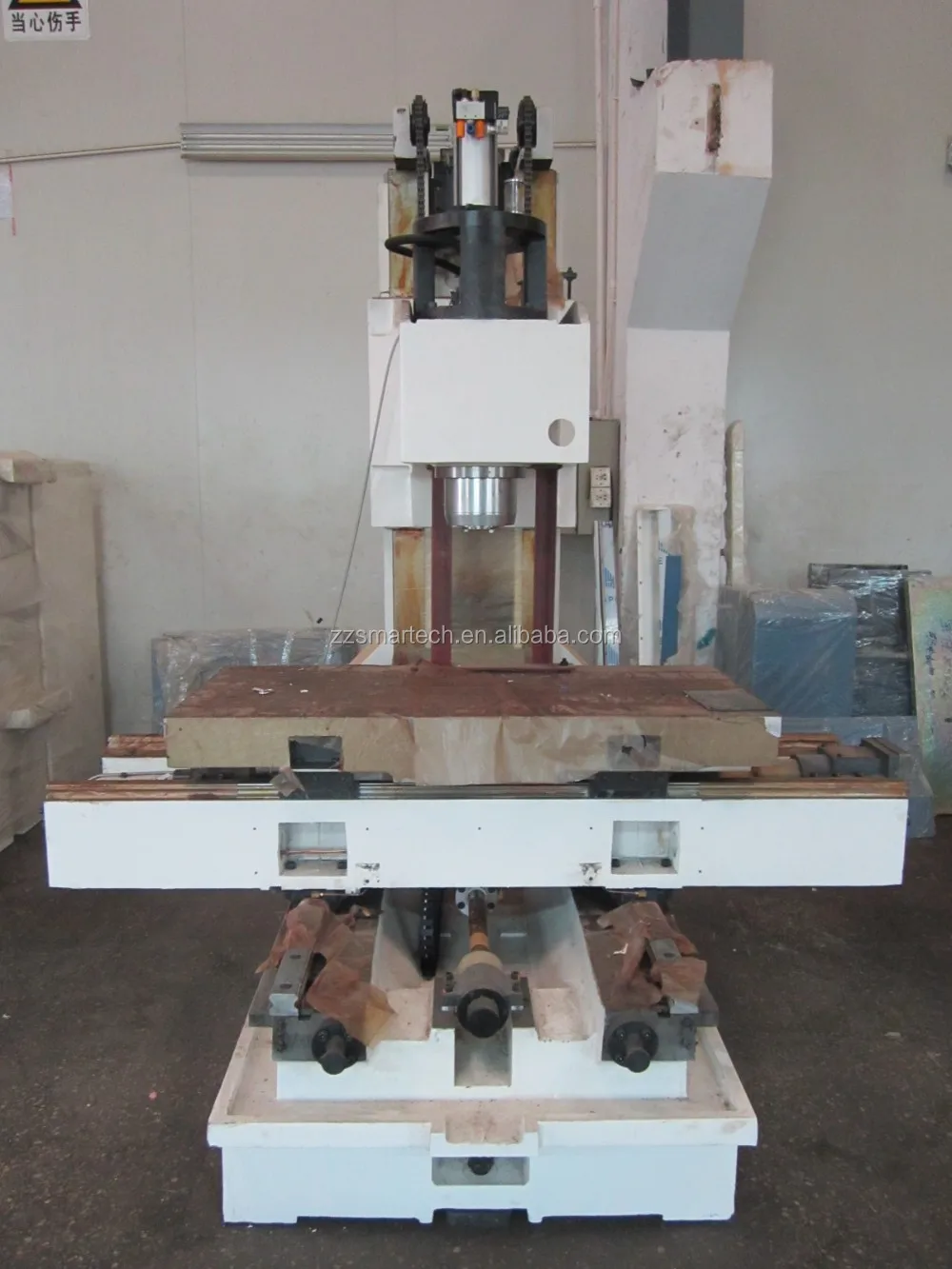

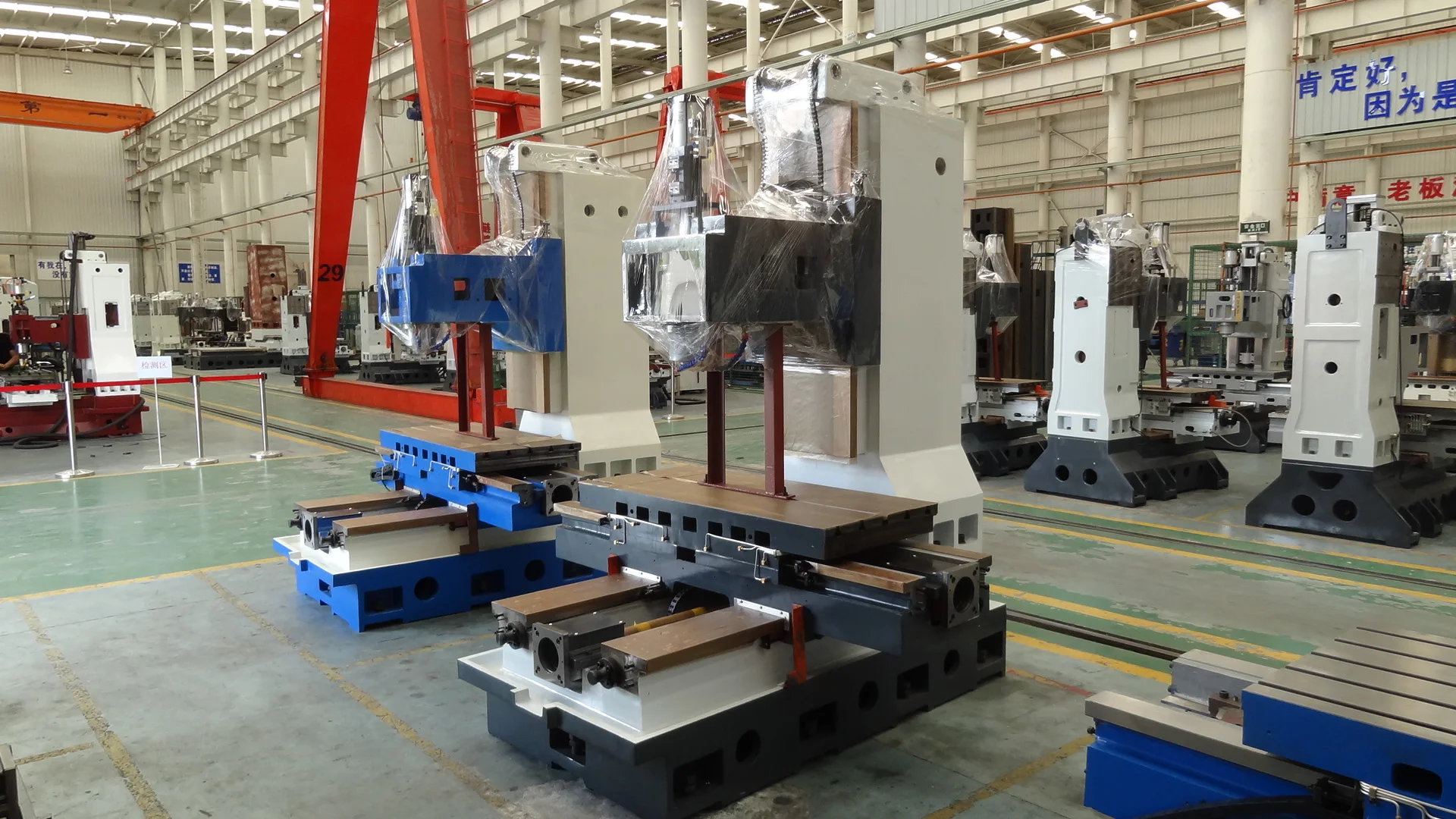

Vertical Machining Center VMC 1060 CNC Machine Base

Product Overview

Description

SMARTECH CNC MACHINE BASE

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Hiwin or PMI precision ball screwss and bearing ;

3     Royal or POSA 8000 rpm spindle ;

4     R&W couplings ;

5     Stainless steel telescopic protection on X/Y/Z axis, Taiwan brand Keyarrow ;

6     Central lubrication system ;

7     Haocheng tool clamping system ;
8    X, Y, z axes box-type guideway.

• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design





• SPECS:

MODEL	VMC-1060
Table Size	600 x 1300
Travel X	1000
Y	600
Z	600
Spindle to Column Slideway	600
Spindle Nose to Table Surface	180-780
T-Slot(No-size/distance)	5-18/120
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	40/10
Z axis Ball Screw Spec.	40/10
X,Y & Z Motor Connection	Direct drive
Main motors recommended	7.5-11kw
Drive motors recommended X/Y/Z	14/16/16Nm
Table  Work Load	800 Kg
Net Weight	5500kg
