Vertical Machining Center HVM1060

Product Overview

Description

SMARTECH CNC VMC FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      X&Y axes Linear slideways and Z axis box way type;

• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



• SPECS:

MODEL	HVM106
Table Size	1120 x 600
Travel X	1050
Y	600
Z	550
Spindle to Column Slideway
Spindle Nose to Table Surface	125-675
T-Slot(No-size/distance)	5-18/100
Spindle Taper/outside dia	BBT40
Spindle Speed	15000rpm
X,Y axis Ball Screw Spec.	50/20
Z axis Ball Screw Spec.	40/12
X,Y & Z Motor Connection	Direct /Direct/Bell
Main motors recommended	12kw
Drive motors recommended X/Y/Z	27/27/16Nm
Table  Work Load	660 Kg
Net Weight	7600kg

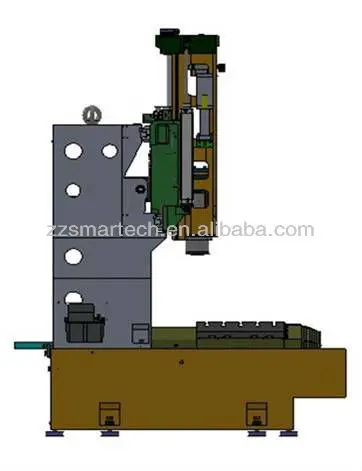

1.  C-sharp structure with column and beam molded together provides high rigidity and high stability.

     With X axis in the beam, the worktable can move faster as the load in Y axis was lightened

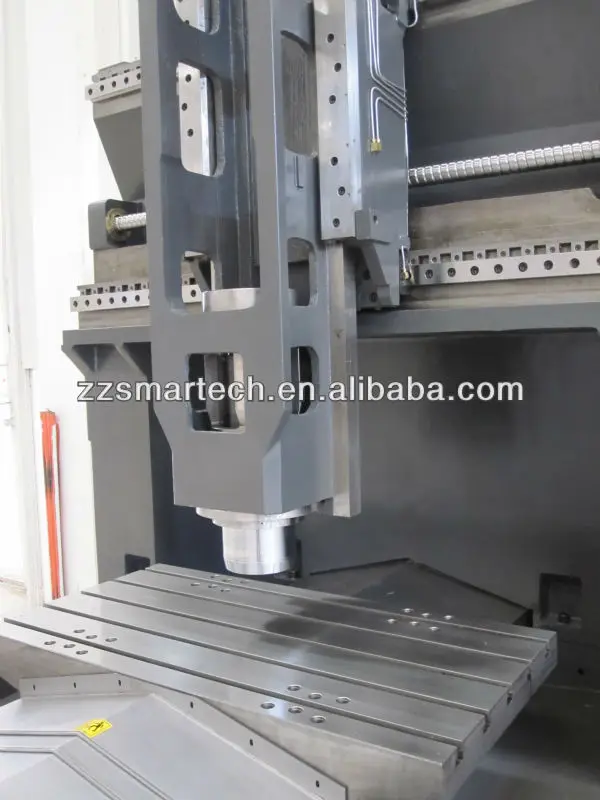

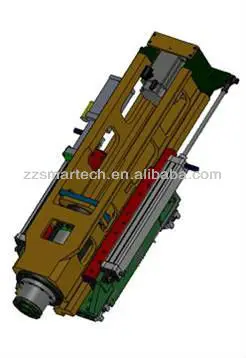

     The overhang of spindle  house is of proper length so that the guide and spindle  don’t have to bear unnecessary torque





2. Linearroller way in X, Y axes and box way in Z axis.

    Given the length of X, Y axes and the loads on them, linear roller way is applied there for its load-carrying capacity and rapid response to CNC commands.

    As Z axis travel is relatively shorter, box way with adequate lubrication is used here for its higher stiffness, good damping characteristics, and resistance to high cutting load.





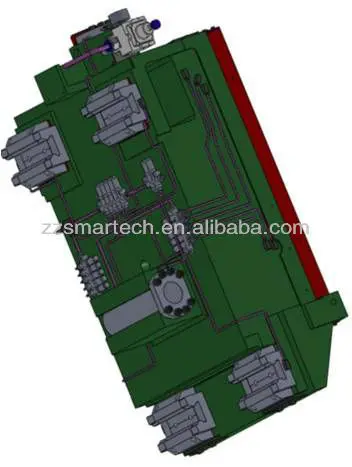

3. Pneumatic counter balance system

    The application of pneumatic system not just decreases wear on ball screws, but also ensure smooth, responsive and precise movement of cutter

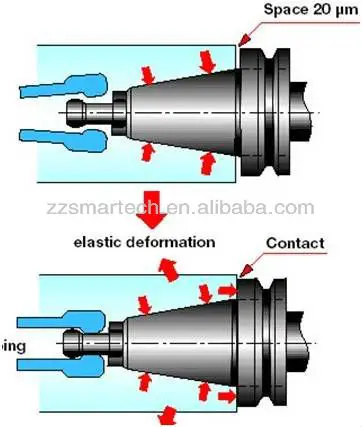

4. The spindle can work at a speed of 15000 rpm. The BBT40 spindle taper can cooperate perfectly with both BT40 and BBT40 taper shanks to perform not just general processing but high-speed processing.

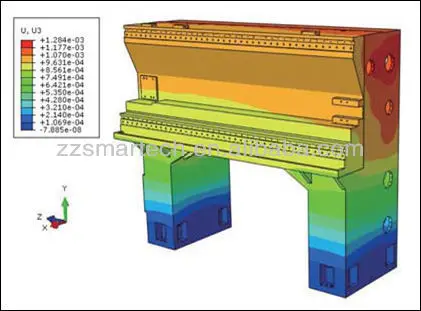

5. To attain optimum performance, every chief component has been analyzed with FEM







Application:



1. Machining  1). molds of Middle and small size

                          2). parts of cars, aircrafts

                          3). Parts of other precision-sensitive machines



2.  In case that you might need a rotary table we have  reserved room for 4th and 5th axes



3.  Parts of 3C products(3C refers to Computer, Communication & Consumter-Electronics)

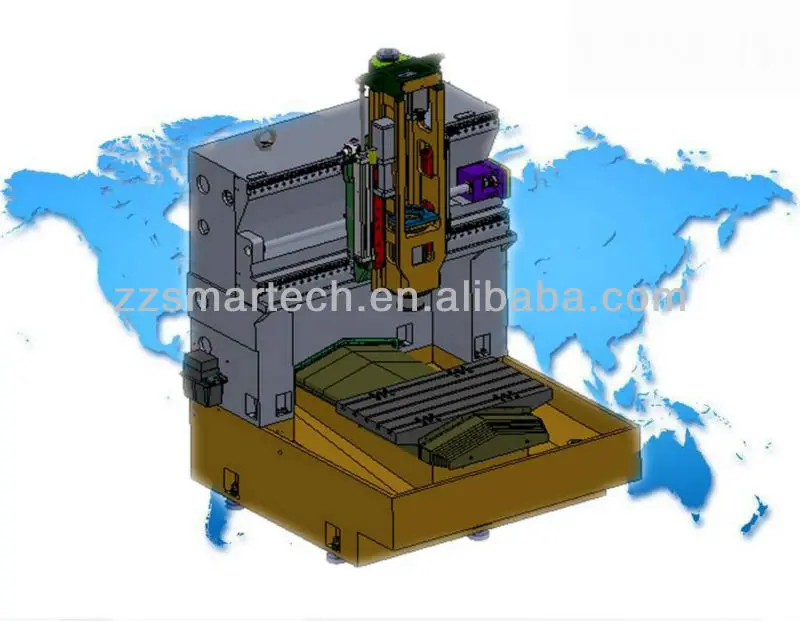

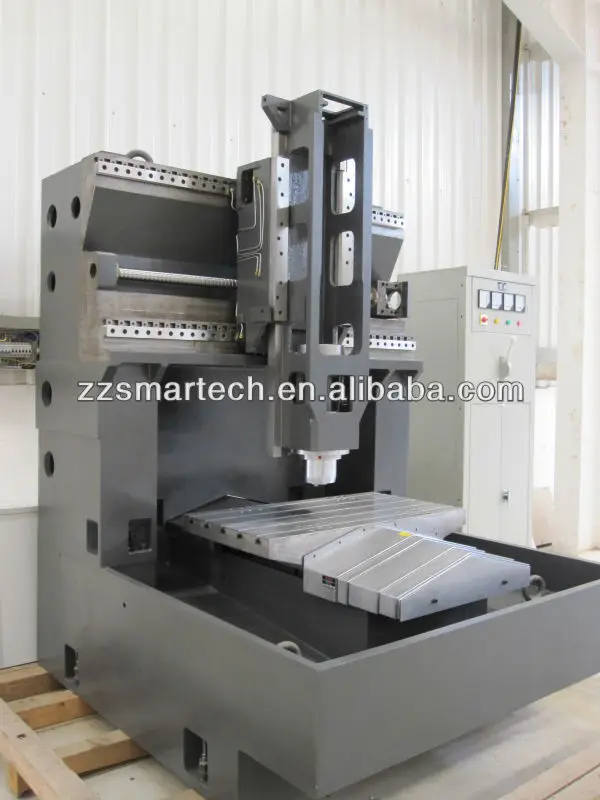

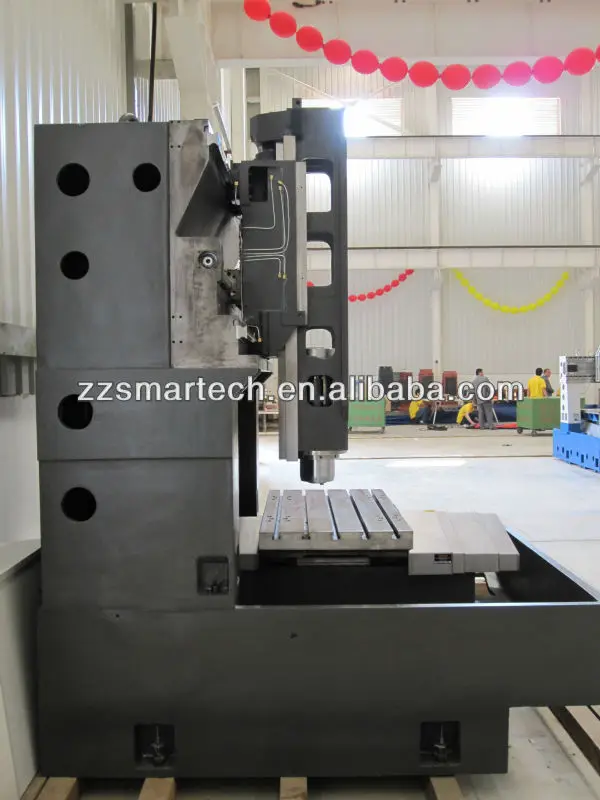

 HVM1060 Frame (Casting) :

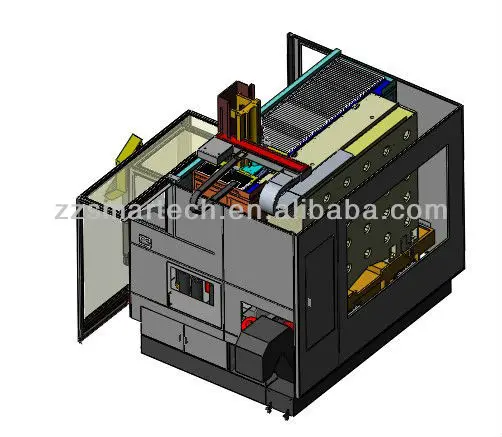

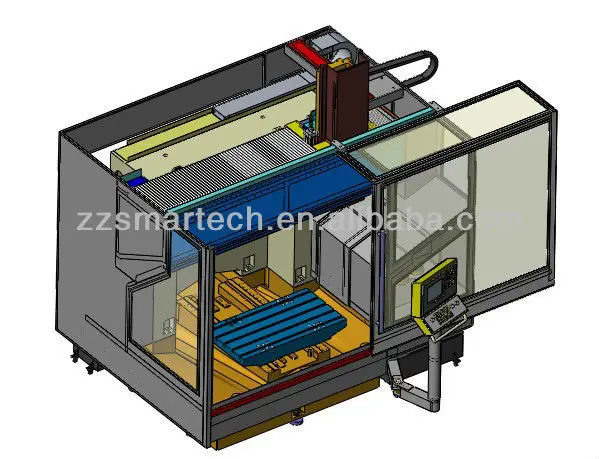

Guarding Option:
