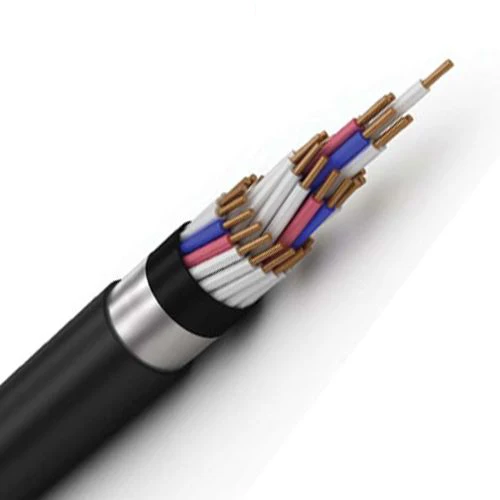

Shielded twisted pair 26 awg control Cable

Shielded twisted pair 26 awg control Cable

Category: Control Cables >>>
Supplier: Zhengzhou,Aobest,Electronic,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Specifications:

Control Cable:Cu/PVC/PVC
-standard:GB,IEC,AS ,DIN
-Approval:CQC,ABS,GL ,QMS
-10ys experience

Application:

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC.

Character and Relevant Parameters:

1. Long-term service temperature of the cable conductor: 70°C

2. Rated voltage: 300/500V,450/750V ,600/1000V.

3. Cable lying temperature ≥ 0°C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

PVC Insulated Control Cable Parameter:

Type	Name	Section Area(mm2)	No. of Core
KVV	Copper Conductor, PVC Insulated and Sheathed control cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVP	Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVP2	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVP2-22	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVV22	Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14

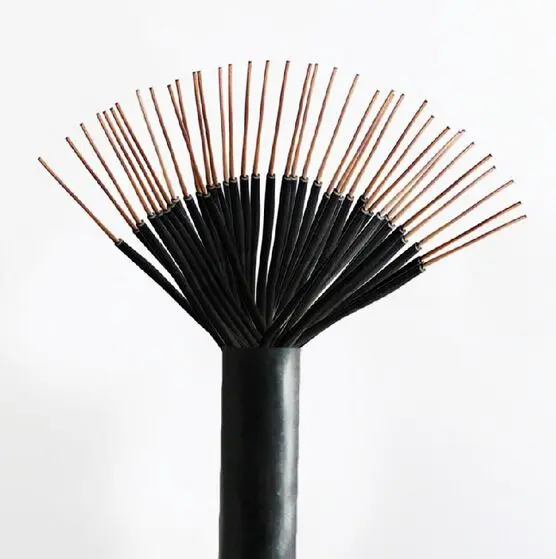

KVVR	Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVRP	Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
