AT24U12 02 24W external led driver with 12V CV output for led strips
- Category: >>>
- Supplier: Shenzhen Starwell Technology Co. Ltd.
Share on (521353172):
Product Overview
Description

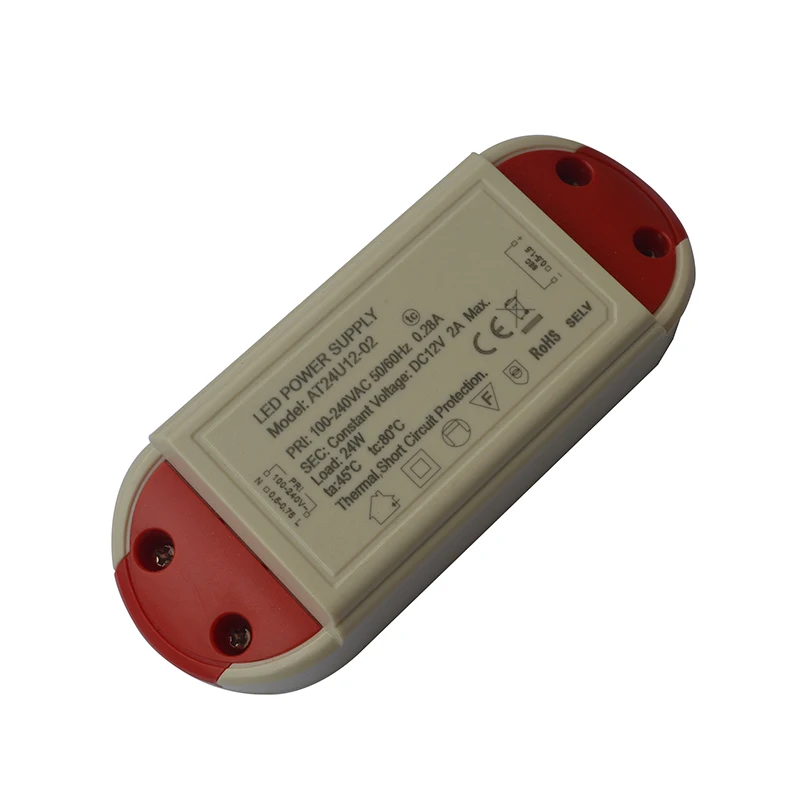

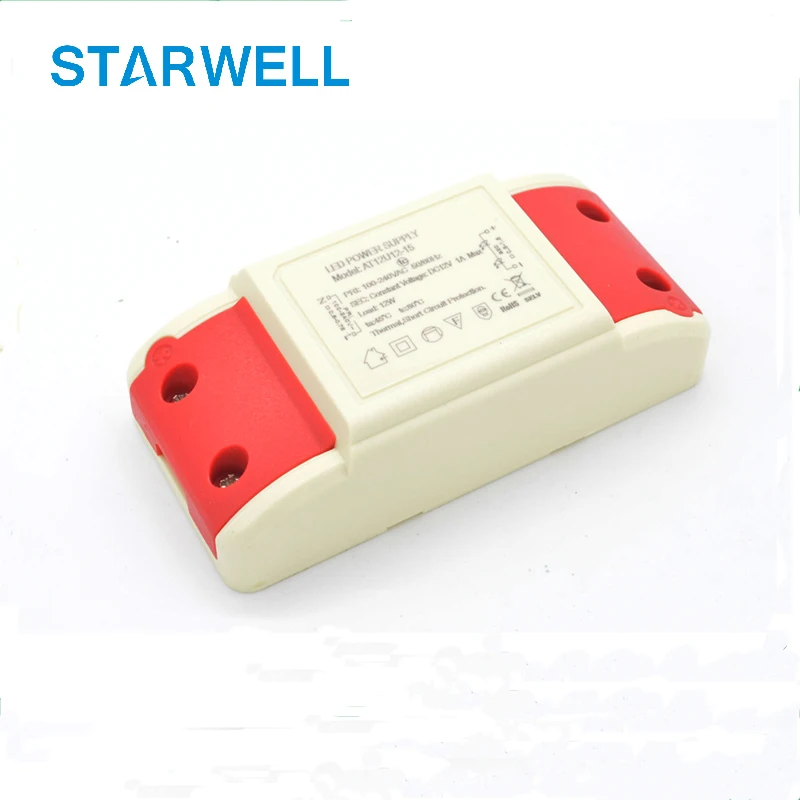

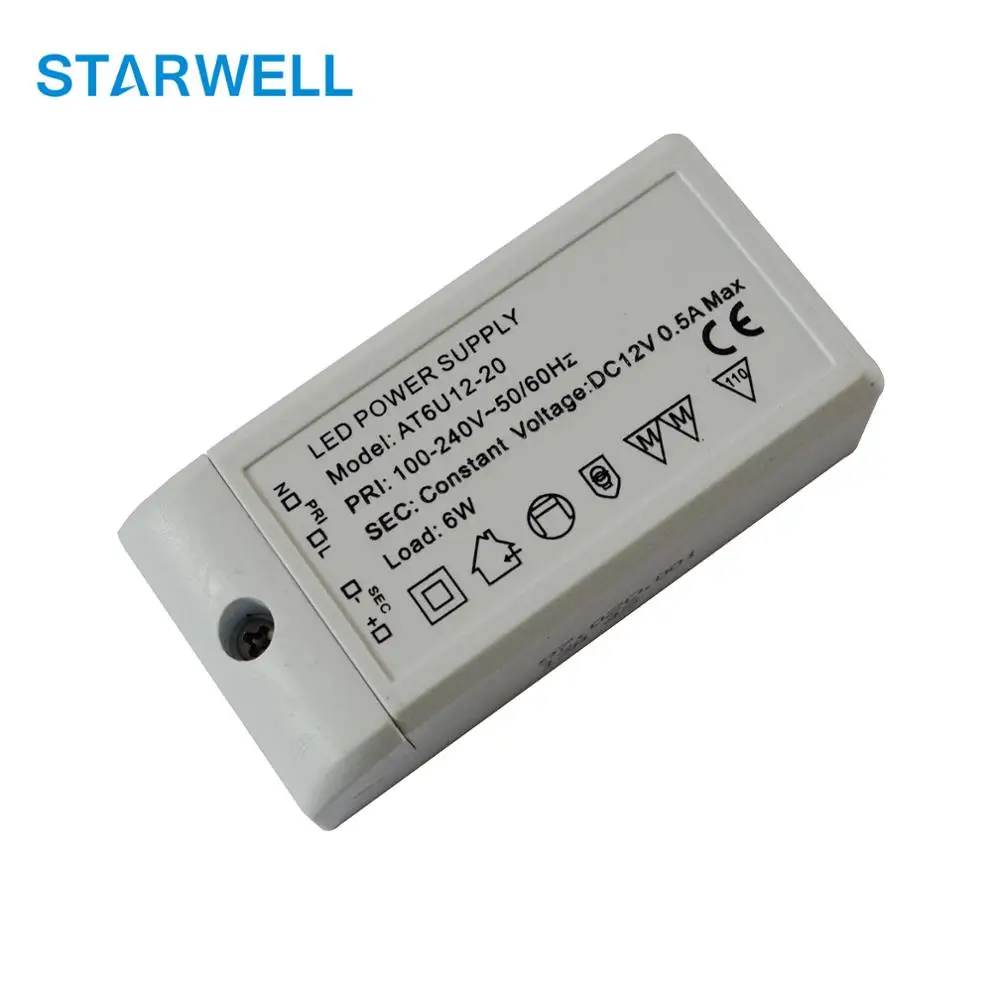

AT24U12-02 24W external led driver with 12V CV output for led strips
Photos
Led Driver
Product Description
Led Driver
input voltage: | 90-264VAC/50HZ |
output current: | 2A (can adjust automaticly ) |
output voltage: | 12V |
output power: | 24w |
power factor: | ≥0.95 full load |
effeciency: | >85% |
drive mode: | Isolation led driver |
Technology: | high PFC,constant current, led dirver |
current accuracy: | 350mA ≤±3%(can do customized ) |
Temperature rise: | 10~15 degree |
certificate: | CE,ROHS,GS,UL |
protection: | overload protection ,short circuit protection,over current ,over voltage protection , over temperature protection , can recovery when remove |
working temperature: | 30°~ +60°C |
storage temperature: | 40°~ +85°C |
Hnmidity: | 5% ~ 95%RH |
Cooling method: | Nature cool |
vibration resistance: | 5 ~ 55HZ/2g 30 mins |
impact resistance: | 1g/S |
MTBF | 50,000 hours with full load condition |
Safty: | EN55015/ CLASS B , *EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-3-2 , IEC/ EN60968-1:2004+A1:2006 , IEC/EN60968-2-1:1989, led driver standard |
Model list
Constant Voltage Led Driver
| Constant Voltage LED Driver | |||||
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |
| SW-AT5U12-09 | 5W | 100~240Vac | 12V CV | 420mA max | |
| Efficiency> 85% | PF> 0.6 | Dimension:: | 40*27*22 mm | CE, ROHS | |
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |
| SW-AT3W250-12 | 3W | 100~240Vac | 12V CV | 250mA max | |
| SW-AT5W400-12 | 5W | 12V CV | 420mA max | ||
| Efficiency> 85% | PF> 0.6 | Dimension:: | 40*28*22 mm | CE, TUV, ROHS | |
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |
| SW-AT9U12-41 | 12W | 100~240Vac | 12V CV | 750mA max | |
| SW-AT12U12-41 | 12W | 12V CV | 1000mA max | ||
| Efficiency> 85% | PF> 0.6 | Dimension:: | 60*37*22 mm | CE, ROHS | |
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |
| SW-AT12U12-15 | 12W | 100~240Vac | 12V CV | 1000mA max | |
| Efficiency> 85% | PF> 0.6 | Dimension:: | 95*45*28 mm | CE, ROHS | |
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |

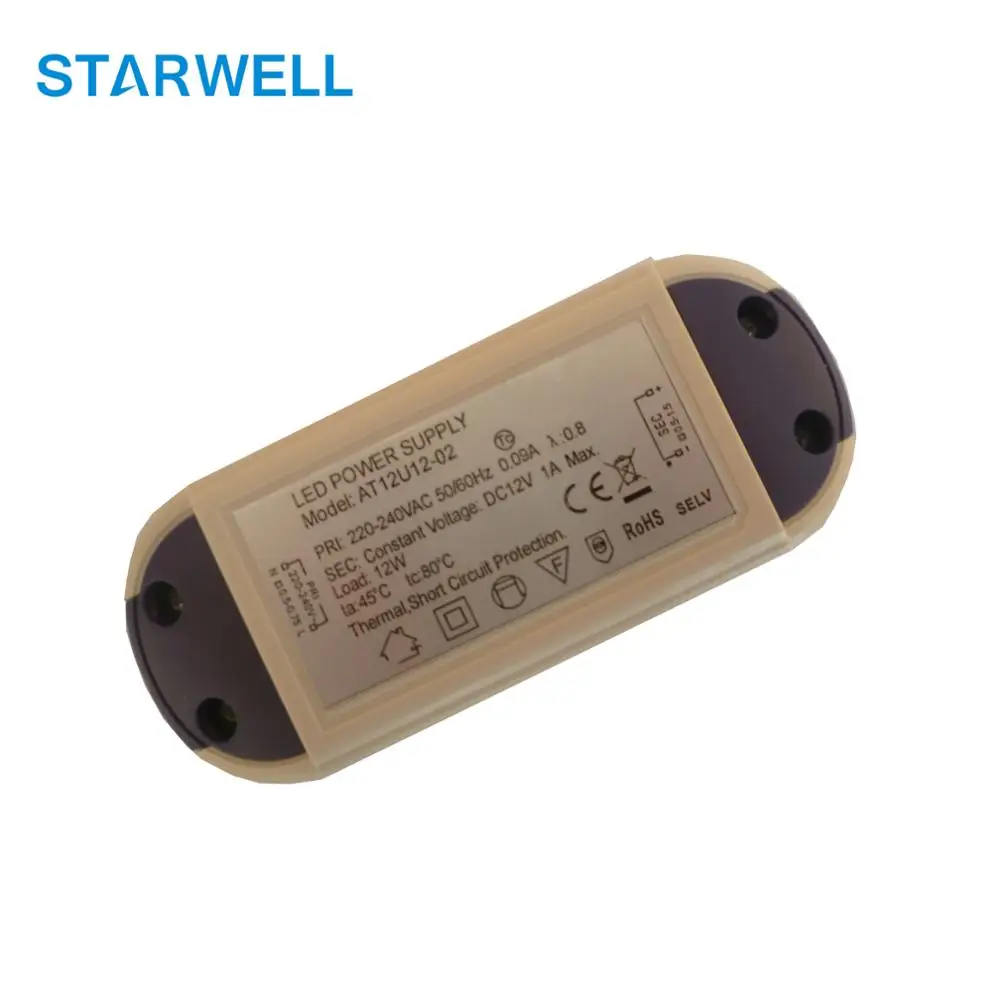

| SW-AT12U12-02 | 12W | 100~240Vac | 12V CV | 1000mA max | |
| SW-AT12U24-02 | 24V CV | 500mA max | |||

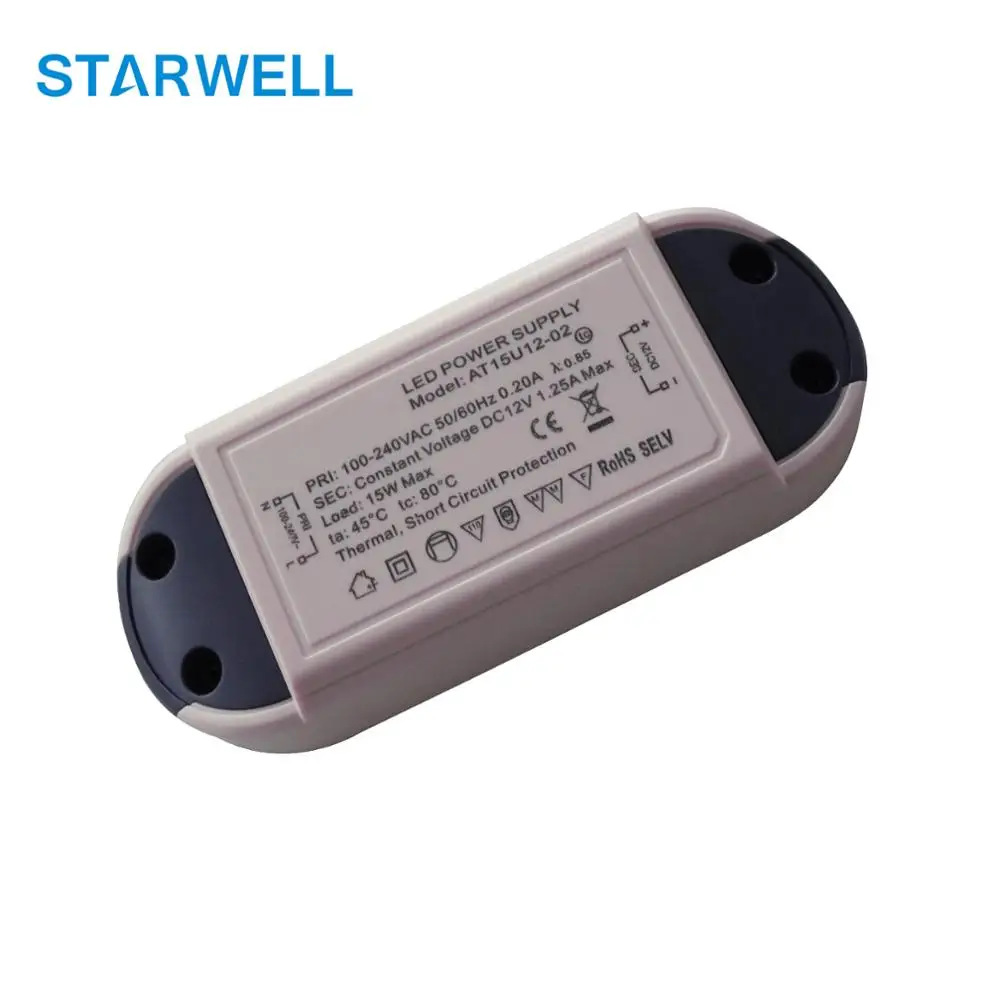

| SW-AT15U12-02 | 15W | 12V CV | 1250mA max | ||
| SW-AT15U24-02 | 24V CV | 630mA max | |||
| SW-AT18U12-02 | 18W | 12V CV | 1500mA max | ||
| SW-AT18U24-02 | 24 CV | 750mA max | |||
| SW-AT24U12-02 | 24W | 12V CV | 2000mA max | ||
| SW-AT24U24-02 | 24V CV | 1000mA max | |||
| Efficiency> 85% | PF> 0.95 | Dimension:: | 115*45*28mm | CE, ROHS | |
| Model | Power(W) | Input Voltage | Output Voltage | Output Current | LED Qty |
| SW-AT30U12-01 | 30W | 100~240Vac | 12V CV | 2500mA max | |
| SW-AT30U24-01 | 24V CV | 1250mA max | |||
| SW-AT36U12-01 | 36W | 12V CV | 3.0A max | ||
| SW-AT36U24-01 | 24 CV | 1.5A max | |||
| SW-AT39U12-01 | 36W | 12V CV | 3.25A max | ||
| SW-AT39U24-01 | 24 CV | 1.6A max | |||
| Efficiency> 85% | PF> 0.95 | Dimension:: | 140*45*28mm | CE, ROHS | |
Company File
Certifications
Payment and Shipping
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer which has 8 years expearance in power supply/power adapter/ charger field.
2. Is your product in full current and full power ?
Yes, we will not do non-full current and non-full power product to customers.
3. Is your products safety ?
Yes. first our matterials are new and fireproof . besides, our products are approved by international certificates CE ROHS UL FCC TUV GS PSE KC CB BSMI...
4. What is your MOQ?
500pcs
5. What is your product warranty policy?
One year
6. What is the delivery time ?
For sample order , 2-3 workingdays after confirm
For bulk order , generally speaking is 7-15 workingdays after confirm , detailed delivery time bases on your order quantity
7. What service could you offer ?
OEM ODM are welcome
8. What is your payment method and trade term ?
By TT , Paypal , Western Union
For bulk order, 30% as deposit, 70% pay off before shipment
