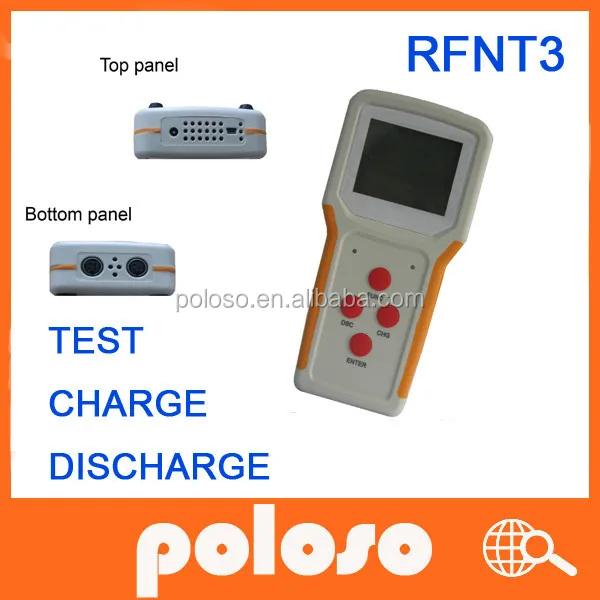

RFNT3 laptop battery tester and analyzer, Universal test machine for laptop/notebook

Product Overview

Description

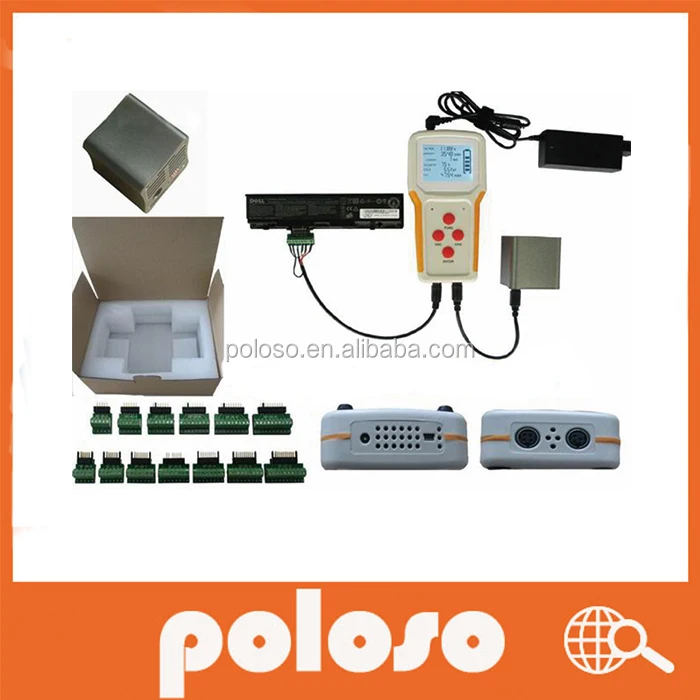

Universal external laptop battery tester

LCD display

Function: test, charge,discharge,50% cha&disc, intelligent protection



Function:

*Charge:Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.

*Discharge:Constant current discharge for double loads.

*Test:Testing time is 30 seconds and the purpose is to check both the charging and discharging performances.

*Capacity Correction: The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. It will affect the use of the battery when the difference reaches a certain degree. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.

*50% Capacity:

CD50%: charge firstly, and then discharge to 50% capacity

DC50%: discharge firstly, and then charge to 50% capacity

*Online Functions:Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.

*Monitoring:Battery information can be monitored via three windows.

*Control:Battery Manager can control slave machine completely. Right-click menu on the battery bar includes the related commands.

*Parameters:Users can set working parameters via set parameter window in Battery Manager.



Features:

*With one channel, supporting one intelligent battery

*Supporting charge, discharge, test, capacity correction, charge / discharge 50% capacity

*LCD for displaying battery informaiton

*LED for indicating working status

*With charge-key, discharge-key, backlight-key and function-key

*Pre-charge, fast charge and constant voltage charge for charging stages and the variation range of the values of the constant current and the constant voltage is less than 1%

*Constant current for discharging

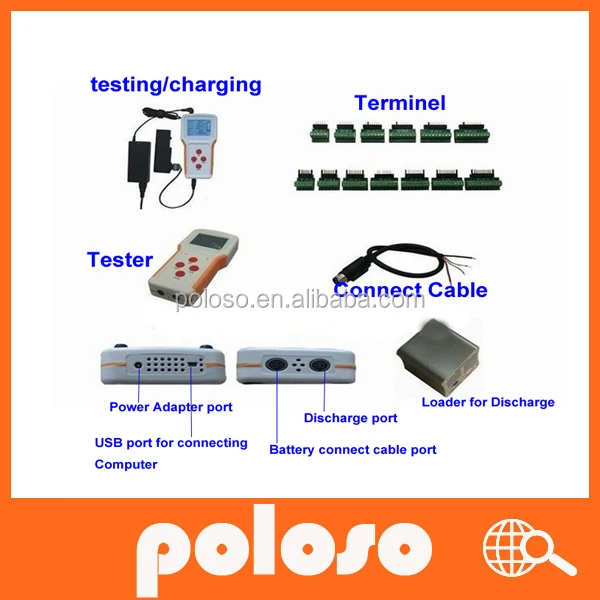

*With a USB port for connecting with computers, master machine can monitoring and control slave machine



Basic Parameters

*Dimensions: 201 x 99 x 35 mm

*Weight: 333g

*Adapter

  Input: AC 100 ~ 240 V

  Output: DC 24V  2.65A

*Display mode

  Segment LCD with white backlight + LED in red and green

*Discharging mode

  Constant current discharge for double loads, inner load & external load

  Maximum discharging current: 3A

*Charging mode

  Constant current  + constant voltage. Active charge and pre-charge are available according to different battery voltage.



Load:use for Discharge

Work status:discharge

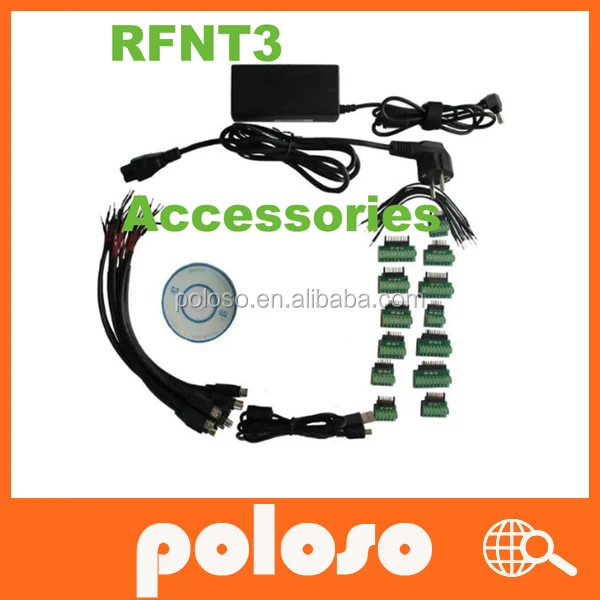

All  accessories

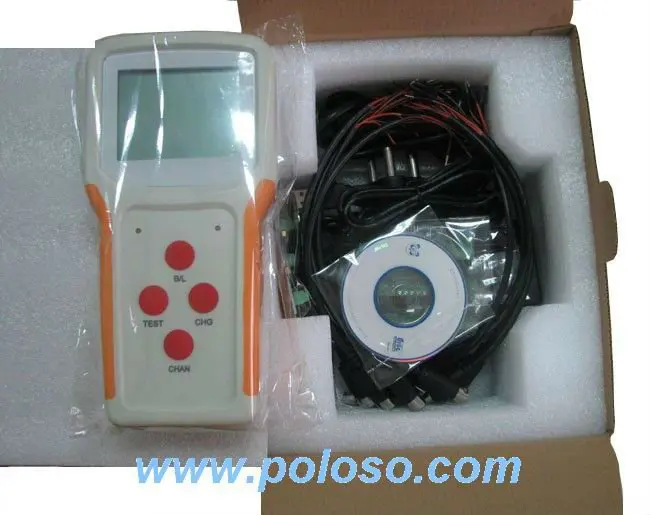

Package
