Nano Polymer free Sirolimus eluting Coronary Stent System

Product Overview

Description

Efficacy of DES, Safety of BMS

1. The efficacy of DES

Nano+^TM stent, in which is used the effective and widely applied Sirolimus, with drug-coating and special technical post-treatment, would guarantee high drug loading density and ideal drug release kinetics.

At the surface of Nano, nanoporous cavity as drug carrier

Smaller cavity has stronger adhesion of drug.

More than 80% surface porosity guarantees firm adhesion.

Nanoporous cavity does not affect the macroscopic properties of Stent.

The high effective drug loading dosage of Nano ^TM polymer-free stent:2.2 μg/mm²



2. The safety of BMS

Nano+ ^TM stent adopts the Polymer-free drug-loading technology. Only bare metal stents is left after the complete release of drug. There is no polymer coating that could cause inflammatory response. Nano+ ^TM stent improves the adhesion, extension and proliferation of endothelial cells, and facilitates complete healing of vessel intima



3. A newer and more advanced balloon delivery system

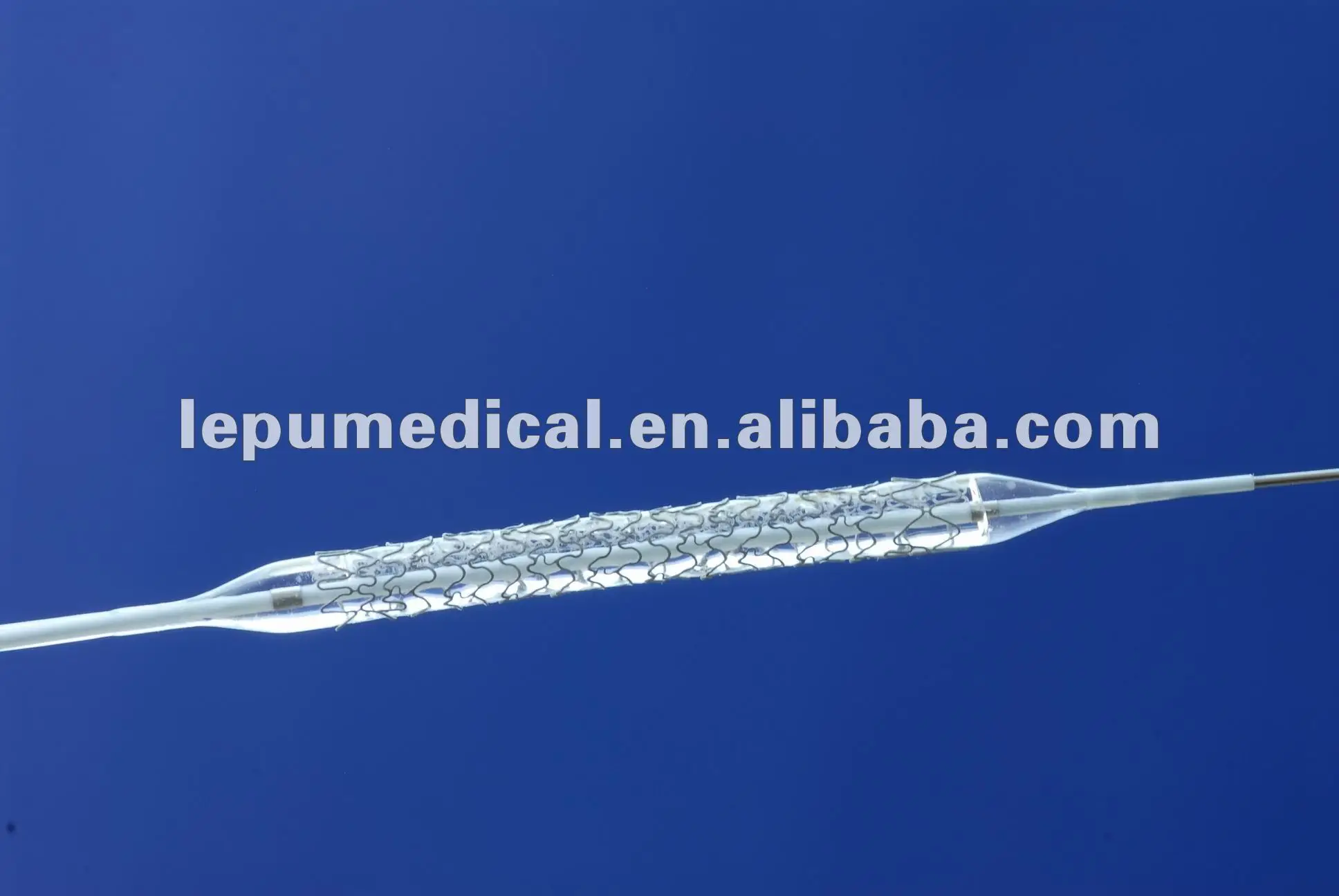

Small tapered tip design, patented hydrophilic coating on the shaft provides excellent deliverability over the torturous anatomy.

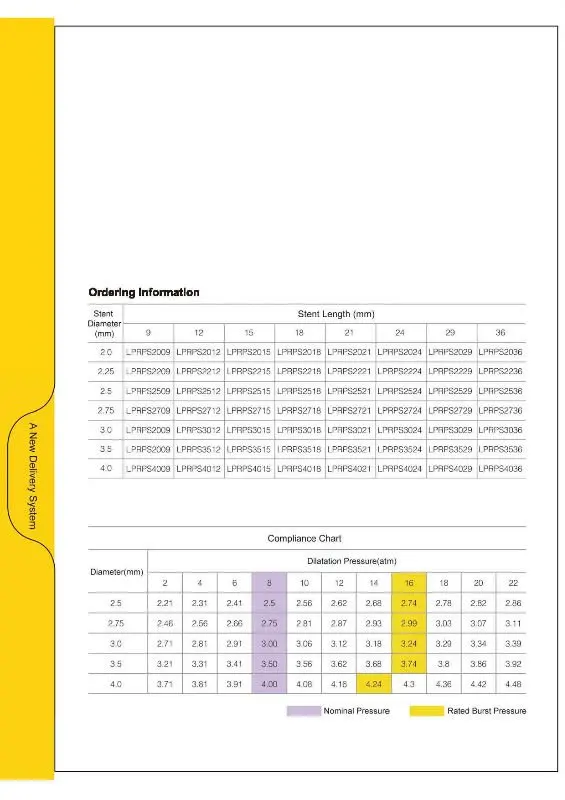

Ordering Information

Stent Diameter(mm)		Stent Length (mm)
	9	12	15	18	21	24	29	36
2.0	LPRPS2009	LPRPS2012	LPRPS2015	LPRPS2018	LPRPS2021	LPRPS2024	LPRPS2029	LPRPS2036
2.25	LPRPS2209	LPRPS2212	LPRPS2215	LPRPS2218	LPRPS2221	LPRPS2224	LPRPS2229	LPRPS2236
2.5	LPRPS2509	LPRPS2512	LPRPS2515	LPRPS2518	LPRPS2521	LPRPS2524	LPRPS2529	LPRPS2536
2.75	LPRPS2709	LPRPS2712	LPRPS2715	LPRPS2718	LPRPS2721	LPRPS2724	LPRPS2729	LPRPS2736
3.0	LPRPS2009	LPRPS3012	LPRPS3015	LPRPS3018	LPRPS3021	LPRPS3024	LPRPS3029	LPRPS3036
3.5	LPRPS2009	LPRPS3512	LPRPS3515	LPRPS3518	LPRPS3521	LPRPS3524	LPRPS3529	LPRPS3536
4.0	LPRPS4009	LPRPS4012	LPRPS4015	LPRPS4018	LPRPS4021	LPRPS4024	LPRPS4029	LPRPS4036
