Laboratory Small Electronic Furnace/oven for Heating Treatment

Product Overview

Description

Laboratory Small Electronic Furnace/oven for Heating Treatment

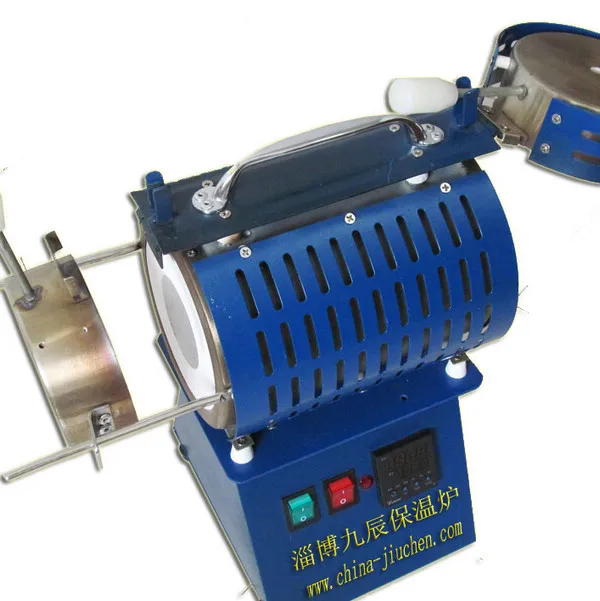

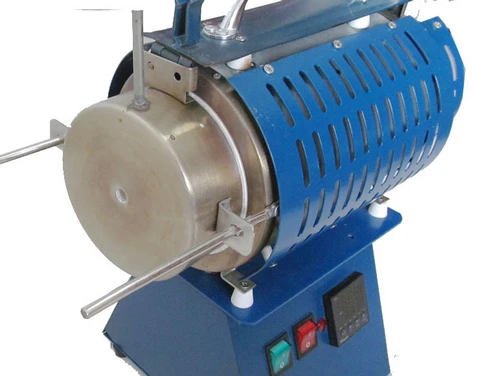

JIUCHEN Horizontal Furnace Model JC-H-220-1 adopts horizontal-type structure,open at both ends as well as one end as per customer requirement.User can insert test tube,silica tube into the furnace chamber.This model is small size, easy to carry,which has settled the problem that test sample can not take out from vertical-type furnace after its heat.



This model Heat treatment Furnace apply for workpiece, test sample heat experiment in laboratory.

Heat Treatment Furnace Technical Parameter

Classification	H Models
Model	JC-H-220-1	JC-H-220-2
Working Voltage	AC 220V~240V, 50/60 HZ	AC 220V~240V 50/60HZ
Power	1200W	2000W
Working Temperature	0C to 1150C	0C to 1150C
Available Heat Section	160mm	160mm
Heating Rate (Heat up to 1100C)	15 Minutes	10 Minutes
Furnace body Size without furnace cover	Ø63*200mm	Ø63*200mm
Application	laboratory test sample thermal conduction Heat treatment experiement, liquid, reagent hydronic heating experiement that needs equips with test tube or silica tube.
Optional Fitting parts	Tray that assist take out convenient the heating test sample



Heat Treatment Furnace Features

1.JIUCHEN   Horizontal furnace chamber adopts advanced composite material, which extends effectively the furance working life .

The furance chamber with advanced composite material, has gone through heat shock experiment that the chamber heats up to 1300C then immediately put into 15 degrees centigrade cold water, with the test result of no cracking,no distortion,

heating wire with iron-chromium-nickel alloy, laboratory imiting temperature can up to 1600C ,it can be guaranteed by long-period steady working under 1200°C.

2.This furnace has small size with 180x215x395mm ,light weight with Net.Weight 12kg,easy to operation,User can freely insert test tube,silica tube into the furnace chamber. which has settled the problem that test sample can not take out from vertical-type furnace after its heat.



Heat Treatment Furnace Notice

1. Horizontal Furnace can not use for metal melting,if melt,please choose vertical furnace.

2.When open the cover, user must open it from the front,that is to say face Directly ahead of the furnace,do not open the cover Directly face toward the cover.

3.During the operating process,user must wear the safety glove expect setting temperature and controling the switches.

4.Strictly prohibit putting inflammable and explosive material into chamber.

  If there is liquid flow into chamber, cutting off the power immediately,wait for the temperature heats up to room temperature,then take out the sundries.

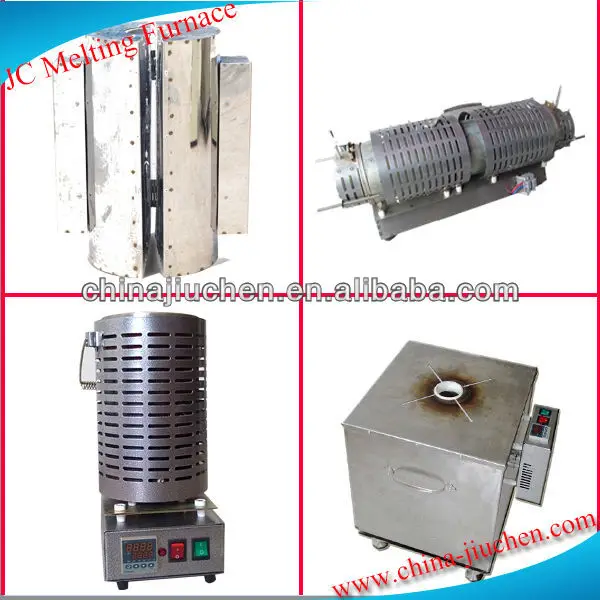

JIUCHEN Customized Furnace
